CX-WC Series Barrier Free Restroom Control Kits

Camden offers an industry-leading range of packages designed specifically for the control of automatic doors in restroom applications. These kits feature a number of innovative and exclusive products that are not available elsewhere, including the CM-AF500 single gang annunciator (providing 'OWL' signage that is not legible when unit is not lit) CX-33 advanced logic relay (providing exclusive operation modes for restroom control) and Aura™ illuminated push plate switches (that combine 'OWL' annunciation and door activation in one product).

New For 2020 - Camden Barrier Free Restroom Control Kits now include CX-33PS controller and 2 Amp. power supply cabinet and CX-ED2079 electric strikes - providing everything you need with one model number!

Features

  • Complete equipment packages, including all control, activation and locking devices, needed to meet emerging code requirements for universal & barrier free restrooms
  • Innovative products not available from any other manufactuer, including:
    CX-33PS Controller & 2 Amp Power Supply Cabinet
    AURA™ illuminated push plate enclosures and signs
    CM-AF501SO LED illuminated annunciator with sounder
    CM-AF141SO
  • The widest range of design options for one and two door restooms
  • Everything you need in one package, including controller, activation switches, annunciation and door contact
  • 3 year product warranty


See More


Specifications

Specifications
Current Draw:RESTROOM CONTROL KITS
(Control, activation and annunciation, not including electrified locking devices)
CX-WC11: 360 mA
CX-WC13: 540 mA
CX-WC14: 830 mA
CX-WC16: 460 mA
Models
ModelDescription
Barrier Free Components - Controllers
CX-33PS

Advanced Logic Control Relay & Power Supply Cabinet

CX-EMF2

Multi-Function Relay Controller

Barrier Free Components - Activation Devices

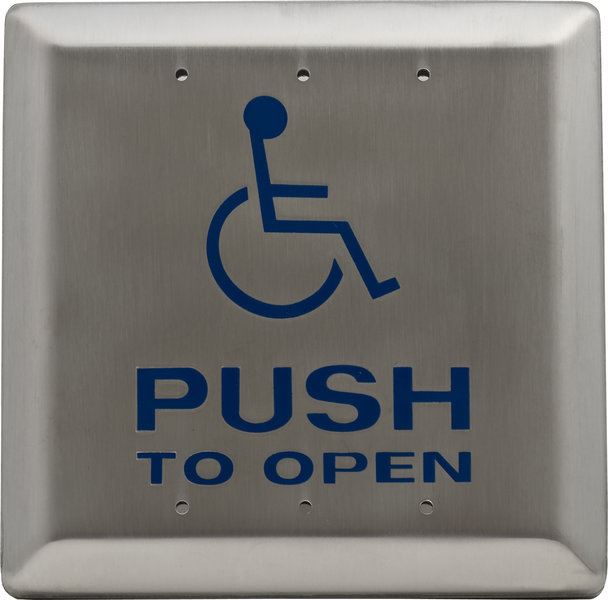

CM-45/4

4-1/2" Push Plate Switch, Wheelchair & Push to Open Text

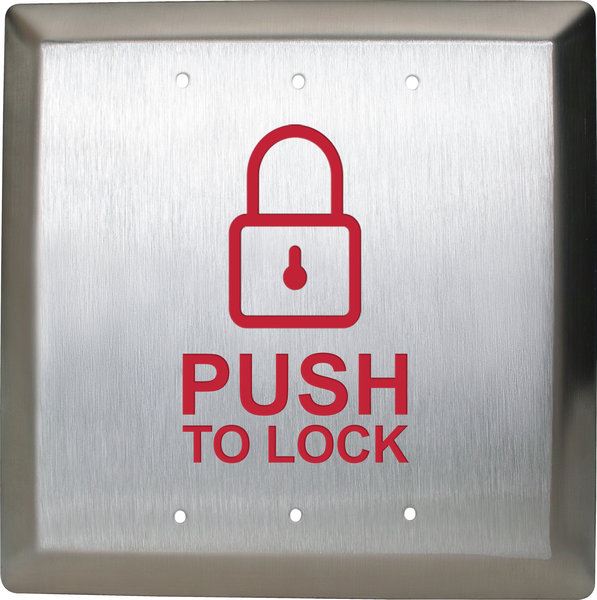

CM-45/8B

4-1/2" Push Plate Switch, 'Push to Lock' Icon and text

CM-2520/48

Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock'

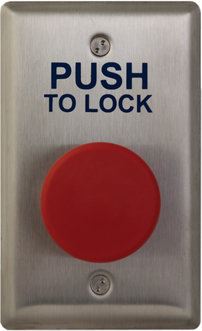

CM-400R/8

1-5/8" Mushroom Push Button, 'Push to Lock' text

Barrier Free Components - Annunciation

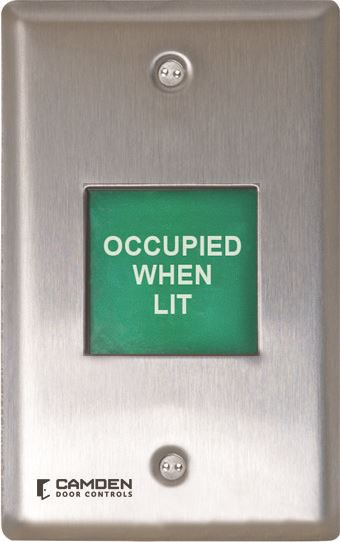

CM-AF500

Single Gang LED 'Occupied When Lit' Indicator

Barrier Free Components - Combined Activation & Annunciation
CM-AF550R

Double Gang Mushroom 'Push to Lock' & LED Annunciator

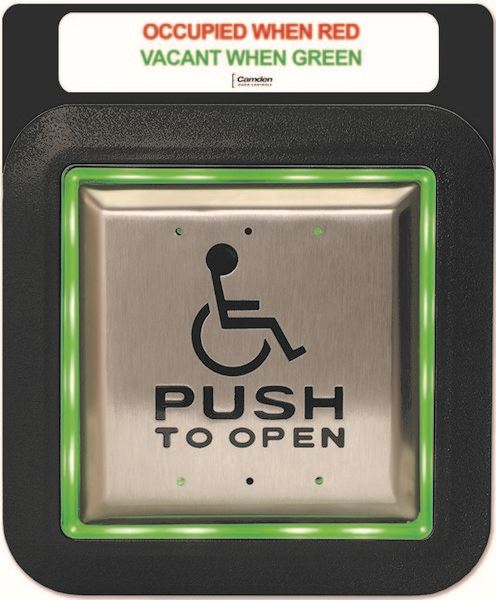

CM-45/455SE1

4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign

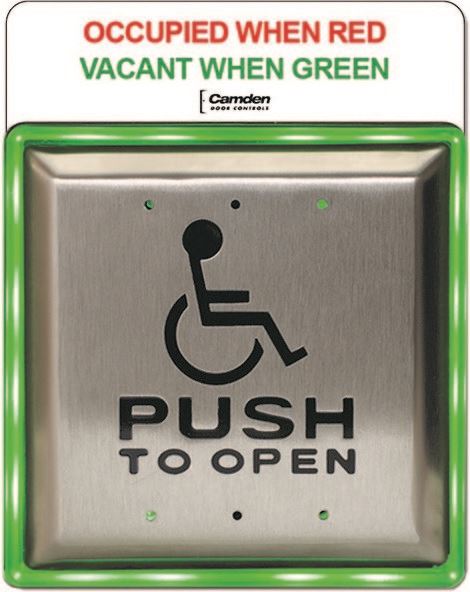

CM-45/454SE1

4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign

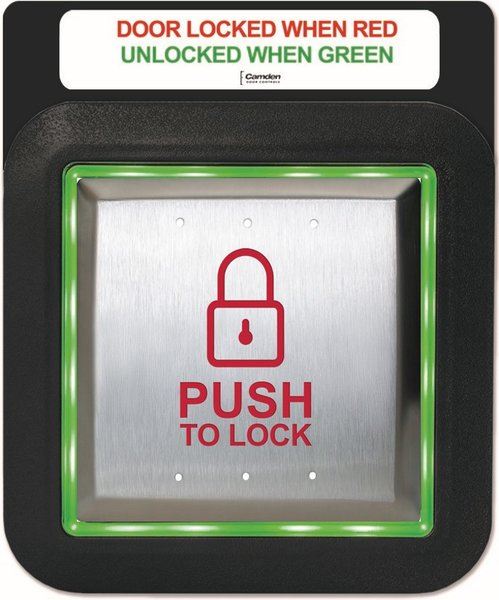

CM-45/8B55SE1

4-1/2" Push Plate Switch, Icon & Push to Lock, with Flush AURA(tm) Illuminated Enclosure and Sign

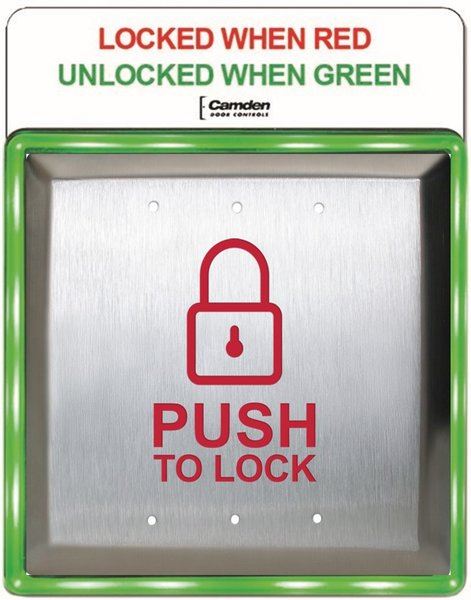

CM-45/8B54SE1

4-1/2" Push Plate Switch, Icon & Push to Lock, with Surface AURA(tm) Illuminated Enclosure and Sign

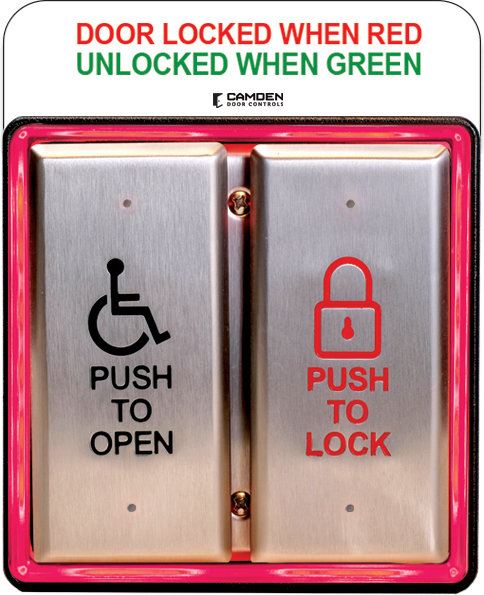

CM-2520/4855SE1

Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign

CM-2520/4854SE1

Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign

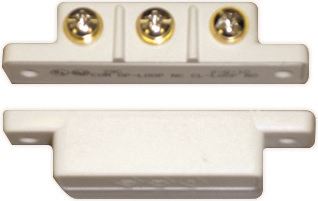

Magnetic Contacts
CX-MDA

Magnetic contact, surface, SPST, white 15/16" (23mm) gap

CX-MDC

Magnetic contact, surface, SPDT, white 1" (25mm) gap

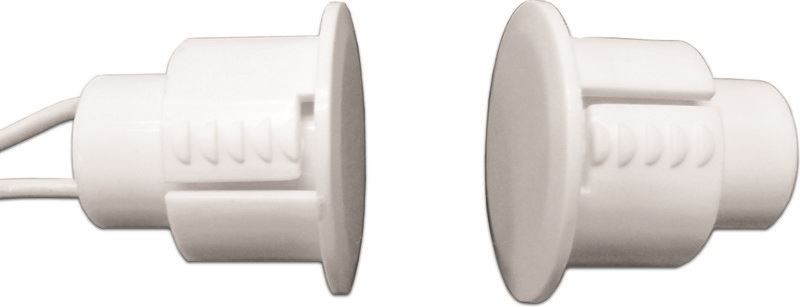

CX-MDH

Magnetic contact, recessed, SPST, white 1-1/16" (27mm) gap
