CX-1000/77 MaxiMinder Adjustable Timer

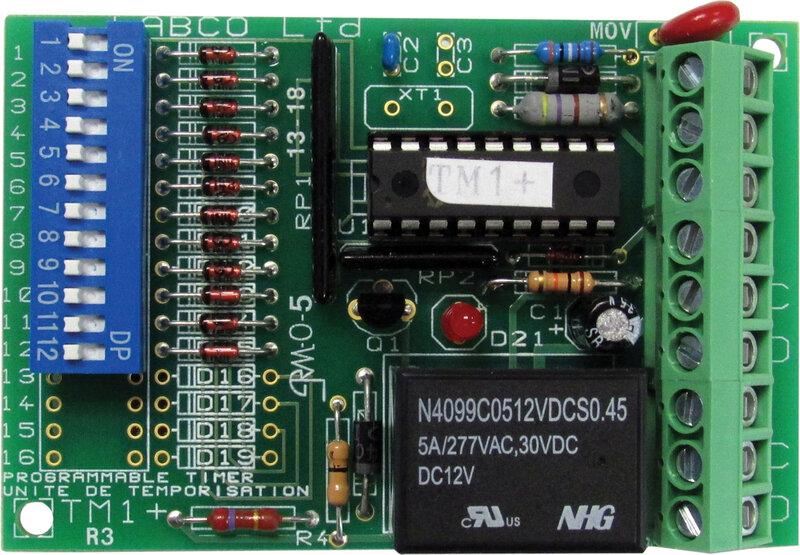

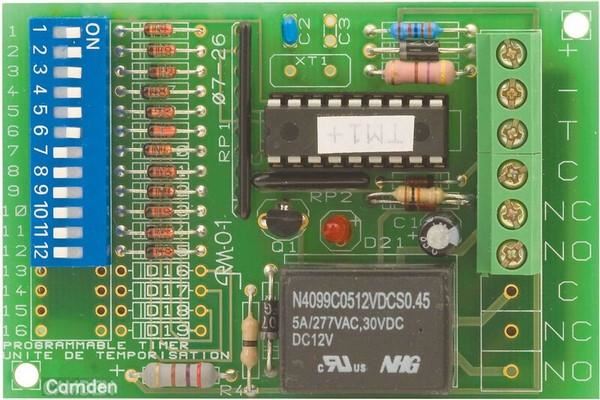

Camden's CX-1000/77 MaxiMinder(tm) is a high precision circuit board extended timer for adjustable time control from 1 second to 4 hours. Programming is easy with dip-switch settings and is selectable for fail secure and fail safe operation.

Applications: Ideal for extended timing functions, such as sauna, hot tub or control of electrified locks where more than 30 seconds is demanded but the application does not require the use of a 7 day programmable timer.

FEATURES

  • Adjustable delay from 1 second to 4 hours
  • Dipswitch programming for accuracy
  • Normal/fail safe output
  • SPDT contacts with LED
  • 12-24 VDC
  • SPDT contacts rated 5 amps @ 24 VDC
  • Dimensions: 2" x 3"


See More


Specifications

SPECIFICATIONS
Voltage:12/24 VDC
Current Draw:12 mA Idle, 60 mA Operating
Response Time:.03 Seconds
Input:N/O Dry Contact
Output:2 x Form C (DPDT)
Contact Rating:5 A @ 24 VDC
Electrical Life:100,000 @ Rated Capacity
Time Delay:1 Second to 4 Hours
Dimensions:2"H x 3"W x 3/4"D (76mm x 51mm x 19mm)
Mounting:Double Sided Foam Tape
MODELS

Model

Description

CX-1000/77

MaxiMinder

Dimensions: 9"L x 5"W x 1.5"H

Weight: 0.12lbs.

UPC:670454150073

Country of Origin:Canada
