Camden Door Controls -CX-ED1309 'Universal' Electric Strike for Narrow Stile Aluminum Door Frames

Camden CX-ED1309 Series grade 1 ANSI electric strikes feature 'universal' field selection of 12/24V, AC or DC and fail safe or fail secure operation. They are specifically designed for narrow stile aluminum door frames, typically used for store front retail doors.

Category: 087100 | door hardware | electric strikes...

MasterFormat: Doors and Frames | Hardware | Door Hardware

View Product Details From Manufacturer

Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

CX-ED1309 'Universal' Electric Strike for Narrow Stile Aluminum Door Frames

CX-ED1309 electric strike body can be purchased with a separate ANSI square, ANSI round, hollow metal or wood door face plate, with either a brushed aluminum finish or dark bronze finish.

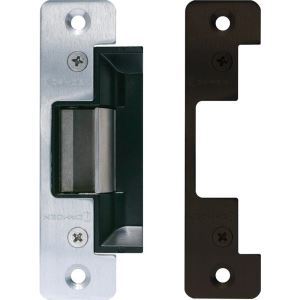

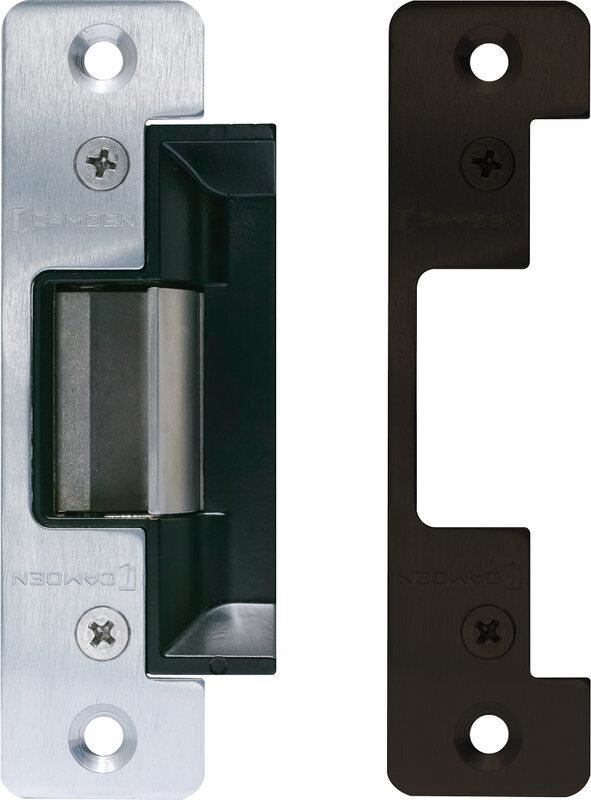

CX-ED1379 packages the strike body with (2) ANSI round face plates, one with brushed aluminum finish and one with dark bronze finish.

Aluminum and dark bronze radius face plates for ANSI and hollow metal doors now in stock!

FEATURES

For cylindrical locksets and spring latches
Selectable Fail Safe/Fail Secure
Selectable 12/24V, AC/DC
1/2” to 5/8” latch projection
Easy fit connectors
A range of aluminum and dark bronze face plates
5 year warranty

See More

See Less

Specifications

SPECIFICATIONS

Voltage:	12/24V AC/DC
Current Draw:	260mA @ 12V DC, 150mA @ 24V DC
Face Plates:	CX-ED1379: Brushed aluminum (BHMA 628) & Dark bronze (BHMA 710)
Static Strength:	1,500 Lbs.
Dynamic Strength:	70 Ft-Lbs.
Endurance:	1,000,000 Cycles (Factory Test), 250,000 Cycles (UL Verified)
Operation:	AC-Buzz, DC-Silent
Duty:	Continuous
Dimensions (Body):	4-7/8" H x 1-11/16" W x 1-5/8" D, (124mm x 43mm x 42mm)

MODELS

Electric Strike with Face Plate
	CX-ED1379	Electric Strike with (1) CX-ESF-2 and (1) CX-ESF-2BZ ANSI round face plate Dimensions: 10"L x 2"W x 1.78"H Weight: 1.25lbs. UPC:670454201713 Country of Origin:China
Electric Strike, Body Only
	CX-ED1309	Electric Strike Body Only, Order Face Plate Separately Dimensions: 10"L x 2"W x 1.78"H Weight: 0.85lbs. UPC:670454201720 Country of Origin:China
Face Plates - Brushed Aluminum Finish (BHMA 628)
	CX-ESF-1	ANSI Square Face Plate for CX-ED1309, brushed aluminum finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454201737 Country of Origin:China

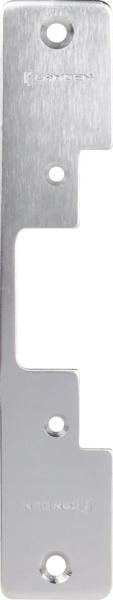

	CX-ESF-2	ANSI Round Face Plate for CX-ED1309, brushed aluminum finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454201744 Country of Origin:China
	CX-ESF-2BR	Radius ANSI Round Face plate for CX-ED1309,, brushed aluminum finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454202376 Country of Origin:China
	CX-ESF-3	Hollow Metal Frame Face Plate for CX-ED1309, brushed aluminum finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454201751 Country of Origin:China
	CX-ESF-3BR	Radius Hollow Metal. Face plate for CX-ED1309,, brushed aluminum finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454202383 Country of Origin:China
	CX-ESF-4	Wood Frame Face Plate for CX-ED1309, brushed aluminum finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454201768 Country of Origin:China
Face Plates - Dark Bronze Finish
	CX-ESF-1BZ	ANSI Square Face Plate for CX-ED1309, dark bronze finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454201775 Country of Origin:China
	CX-ESF-2BZ	ANSI Round Face Plate for CX-ED1309, dark bronze finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454201782 Country of Origin:China
	CX-ESF-2BR-BZ	Radius ANSI Round Face plate for CX-ED1309, dark bronze finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454202390 Country of Origin:China
	CX-ESF-3BZ	Hollow Metal Frame Face Plate for CX-ED1309, dark bronze finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454201799 Country of Origin:China
	CX-ESF-3BR-BZ	Radius Hollow Metal. Face plate for CX-ED1309, dark bronze finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454202406 Country of Origin:China
	CX-ESF-4BZ	Wood Frame Face Plate for CX-ED1309, dark bronze finish Dimensions: 6"L x 4"W x 0.25"H Weight: 0.15lbs. UPC:670454201805 Country of Origin:China
Marking Templates
	CX-STR-TMPKIT	Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver Dimensions: 8"L x 4.5"W x 1.5"H Weight: .85lbs. UPC:670454222039 Country of Origin:China
