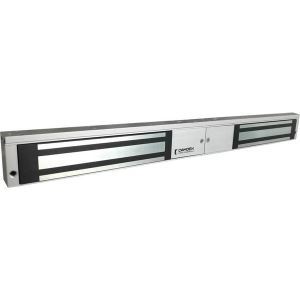

Camden Door Controls -CX-92 Series Double Door Magnetic Locks

DOWNLOADS

Camden CX-92 Series 600 & 1200 lbs. double door magnetic locks offer the best performance and value!

The 'TDS' option provides an adjustable timer, lock sensor, door status switch, relay and LED.

FEATURES

  • 600 and 1,200 Lb.


Category: commercial door hardware | electromagnetic locks | file cabinet locks...

MasterFormat: Hardware | Door Hardware | Access Control Hardware...


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

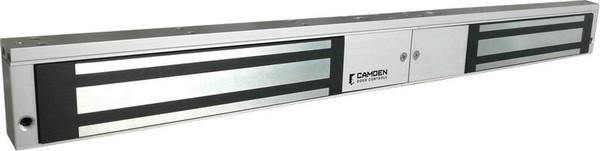

CX-92 Series Double Door Magnetic Locks

Camden CX-92 Series 600 & 1200 lbs. double door magnetic locks offer the best performance and value!

The 'TDS' option provides an adjustable timer, lock sensor, door status switch, relay and LED.

FEATURES

  • 600 and 1,200 Lb. models are UL and ULC listed
  • Weather and vandal resistant constuction proven over thousands of installations
  • Compatible with all access/egress systems
  • Field selectable 12/24 VDC operation
  • On board MOV power surge protection prevents damage to mag lock
  • A wide range of mounting brackets and spacers available
  • Lifetime warranty


See More


Specifications

SPECIFICATIONS
Voltage:12/24 VDC
Current Draw:
CX-92S-06:2 x 480 mA @ 12 VDC
2 x 240 mA @ 24 VDC
CX-92S-12:2 x 420 mA @ 12 VDC
2 x 210 mA @ 24 VDC
Temp Range:32°F to 131°F (0°C to 55°C)
Contact Rating:
CX-92S-12TDS, CX-92S-06TDS:Bond Sensor: 2A @ 24 VDC
Door Status Switch: 0.5A @ 28V AC/DC
Holding Force:
CX-91S-06:600 lbs. (272 kg.)
CX-91S-12:1,200 lbs. (544 kg.)
Dimensions (body):
CX-92S-06:19-3/4" x 1-5/8" x 1-1/8"
(500m x 42mm x 27mm)
CX-92S-12:21" x 2-5/8" x 1-9/16"
(532mm x 67mm x 40mm)
Armature Plate:600 lbs.:
2 x 7-1/4" x 1-1/2" x 15/32"
2 x (185mm x 38mm x 12mm)
1,200 lbs.:
2 x 7-9/32" x 3" x 5/8"
2 x (185mm x 61mm x 16.5mm)
MODELS

1200 lbs.

CX-92S-12

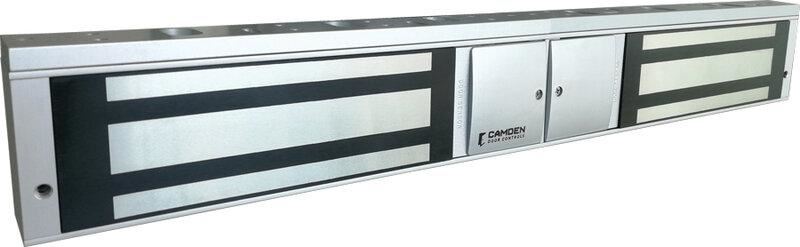

1,200 lbs. Surface mount double door magnetic lock - basic

Dimensions: 3.75"L x 11.5"W x 3.5"H

Weight: 10.88lbs.

UPC:670454170095

Country of Origin:China

CX-92S-12-BK

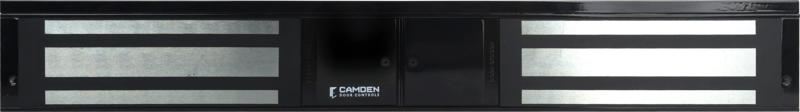

1,200 lbs. Surface mount double door magnetic lock - basic, all-black finish

Dimensions: 3.75"L x 11.5"W x 3.5"H

Weight: 10.75lbs.

UPC:670454220769

Country of Origin:Malaysia

CX-92S-12TDS

1,200 lbs. Surface mount double door magnetic lock - with adjustable timer, door status switch, lock sensor/relay & LED

Dimensions: 3.75"L x 22"W x 3.5"H

Weight: 21.47lbs.

UPC:670454155580

Country of Origin:China

CX-92S-12TDS-BK

1,200 lbs. Surface mount double door magnetic lock - with adjustable timer, door status switch, lock sensor/relay & LED, all-black finish

Dimensions: 3.75"L x 11.5"W x 3.5"H

Weight: 10.75lbs.

UPC:670454220783

Country of Origin:Malaysia

600 lbs.

CX-92S-06

600 lbs. Surface mount double door magnetic lock - basic

Dimensions: 3.5"L x 20.5"W x 2"H

Weight: 9.05lbs.

UPC:670454150370

Country of Origin:China

CX-92S-06-BK

600 lbs. Surface mount double door magnetic lock - basic, all-black finish

Dimensions: 3.5"L x 20.5"W x 2"H

Weight: 9.5lbs.

UPC:670454220745

Country of Origin:Malaysia

CX-92S-06TDS

600 lbs. Surface mount double doors - with adjustable timer, door status switch, lock sensor/relay & LED

Dimensions: 3.5"L x 20.5"W x 2"H

Weight: 9.05lbs.

UPC:670454155597

Country of Origin:China

CX-92S-06TDS-BK

600 lbs. Surface mount double doors - with adjustable timer, door status switch, lock sensor/relay & LED, all-black finish

Dimensions: 3.5"L x 20.5"W x 2"H

Weight: 9.5lbs.

UPC:670454220776

Country of Origin:Malaysia

V1 REPLACEMENT PCB

Replacement PC Boards:

CX-91S-06PCB

For 600 lbs. magnet

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454167019

Country of Origin:China

CX-91S-06TLSPCB

For 600 lbs. magnet, TLS/TDS

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670456206198

Country of Origin:China

CX-91S-12PCB

For 1,200 lbs. Magnetic Locks, V1, (open pin connector)

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454155252

Country of Origin:China

CX-91S-12TLSPCB

For 1,200 lbs. Magnetic Locks, TLS and TDS models

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454155610

Country of Origin:China

CX-91S-12PCBV2

For 1,200 lbs. Magnetic Locks, V2, (locking pin connector)

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454165787

Country of Origin:China
