Basic Control Kits | | |
 | CX-WC10 | Basic Pushbutton System (1) Advanced Logic Relay; (1) Single Gang, N/O contacts; Red button; 'PUSH TO LOCK', black text; (1) Magnetic contact, surface, SPST, white; Add suffix 'F' to model number for French language. Dimensions: 9.25"L x 7.25"W x 5.5"H Weight: 2.35lbs. UPC:670454171009 |

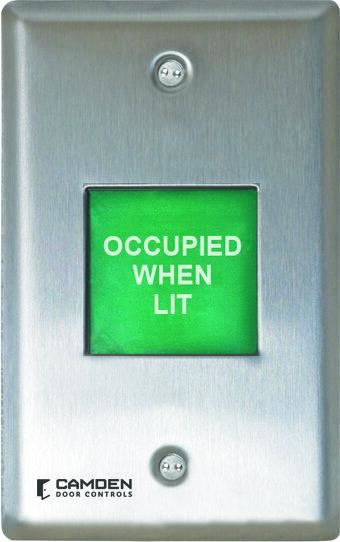

 | CX-WC11ASM-PS | Surface Mount Push Button & Annunciation System (1) (60-40E032) Advanced Logic Control Relay & Power Supply Cabinet; (2) 4-1/2" Push Plate Switch, Wheelchair & Push to Open Text; (2) Surface Box, Shallow depth, black polymer; (1) 1-5/8" Mushroom Push Button, 'Push to Lock' text; (1) Single Gang LED 'Occupied When Lit' Indicator; (2) Surface Box, Standard Depth. Double wall; (1) Magnetic contact, surface, SPST, white; (1) 'Universal' Grade 2 electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment; Add suffix 'F' to model number for French Language. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454202147 |
 | CX-WC11AFM-PS | Flush Mount Push Button & Annunciation System (1) (60-40E032) Advanced Logic Control Relay & Power Supply Cabinet; (2) 4-1/2" Push Plate Switch, Wheelchair & Push to Open Text; (1) 1-5/8" Mushroom Push Button, 'Push to Lock' text; (1) Single Gang LED 'Occupied When Lit' Indicator; (1) Magnetic contact, surface, SPST, white; (1) 'Universal' Grade 2 electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment; Add suffix 'F' to model number for French Language. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454202130 |
Aura™ Illuminated Control Kits | | |

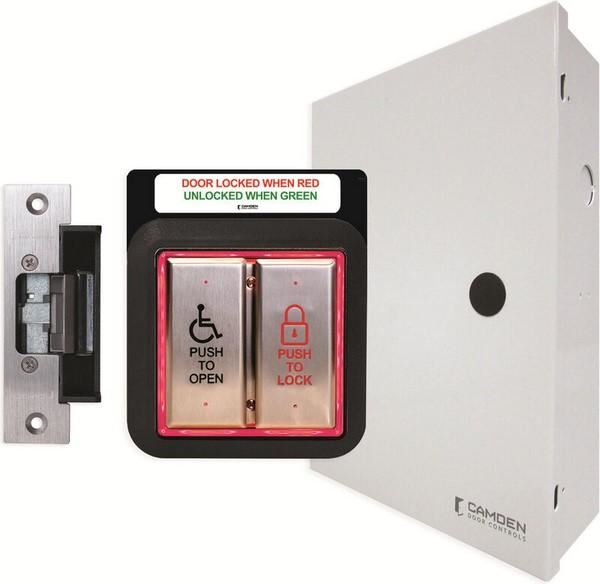

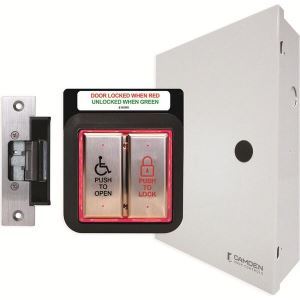

 | CX-WC13AXFM-PS | Flush Mount Combo Illuminated Push Plate System (1) (60-40E033) Advanced Logic Control Relay & Power Supply Cabinet; (1) Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign; (1) 4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign; (1) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment; (1) Magnetic contact, surface, SPST, white; Add suffix 'F' to model number for French Language. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454202154 |
 | CX-WC13AXFM-PSF | Flush Mount Combo Illuminated Push Plate System FRENCH (1) Advanced Logic Control Relay & Power Supply Cabinet; (1) Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign FRENCH; (1) 4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign FRENCH; (1) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B); (1) Magnetic contact, surface, SPST, white. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. |
 | CX-WC13AXFM-PSFE | Flush Mount Combo Illuminated Push Plate System FRENCH ENGLISH (1) Advanced Logic Control Relay & Power Supply Cabinet; (1) Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign - FRENCH ENGLISH; (1) 4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign; (1) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B); (1) Magnetic contact, surface, SPST, white. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. |
 | CX-WC13AXSM-PS | Surface Mount Combo Illuminated Push Plate System (1) (60-40E033) Advanced Logic Control Relay & Power Supply Cabinet; (1) Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign; (1) 4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign; (1) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment; (1) Magnetic contact, surface, SPST, white; Add suffix 'F' to model number for French Language. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454202161 |
| CX-WC14AXSM-PS | Surface Mount Two Door Restroom System (1) Door Control and 2 Amp. Power Supply Cabinet; (2) Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Surface AURA(tm) Illuminated Enclosure and Sign; (2) 4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Surface AURA(tm) Illuminated Enclosure and Sign; (2) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B); (2) Magnetic contact, surface, SPST, white; Add suffix 'F' to model number for French Language. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454202185 |
| CX-WC14AXFM-PS | Flush Mount Two Door Restroom System (1) Door Control and 2 Amp. Power Supply Cabinet; (2) Combo Switch, 2" x 4" Narrow 'Push to Open' & 'Push to Lock', Flush AURA(tm) Illuminated Enclosure and Sign; (2) 4-1/2" Push Plate Switch, Wheelchair & Push to Open, with Flush AURA(tm) Illuminated Enclosure and Sign; (2) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B); (2) Magnetic contact, surface, SPST, white; Add suffix 'F' to model number for French Language. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454202178 |
SureWave™ Illuminated Control Kits | | |
 | CX-WC16-PS | Touchless Switch Restroom Kit (1) (60-40E035) Advanced Logic Control Relay & Power Supply Cabinet; (1) Wired touchless switch, 1 relay 'Wave to Lock' w/ stainless steel faceplate and Red/Green/Blue LED illumination; (1) Wired touchless switch, 1 relay, 'Wave to Open' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination 'Wave to Open' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination; (1) Wired 'short range' touchless switch, 1 relay, 'Wave to Open' w/ stainless steel faceplate, non illiuminated , 'Wave to Open' w/ stainless steel faceplate, non illiuminated; (1) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment; (1) Magnetic contact, surface, SPST, white; Add suffix 'F' to model number for French Language. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454202192 |
 | CX-WC16-PSF | Touchless Switch Restroom Kit FRENCH (1) (60-40E035) Advanced Logic Control Relay & Power Supply Cabinet; (1) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment; (1) Magnetic contact, surface, SPST, white; (1) Wired touchless switch, 1 relay /43F 'Agitez Pour Verrouiller' w/ stainless steel faceplate and Red/Green/Blue LED illumination; (1) Wired touchless switch, 1 relay, 'Agitez Pour Ouvrir' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination /42F 'Agitez Pour Ouvrir' w/ double gang stainless steel faceplate and Red/Green/Blue LED illumination; (1) Wired 'short range' touchless switch, 1 relay, 'Agitez Pour Ouvrir' w/ stainless steel faceplate, non illiuminated /42F 'Agitez Pour Ouvrir' w/ stainless steel faceplate, non illiuminated. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. |
Column™ Switch Restroom Control Kits | | |
 | CX-WC17 | Column(tm) Switch Restroom System (1) Advanced Logic Relay; (1) Magnetic contact, surface, SPST, white; (2) Curved, Horizontal LED Illuminated Annunciator with 'Occupied' and 'Locked' Message Labels; (2) 36" Long Column™ push plate switch, 'WHEELCHAIR' symbol and 'PUSH TO OPEN'; 'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue; (1) 36" Long Column™ push plate switch; 'LOCK' symbol and 'PUSH TO LOCK', red graphics. CM-7536 aluminum finish only.. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454173027 |
 | CX-WC17-PS | Column(tm) Switch Restroom Kit (1) (60-40E035) Advanced Logic Control Relay & Power Supply Cabinet; (1) 'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment; (1) Magnetic contact, surface, SPST, white; (2) 36" Long Column™ push plate switch, 'WHEELCHAIR' symbol and 'PUSH TO OPEN'; 'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue; (1) 36" Long Column™ push plate switch; 'LOCK' symbol and 'PUSH TO LOCK', red graphics. CM-7536 aluminum finish only.; (2) Curved, Horizontal LED Illuminated Annunciator with 'Occupied' and 'Locked' Message Labels. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. UPC:670454207869 |
 | CX-WC17VR-PS | Column™ Switch Restroom System Kit with Power Supply & Hands-Free Sensor (2) 36" Hands-Free Column Switch with /4 Graphics; 'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue; (1) 36" Hands-Free Column Switch with /8B Graphics; 'LOCK' symbol and 'PUSH TO LOCK', red graphics. CM-7536 aluminum finish only.; (1) Advanced Logic Control Relay & Power Supply Cabinet; (1) Grade 2 Electric Strike; (1) Magnetic contact, surface, SPST, white; Add suffix 'F' to model number for French Language. Dimensions: 12"L x 9"W x 9"H Weight: 9.75lbs. |
