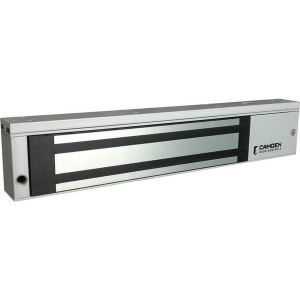

Camden Door Controls -CX-90/91 Series Single Door Magnetic Locks

DOWNLOADS

Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value!

CX-90 Series 300 lbs. mag locks are compact and ideal for securing cabinets, gates and other security applications.

CX-91 Series 600 & 1200 lbs.


Category: commercial door hardware | electromagnetic locks | file cabinet locks...

MasterFormat: Hardware | Door Hardware | Access Control Hardware...


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


CX-90/91 Series Single Door Magnetic Locks

Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value!

CX-90 Series 300 lbs. mag locks are compact and ideal for securing cabinets, gates and other security applications.

CX-91 Series 600 & 1200 lbs. mag locks have a built-in 'TLS' option that provides an adjustable timer, lock sensor, relay and LED. The 'TDS' option includes door status switch.

FEATURES

  • Weather and vandal resistant construction proven over thousands of installations
  • Surface and mortise mount models
  • Compatible with all access/egress systems
  • Field selectable 12/24 VDC operation
  • On board MOV power surge protection prevents damage to the mag lock
  • A range of mounting brackets and spacers available
  • Lifetime warranty


See More


Specifications

SPECIFICATIONS
Holding Force:
CX-91S-06:600 lbs. (272 kg.)
CX-91M-06:600 lbs. (272 kg.)
CX-91S-12TDS:1,200 lbs. (544 kg.)
CX-90 Series:300 lbs. (136 kg.)
Voltage:12/24 VDC
Current Draw:
CX-90 Series:360 mA @ 12 VDC
180 mA @ 24 VDC
CX-91S-06:480 mA @ 12 VDC
240 mA @ 24 VDC
Temp Range:
CX-90 Series, CX-91 Series:32°F to 131°F (0°C to 55°C)
Contact Rating:
CX-91S-12TDS, CX-91M-06TLS, CX-91S-06TDS:Bond Sensor: 2A @ 24 VDC
Door Status Switch: 0.5A @ 28V AC/DC
Time Delay:
CX-91S-12TDS, CX-91M-06TLS, CX-91S-06TDS:5 to 25 seconds
Dimensions:
CX-90S-03:6-1/2" x 1-3/8" x 13/16" (165mm x 35mm x 21mm)
CX-90M-03:8" x 1-3/8" x 13/16" (203mm x 35mm x 21mm)
CX-91S-06:9-7/8" x 1-5/8" x 1-1/8" (250mm x 42mm x 27mm)
CX-91M-06:9" x 1-1/2" x 1-1/8" (229mm x 38mm x 28mm)
CX-91S-12:10-1/2" x 2-5/8" x 1-9/16" (266mm x 67mm x 40mm)
Armature Plate:300 Lbs: 5-1/8" x 1-1/4" x 1/4" (130mm x 32mm x 6mm)
600 Lbs.:7-1/4" x 1-1/2" x 15/32" (185mm x 38mm x 12mm)
1200 Lbs.: 7-9/32" x 2-13/32" x 5/8" (185mm x 61mm x 16.5mm)
MODELS

300 lbs.

CX-90S-03

300 lbs. Surface mount single door - basic

Dimensions: 8.5"L x 3.5"W x 1.5"H

Weight: 2.35lbs.

UPC:670454150295

Country of Origin:China

CX-90M-03

300 lbs. Mortise mount single door - basic

Dimensions: 4.25"L x 11.5"W x 2"H

Weight: 5.04lbs.

UPC:670454150288

Country of Origin:China

600 lbs.

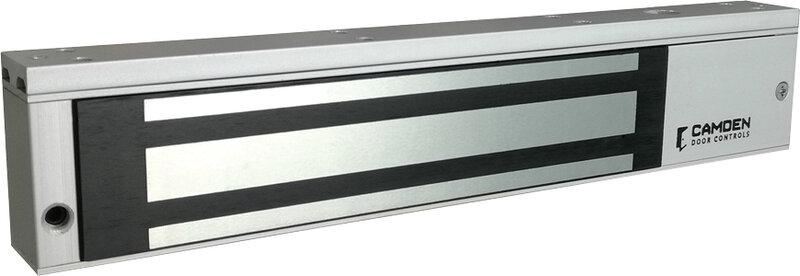

CX-91S-06

600 lbs. Surface mount single door - basic

Dimensions: 4.25"L x 11.5"W x 2"H

Weight: 5lbs.

UPC:670454150325

Country of Origin:China

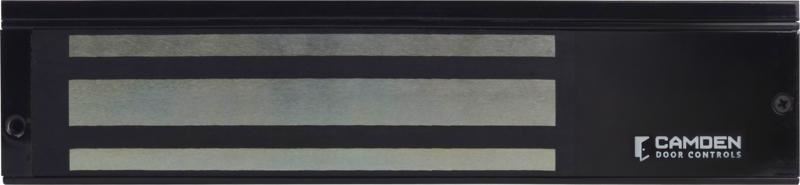

CX-91S-06-BK

600 lbs. Surface mount single door - basic, all-black finish

Dimensions: 4.25"L x 11.5"W x 2"H

Weight: 5lbs.

UPC:670454220691

Country of Origin:Malaysia

CX-91S-06TDS

600 lbs. Surface mount single door - with adjustable timer, door status switch, lock sensor/relay & LED

Dimensions: 4.25"L x 11.5"W x 2"H

Weight: 5lbs.

UPC:670454155603

Country of Origin:China

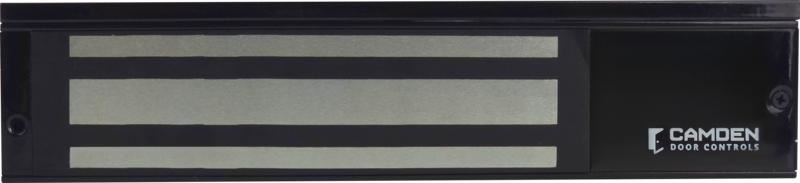

CX-91S-06TDS-BK

600 lbs. Surface mount single door - with adjustable timer, door status switch, lock sensor/relay & LED, all black finish

Dimensions: 4.25"L x 11.5"W x 2"H

Weight: 5lbs.

UPC:670454220721

Country of Origin:Malaysia

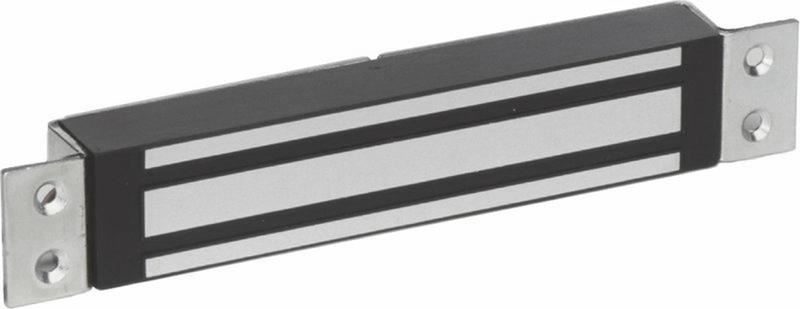

CX-91M-06

600 lbs. Mortise mount single door - basic

Dimensions: 4.25"L x 11.5"W x 2"H

Weight: 5.04lbs.

UPC:670454150301

Country of Origin:China

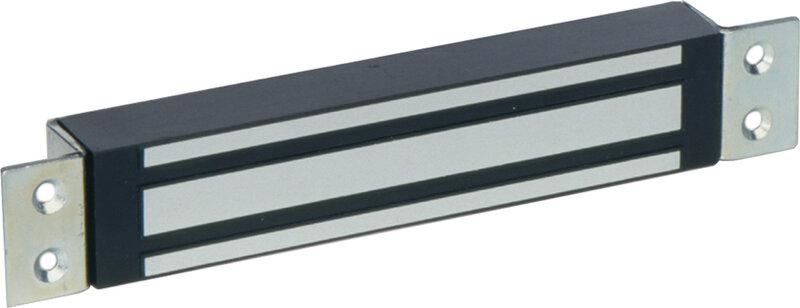

CX-91M-06TLS

600 lbs. Mortise single mount door - with adjustable timer, lock sensor/relay

Dimensions: 4.25"L x 11.5"W x 2"H

Weight: 5.04lbs.

UPC:670454150318

Country of Origin:China

1200 lbs.

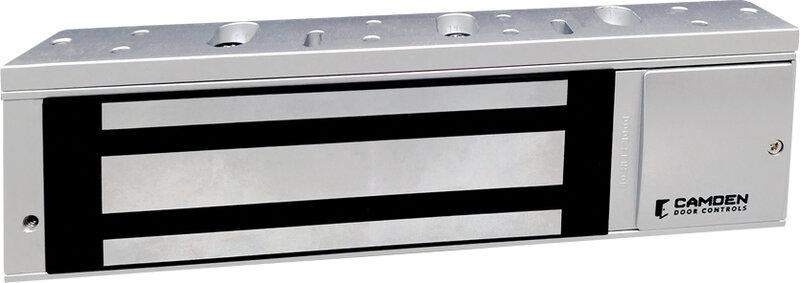

CX-91S-12

1,200 lbs. Surface mount single door - basic

Dimensions: 3.75"L x 11.5"W x 3.5"H

Weight: 10.5lbs.

UPC:670454150349

Country of Origin:China

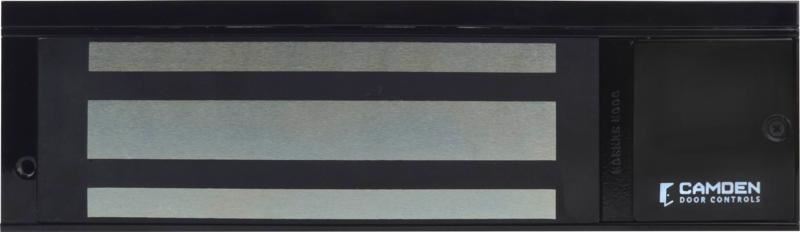

CX-91S-12-BK

1,200 lbs. Surface mount single door - basic, all-black finish

Dimensions: 3.75"L x 11.5"W x 3.5"H

Weight: 10.5lbs.

UPC:670454220707

Country of Origin:Malaysia

CX-91S-12TDS

1,200 lbs. Surface mount single door - with adjustable timer, door status switch, lock sensor/relay & LED

Dimensions: 3.75"L x 11.5"W x 3.5"H

Weight: 10.5lbs.

UPC:670454155047

Country of Origin:China

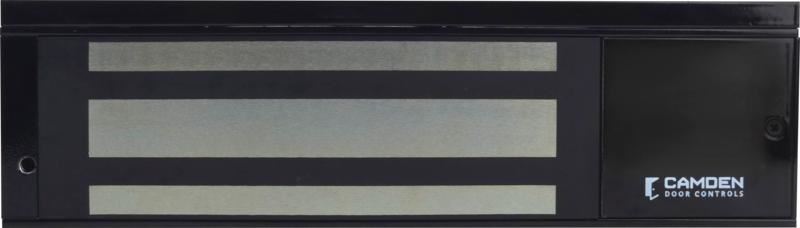

CX-91S-12TDS-BK

1,200 lbs. Surface mount single door - with adjustable timer, door status switch, lock sensor/relay & LED, all-black finish

Dimensions: 3.75"L x 11.5"W x 3.5"H

Weight: 10.5lbs.

UPC:670454220738

Country of Origin:Malaysia

V1 REPLACEMENT PCB

Model

Description

CX-91S-06PCB

For V1 600 lbs. magnet locks, 1-7/8" x 1-7/16" (47.6mm x 36.5mm)

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454167019

Country of Origin:China

CX-91S-06TLSPCB

For V1 600 lbs. magnet locks, TLS/TDS, 1-7/8" x 1-7/16" (47.6mm x 36.5mm)

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454167026

Country of Origin:China

CX-91S-12PCB

For V1 1,200 lbs. magnetic locks, V1 (open pin connector), 2-3/8" x 1-3/4" (60mm x 45mm)

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454155252

Country of Origin:China

CX-91S-12TLSPCB

For V1 1,200 lbs. magnetic locks, TLS and TDS models, 2-3/8" x 1-3/4" (60mm x 45mm)

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454155610

Country of Origin:China

CX-91S-12PCBV2

For V1 1,200 lbs. magnetic locks, Rev 2 of board (locking pin connector), 2-3/8" x 1-3/4" (60mm x 45mm)

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454165787

Country of Origin:China
