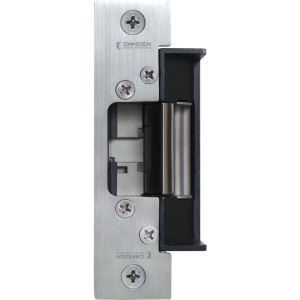

Camden Door Controls -CX-ED1410 'Universal' Gr.1 ANSI Fire Electric Strike

DOWNLOADS

Camden CX-ED1410 standard depth and CX-ED1420 low profile Grade 1 ANSI fire rated strikes are designed to provide affordable code compliance to UL fire rated doors/frames with cylindrical locksets.


Category: 087100 | door hardware | electric strikes...

MasterFormat: Doors and Frames | Hardware | Door Hardware


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

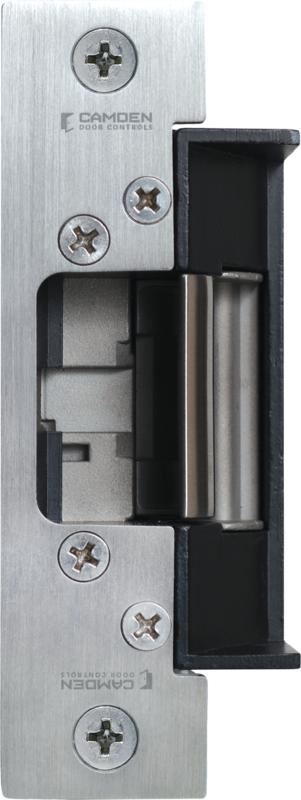

CX-ED1410 'Universal' Gr.1 ANSI Fire Electric Strike

Camden CX-ED1410 standard depth and CX-ED1420 low profile Grade 1 ANSI fire rated strikes are designed to provide affordable code compliance to UL fire rated doors/frames with cylindrical locksets.

These fire rated strikes are designed to deliver unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation.

FEATURES

  • Centerline latch entry for cylindrical locksets, with ANSI square faceplate
  • UL 90 minute fire and UL 1034 burglary listed
  • Dual voltage 12/24V AC/DC
  • ANSI square faceplate included, 4-7/8" x 1-1/4"
    (124mm x 32mm)
  • Field selectable fail safe / fail secure operation
  • Trim plate included
  • 5 year warranty
  • CX-ED1420: 1/2" - 5/8" (12mm - 16mm) latch projection
  • CX-ED1410: 5/8" - 3/4" (16mm - 19mm) latch projection


See More


Specifications

SPECIFICATIONS
Voltage:12 or 24V AC/DC
Current Draw:260 mA @ 12 VDC
150 mA @ 24 VDC
Static Hold Force:1,500 Lbs.
Dynamic Strength:70 Ft-Lbs.
Endurance:1,000,000 cycles (factory tested), 250,00 cycles (UL verified)
Fire Rating:90 minutes (UL verified)
Operation:AC - Buzz
DC- Silent
Latch Projection:CX-ED1410: 5/8" - 3/4" (16mm - 19mm)
CX-ED1420: 1/2" - 5/8" (12mm - 16mm)
Mode:Field selectable fail safe / fail secure (Fire rated in fail secure mode only)
Duty:Continuous
Dimensions:CX-ED1410:
3-3/8" L x 1-7/8" W x 1-3/8" D (86mm x 47mm x 35mm)
CX-ED1420:
3-3/8" L x 1-7/8" W x 1-3/16" D (86mm x 47mm x 31mm)
MODELS

Model

Description

CX-ED1410

‘Universal’ Grade 1 ANSI Fire Rated Electric Strike

Dimensions: 3.25"L x 10.51"W x 2.25"H

Weight: 1.15lbs.

UPC:670454191083

Country of Origin:TWN

CX-ED1410-BK

‘Universal’ Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate

Dimensions: 3.25"L x 10.51"W x 2.25"H

Weight: 1.15lbs.

Country of Origin:TWN

CX-ED1420

‘Universal’ Low Profile Grade 1 ANSI Fire Rated Electric Strike

Dimensions: 10"L x 2"W x 1.875"H

Weight: 5lbs.

UPC:670454225436

Country of Origin:TWN

CX-ED1420-BK

‘Universal’ Low Profile Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate

Dimensions: 10"L x 2"W x 1.875"H

Weight: 5lbs.

UPC:670454225436

Country of Origin:TWN

Marking Templates

CX-STR-TMPKIT

Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver

Dimensions: 8"L x 4.5"W x 1.5"H

Weight: .85lbs.

UPC:670454222039

Country of Origin:China
