Camden Door Controls -CX-ED0010 Electromechanical Cabinet Lock

DOWNLOADS

Camden's CX-ED0010 Electromechanical Cabinet Lock represents an evolution in secure locking systems, designed for a broad range of enclosures that use swinging doors, drawers, and sliding doors.


Category: cabinet accessories | commercial door hardware | electromagnetic locks...

MasterFormat: Architectural Woodwork | Cabinet and Drawer Hardware | Door Hardware...


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

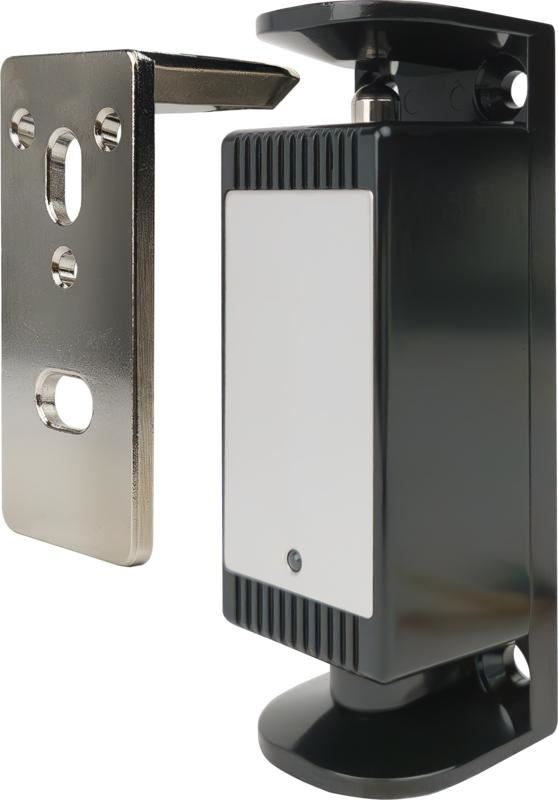

CX-ED0010 Electromechanical Cabinet Lock

Camden's CX-ED0010 Electromechanical Cabinet Lock represents an evolution in secure locking systems, designed for a broad range of enclosures that use swinging doors, drawers, and sliding doors. This lock supports both 12V and 24V power supplies and introduces the flexibility of operating in either field selectable fail-safe or fail-secure modes.

The CX-ED0010 accommodates diverse security needs in places such as computer cabinets, lockers, retail display counters, and medical and cannabis dispensaries. Its inclusion of door and lock status sensors further enhances its functionality, providing real-time security status.

FEATURES

  • Front mounting for use with office drawers, display cabinets, etc.
  • Field selectable fail-safe or fail secure operation
  • 440 lbs. (200kg) holding force
  • Strike plate adjusts to door alignment
  • Door and lock status sensors


See More


Specifications

SPECIFICATIONS
Power Input:12 / 24 VDC
Current Draw:280mA @ 12VDC, 140mA @ 24VDC
Door Status Sensor:200mA @ 30VDC (Max) Form 'C'
Lock Status Sensor:1A @ 30V DC (Max)
Endurance:250,000 Cycles
Static Strength:440 lbs. (200 kg) Holding Force
Temperature Rating:-4°F to 140°F (-20°C to 60°C)
Operation Mode:Field Selectable Fail-Safe or Fail-Secure
Installation Options:Front Mount
Dimensions:LOCK BODY: 3-5/16"H x 1-3/16"W x 1-1/8"D
(84mm x 30mm x 28mm)
STRIKE PLATE: 2-1/2"H x 27/32"W x 1-1/4"D
(64mm x 21.5mm x 31.6mm)
MODELS

Model

Description

CX-ED0010

Electromechanical Cabinet Lock

Dimensions: 4.5"L x 3"W x 1.5"H

Weight: 1.5lbs.

UPC:670454222206

Country of Origin:TWN
