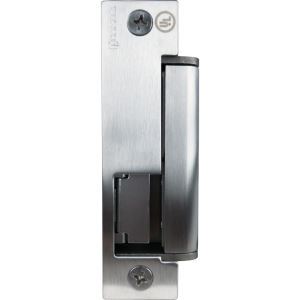

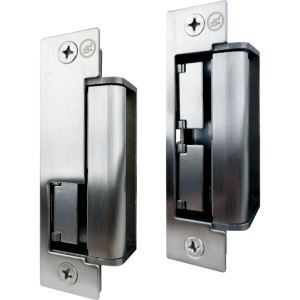

CX-ED1689L-4 & CX-ED1799L-8 'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes

Camden CX-ED1689L and CX-ED1799L Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in single or dual latch monitoring, 4 or 8 stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.

These strikes also include a 3-hour fire rating, and also have the option of ordering strike bodies and individual faceplates separately.

FEATURES

  • For mortise and cylindrical locksets
  • Selectable fail safe / fail secure
  • Selectable 12/24V AC/DC
  • 1 or 2 latch and deadbolt monitoring switches
  • Magnetic door position switch
  • Strike power monitor
  • Easy fit connectors
  • 5 year warranty
  • CX-ED1689L: Low Profile, with latch monitoring
  • CX-ED1689L-4: Low Profile strike w/ latch monitoring package includes 4 faceplates for latch bolts
  • CX-ED1799L: Dual Monitor strike, with Latch monitoring
  • CX-ED1799L-8: Dual monitor strike w/ latch monitoring package includes 8 faceplates for latch bolts and dead bolts


See More


Specifications

SPECIFICATIONS
Voltage:12/24V AC/DC
Current Draw:300mA @ 12V AC/DC
150mA @ 24V AC/DC
Static Strength:1,500 lbs
Dynamic Strength:70 ft-lbs
Endurance:1,500,000 Cycles (Factory Tested)
250,000 Cycles (UL Verified)
Mode:Field Selectable Fail Safe/Fail Secure
Operation:AC-Buzz, DC-Silent
Duty:Continuous
Lock Monitor Status:2 x SPST, 100mA @ 24V DC, Resistive
Strike Monitor Status:SPDT, 100mA @ 24V DC, Resistive
Dimensions (body):
CX-ED1689L:4-7/8''H x 1-5/8''W x 1-3/8''D
(124mm x 41mm x 36mm)
CX-ED1799L-8:4-7/8''H x 1-5/8''W x 1-21/32''D
(124mm x 41mm x 42mm)
MODELS

Model

Description

CX-ED1689L

Low profile strike body with (1) latch monitor switch Mortise strike low profile body only, 3-hour fire rating.

Dimensions: 10.5"L x 3.25"W x 2.25"H

Weight: 1.9lbs.

UPC:670454219602

Country of Origin:China

CX-ED1799L

Dual monitor strike body with (2) monitor switches mortise strike body only, 3-hour fire rating.

Dimensions: 10.5"L x 3.25"W x 2.25"H

Weight: 1.9lbs.

UPC:670454219619

Country of Origin:China

Faceplate Packs

CX-ED1689L-4

Low profile strike body with (1) latch monitor switch comes with 4 faceplates for latch bolts, 3-hour fire rating. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400

Dimensions: 10.5"L x 3.25"W x 2.25"H

Weight: 1.9lbs.

UPC:670454219626

Country of Origin:China

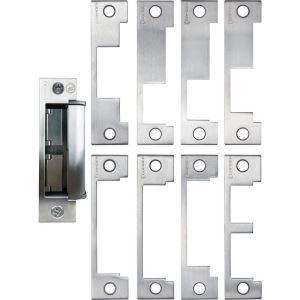

CX-ED1799L-8

Dual monitor strike body with (2) monitor switches comes with 8 faceplates, 3-hour fire rating. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400, CX-EMP110, CX-EMP210, CX-EMP310, CX-EMP410

Dimensions: 10.5"L x 3.25"W x 2.25"H

Weight: 1.9lbs.

UPC:670454219633

Country of Origin:China

Marking Templates

CX-STR-TMPKIT

Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver

Dimensions: 8"L x 4.5"W x 1.5"H

Weight: .85lbs.

UPC:670454222039

Country of Origin:China

FACEPLATE OPTIONS

Metal Door Frame Stainless Steel Faceplates

CX-EMP-100

'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-110

'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-200

'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-210

'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-300

'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-310

'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-400

'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-410

'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

Metal Door Frame All-Black Faceplates

CX-EMP-100-BK

'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-110-BK

'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-200-BK

'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-210-BK

'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-300-BK

'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-310-BK

'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-400-BK

'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-410-BK

'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

Wood Door Frame Stainless Steel Faceplates

CX-EMP-100W

Wood frames, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-110W

Wood frames, center line applications. Compatible with all cylindrical locksets

.

Dimensions: "L x "W x "H

Weight: lbs.

CX-EMP-400W

Wood frames, dead latch positioned above the latch bolt. Compatible with all cylindrical locksets

.

Dimensions: "L x "W x "H

Weight: lbs.
