Camden Door Controls -CX-95S-DH Magnetic Door Holder

DOWNLOADS

Camden CX-95S-DH Magnetic Door Holder is designed for virtually any remote door release application. The UL-listed Magnetic Door Holder controls the release and closing of commercial and public area doors, ideal for use in apartment buildings, schools, hotels, hospitals, and offices.


Category: commercial door hardware | electromagnetic locks | file cabinet locks...

MasterFormat: Hardware | Door Hardware | Access Control Hardware...


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

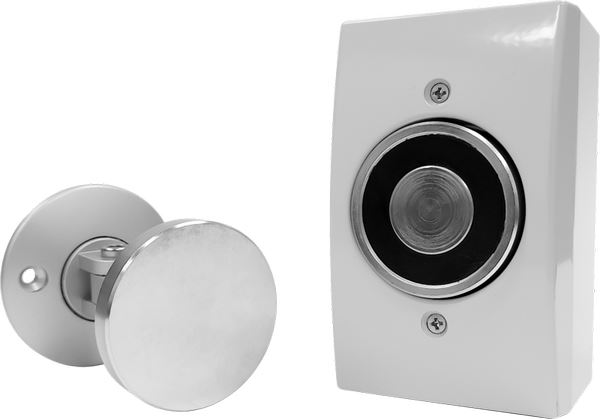

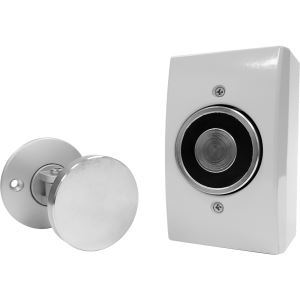

CX-95S-DH Magnetic Door Holder

Camden CX-95S-DH Magnetic Door Holder is designed for virtually any remote door release application. The UL-listed Magnetic Door Holder controls the release and closing of commercial and public area doors, ideal for use in apartment buildings, schools, hotels, hospitals, and offices.

Fail-safe operation, tri-volt coils, and an adjustable armature plate allow for easy and flexible installation. Camden Magnetic Door Holders may be surface or flush mounted (CX-95S-DH), or floor mounted (CX-95S-DH-FL), with all mounting hardware included in the kit. Optional extension bars are also available.

FEATURES

  • CX-95S-DH:
    • Multiple voltages: 12/24V, AC/DC, 120 VAC
    • Armature plate adjusts to door alignment
    • Up to 35 lbs (16 kg) holding force
    • Used for door release in public, industrial and commercial applications
    • 3 year warranty
  • CX-95S-3E, CX-95S-7E: High-quality Camden door accessory designed for CX-95 Series door holders


See More


Specifications

SPECIFICATIONS
Voltage:12/24V AC/DC, 120V AC
Current Draw:55mA @ 12V AC 57mA @ 12V DC, 32mA @ 24V AC 34mA @ 24V DC, 30mA @ 120V AC
Mount Options:Surface, Flush, or Floor Mount
Static Hold Force (12V AC/DC):Up to 30 lbs.
Static Hold Force (24V AC/DC):Up to 35 lbs.
Static Hold Force (120V AC):Up to 18 lbs.
Dimensions:Surface Mount Magnet:
2-3/4" W x 4-5/8" L x 2-1/2" D
(70mm x 116mm x 62 mm)
Flush Mount Magnet:
2-3/4" W x 4-5/8" L x 1-3/4" D
(70mm x 116mm x 44mm)
Armature Plate: 2-9/16" W x 2-9/16" L x 2-7/8" D
65mm x 65mm x 74mm)
L Bracket: 4-1/2" W x 3-9/16" L x 1-3/4" D
(114mm x 90mm x 44mm)
MODEL

Model

Description

CX-95S-DH

Magnetic Door Holder Surface/Flush Mount

Dimensions: 6.25"L x 2.5"W x 4.75"H

Weight: 1.5lbs.

UPC:670454217851

Country of Origin:Malaysia

CX-95S-DH-FL

Magnetic Door Holder Floor Mount

Dimensions: 2.75"L x 3"W x 3.5625"H

Weight: 1.5lbs.

UPC:670454226433

Country of Origin:Malaysia

Extension Bars

CX-95S-3E

Magnetic Door Holder Extension Bar 3" (Shown with Mounting & Armature Plates)

Dimensions: 4"L x 0.05"W x 2"H

Weight: .5lbs.

UPC:670454218513

Country of Origin:Malaysia

CX-95S-7E

Magnetic Door Holder Extension Bar 7" (Shown with Mounting & Armature Plates)

Dimensions: 4"L x 0.05"W x 2"H

Weight: .5lbs.

UPC:670454218520

Country of Origin:Malaysia
