Camden Door Controls -CX-DE1200 Series Exit Watch™ Delayed Egress Magnetic Locks

DOWNLOADS

CX-DE1200 Series delayed egress magnetic locks feature heavy-duty construction, 1,200 lbs. holding force and a range of models and field selectable operation for varied applications, including retail, institutional or healthcare buildings.


Category: commercial door hardware | electromagnetic locks | file cabinet locks...

MasterFormat: Hardware | Door Hardware | Access Control Hardware...


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

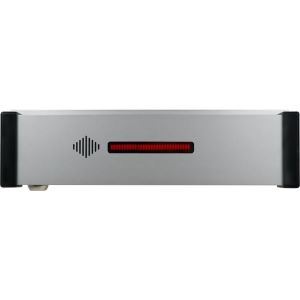

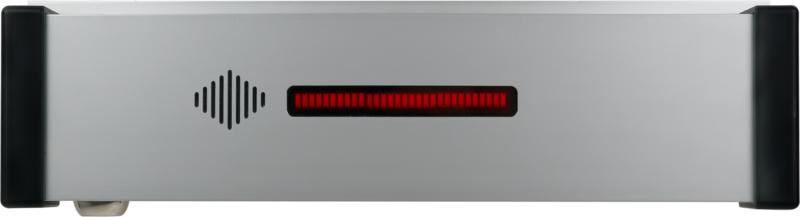

CX-DE1200 Series Exit Watch™ Delayed Egress Magnetic Locks

CX-DE1200 Series delayed egress magnetic locks feature heavy-duty construction, 1,200 lbs. holding force and a range of models and field selectable operation for varied applications, including retail, institutional or healthcare buildings.
Delayed egress magnetic locks are UL and ULC listed with a selection of models factory configured to meet North American code requirements. The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants.

NEW ENHANCED AUDIO ON ALL CX-DE1200 DELAYED EGRESS MAGLOCKS - NOW OVER 75dB!
NEW 90dB SOUNDER INCLUDED!

View our Retail and Healthcare (Assisted Living) Application Guides in our resources section below.

FEATURES

  • Holding Force up to 1,200 Lbs.
  • Field Selectable Exit Delay Tme 15 / 30 Seconds
  • Nuisance Delay Period Either 1, 2 or 3 Seconds
  • 75dB Voice Alerts With LED Segment Bar Displaying Countdown Time & Field Selectable Languages
  • Automatic / Manual Start-up On Power Restore

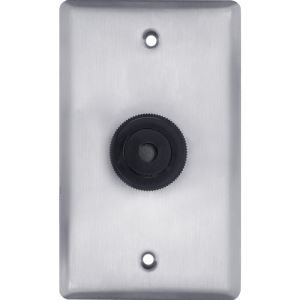

  • Single gang 90db sounder provided for Alarm alerts
  • Auto Sensing Voltage Power Input 12/24 VDC
  • Power Polarity Protection
  • Optional Connection for Auxiliary Lock (Double Leaf Door)
  • Hall Effect Sensor Monitoring Output
  • Anti-tamper status
  • Tailgating Prevention - Door Will Re-lock As Soon As It Closes
  • Anti-Pass Back / Auto Re-lock: If Door Doesn't Open After The Count Down, The Door Will Automatically Re-lock
Optional Features:
  • Door Position Status
  • Bond Status
  • Remote Reset and Bypass via Keyswitch


See More


Specifications

SPECIFICATIONS
Voltage:12/24 VDC +/- 10% (Auto-Sensing)
Current Draw:600mA / 350mA
DPS Rating:30 VDC, 0.1A (max.)
ATS Rating:30 VAC / 42.4 VDC, 5A (max.)
Lock Status Relay Rating:30 VDC, 2A (max.)
Alarm Output Rating:30 VDC, 2A (max.)
Bond Sensor Rating:CX-DE1200: 30 VDC, 2A (max.)
Holding Force:Up to 1,200 lbs. (544 kg.)
Temperature Range:32°F - 131°F (0°C to 55°C)
Dimensions - Armature Plate:2-5/8"H x 11"W x 1"D (68mm x 280mm x 25mm)
Dimensions - Lock:3"H x 11"W x 3"D (76mm x 280mm x 76mm)
MODELS

Single Door

CX-DE1200-N1

15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant

Dimensions: 14.6"L x 5"W x 5"H

Weight: 9.5lbs.

UPC:670454206947

Country of Origin:Malaysia

CX-DE1200-N2

15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant

Dimensions: 14.6"L x 5"W x 5"H

Weight: 9.5lbs.

UPC:670454207265

Country of Origin:Malaysia

CX-DE1200-N3

30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant

Dimensions: 14.6"L x 5"W x 5"H

Weight: 9.5lbs.

UPC:670454207289

Country of Origin:Malaysia

CX-DE1200-N4

15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant

Dimensions: 14.6"L x 5"W x 5"H

Weight: 9.5lbs.

UPC:670454207296

Country of Origin:Malaysia

CX-DE1200-B1

15 Second Fixed Exit Delay
BOCA Building Code Compliant

Dimensions: 14.6"L x 5"W x 5"H

Weight: 9.5lbs.

UPC:670454207302

Country of Origin:Malaysia

CX-DE1200-B2

30 Second Fixed Exit Delay
BOCA Building Code Compliant

Dimensions: 14.6"L x 5"W x 5"H

Weight: 9.5lbs.

UPC:670454207319

Country of Origin:Malaysia

CX-DE1200-B3

15 Second Fixed Exit Delay
City of Chicago Building Code Compliant

Dimensions: 14.6"L x 5"W x 5"H

Weight: 9.5lbs.

UPC:670454207326

Country of Origin:Malaysia

Double Door (Single & Tandem)

CX-DE1220-N1

15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant

Dimensions: 22"L x 12"W x 6"H

Weight: 27lbs.

UPC:670454207197

Country of Origin:Malaysia

CX-DE1220-N2

15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant

Dimensions: 22"L x 12"W x 6"H

Weight: 27lbs.

UPC:670454207203

Country of Origin:Malaysia

CX-DE1220-N3

30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant

Dimensions: 22"L x 12"W x 6"H

Weight: 27lbs.

UPC:670454207210

Country of Origin:Malaysia

CX-DE1220-N4

15 Second Fixed Exit Device
NFPA 101, IBC, IFC, UBC Compliant

Dimensions: 22"L x 12"W x 6"H

Weight: 27lbs.

UPC:670454207227

Country of Origin:Malaysia

CX-DE1220-B2

30 Second Fixed Exit Delay
BOCA Building Code Compliant

Dimensions: 22"L x 12"W x 6"H

Weight: 27lbs.

UPC:670454207241

Country of Origin:Malaysia

CX-DE1220-B3

15 Second Fixed Exit Delay
City of Chicago Building Code Compliant

Dimensions: 22"L x 12"W x 6"H

Weight: 27lbs.

UPC:670454207258

Country of Origin:Malaysia

Mounting Accessories

CX-DE1214-38

3/8" Filler Plate

Dimensions: "L x "W x "H

Weight: 0.5lbs.

UPC:670454207333

Country of Origin:Malaysia

CX-DE1214-58

5/8" Filler Plate

Dimensions: "L x "W x "H

Weight: 0.6lbs.

UPC:670454207340

Country of Origin:Malaysia

CX-DE1215

1 x 1.5" Angle Bracket

Dimensions: "L x "W x "H

Weight: 0.7lbs.

UPC:670454207357

Country of Origin:Malaysia

CX-DE1216

1.5" x 1.5" Angle Bracket

Dimensions: "L x "W x "H

Weight: 0.7lbs.

UPC:670454207364

Country of Origin:Malaysia

CX-DE1217

2" Angle Bracket

Dimensions: "L x "W x "H

Weight: 0.75lbs.

UPC:670454207371

Country of Origin:Malaysia

System Accessories

CX-DE502SO

Remote Annunciator for both audible and visual distinction. Stainless steel faceplate with a piezo and tri-color LED.

Dimensions: 5"L x 4"W x 3"H

Weight: 0.35lbs.

UPC:670454210944

Country of Origin:Canada

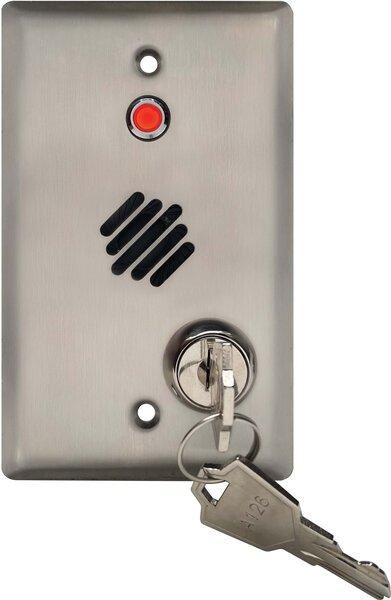

CX-DESPK

Remote Speaker Station with key for both audio and visual distinction. 3 LED color states and 8-ohm speaker for remote messaging.

Dimensions: 5"L x 4"W x 3"H

Weight: 0.75lbs.

UPC:670454207388

Country of Origin:Canada

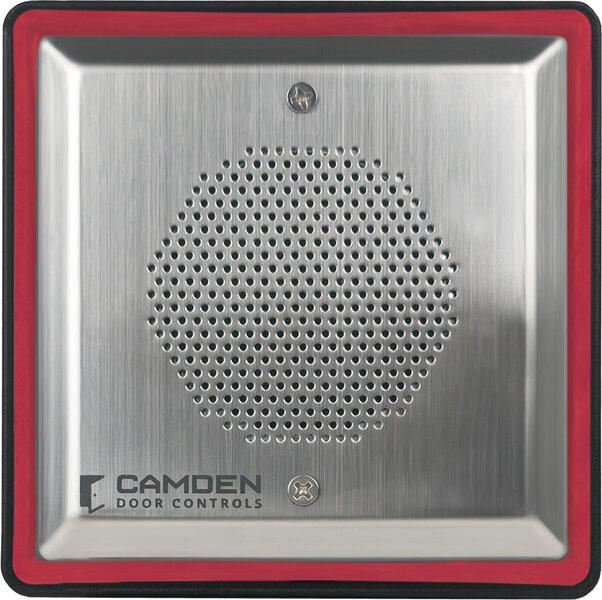

CX-DESPK15-54I

External 15-watt Audio Speaker Station - Surface Mount. Optional Aura PCB feature displays 3 colors for designated states.

Dimensions: 5"L x 4"W x 3"H

Weight: lbs.

UPC:670454212016

Country of Origin:Canada

CX-DESPK15-55I

External 15-watt Audio Speaker Station - Flush Mount. Optional Aura PCB feature displays 3 colors for designated states.

Dimensions: 5"L x 4"W x 3"H

Weight: lbs.

UPC:670454212023

Country of Origin:Canada

CX-DESPK15SM

External 15-watt Audio Speaker Station
Surface Mount

Dimensions: 5"L x 4"W x 3"H

Weight: lbs.

UPC:670454212009

Country of Origin:Canada

CX-DESPK15FM

External 15-watt Audio Speaker Station
Flush Mount

Dimensions: 5"L x 4"W x 3"H

Weight: lbs.

UPC:670454211996

Country of Origin:Canada

60-57A027

Red 12" x 12" Delayed Egress Sign
Raised lettering and braille written language for the visually impaired.

Dimensions: "L x 12"W x 12"H

Weight: lbs.

UPC:670456232678

Country of Origin:Canada

OPTIONS

Magnetic Lock & Remote Reset Key Switch

-KS

Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics. Left Down Arrow 'OVERRIDE'. Right Down Arrow 'RESET'

-KSF

Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics in French. Left Down Arrow 'CONTOURNER'. Right Down Arrow 'RÉINITIALISER'

-KSFE

Single gang Key Switch with (2) NO SPST switches, mortise cylinder, stainless steel faceplate and laser etched graphics in French & English. Left Down Arrow 'OVERRIDE CONTOURNER'. Right Down Arrow 'RESET RÉINITIALISER'
