Camden Door Controls -CX-ED1579L 'All In One’ Fire Rated Electric Strike

DOWNLOADS

Camden CX-ED1579L Grade 1 electric strike for mortise and cylindrical locksets offers the very best strike quality and features, with the added value of built-in latch monitoring


Category: 087100 | door hardware | electric strikes...

MasterFormat: Doors and Frames | Hardware | Door Hardware


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

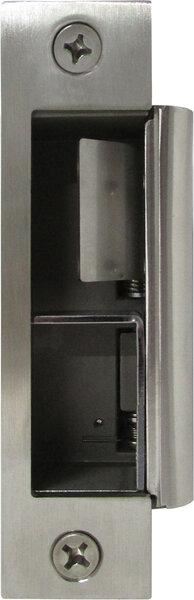

CX-ED1579L 'All In One’ Fire Rated Electric Strike

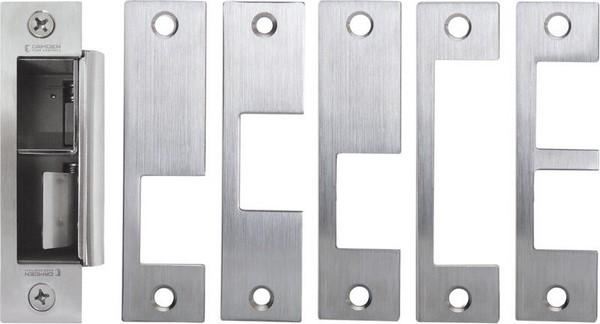

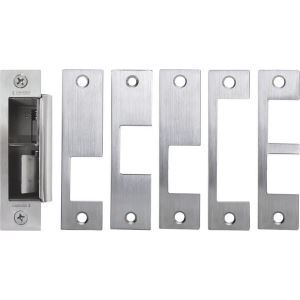

Camden CX-ED1579L Grade 1 electric strike for mortise and cylindrical locksets offers the very best strike quality and features, with the added value of built-in latch monitoring, five stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.

FEATURES

  • For mortise and cylindrical locksets
  • 3/4” (19mm) latch projection (throw)
  • 5 stainless steel faceplates included
  • Selectable fail safe/fail secure operation
  • Selectable 12/24V AC/DC
  • Latch monitoring
  • Non-Handed, LH/RH
  • Easy Fit connectors for power and monitoring wires
  • Stainless steel strike body
  • 5 year warranty


See More


Specifications

SPECIFICATIONS
Voltage:12/24V AC/DC
Current Draw:260 mA @ 12V AC/DC
150 mA @ 24V AC/DC
Static Strength:1,500 Lbs.
Dynamic Strength:70 Ft-Lbs.
Mode:Fail-Safe/Fail-Secure, Field Selectable
Operation:AC - Buzz
DC - Silent
Duty:Continuous (DC)
Mounting:Non-Handed
Endurance:1,500,000 Cycles (Factory Tested)
250,000 Cycles (Ul Verified)
Fire Rating:UL10C/Can4-S104
3 hour (fail secure only)
Latch Bolt Monitor:SPDT, 100 mA @ 24 VDC
Dimensions:4-7/8"H x 1-1/4"W x 1-3/4"D
(124mm x 32mm x 45mm)
MODELS

Model

Description

CX-ED1579L

Grade 1 ‘All In One‘ fire rated strike, 12/24V AC/DC, for mortise and cylindrical locksets

Dimensions: 10.65""L x 2.125""W x 3.25""H

Weight: 2.0lbs.lbs.

UPC:670454184368

Country of Origin:TWN

Marking Templates

CX-STR-TMPKIT

Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver

Dimensions: 8"L x 4.5"W x 1.5"H

Weight: .85lbs.

UPC:670454222039

Country of Origin:China

OPTIONS & FINISHES

Faceplates: Included

CX-EMP-1

Stainless faceplate for Sargent, Schlage & Yale Mortise locksets

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454183736

Country of Origin:TWN

CX-EMP-2

Stainless faceplate for Arrow, Corbin, Falcon, & Mortise locksets

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454183743

Country of Origin:TWN

CX-EMP-3

Stainless faceplate for center line mortise or cylindrical locksets

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454183750

Country of Origin:TWN

CX-EMP-4

Stainless faceplate for mortise locksets with deadbolt

Dimensions: "L x "W x "H

Weight: lbs.

UPC:670454183767

Country of Origin:TWN

CX-EMP-5

Stainless faceplate all mortise locks with latch & deadbolt

Dimensions: "L x "W x "H

Weight: lbs.

Country of Origin:Taiwan
