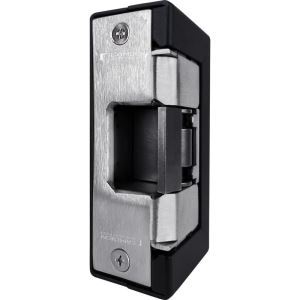

1_0_additional image.jpg image

Camden Door Controls -CX-ED1959 Series Outdoor Rated Electric (Gate) Strikes

DOWNLOADS

Camden CX-ED1959 Series outdoor-rated strikes feature heavy-duty stainless steel construction with an integrated ANSI square faceplate and Grade 1 performance. Compatible with cylindrical locksets and centreline mortise locksets without deadbolts.


Category: 087100 | door hardware | electric strikes...

MasterFormat: Doors and Frames | Hardware | Door Hardware


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

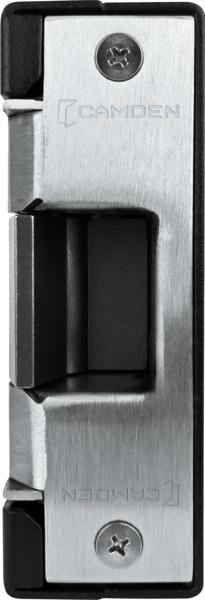

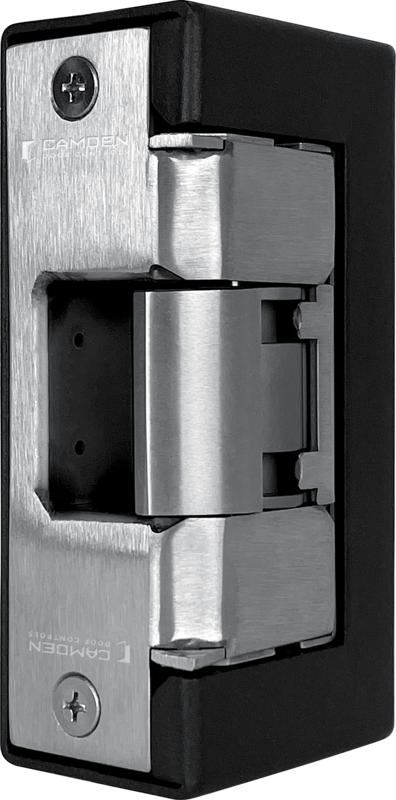

CX-ED1959 Series Outdoor Rated Electric (Gate) Strikes

Camden CX-ED1959 Series outdoor-rated strikes feature heavy-duty stainless steel construction with an integrated ANSI square faceplate and Grade 1 performance. Compatible with cylindrical locksets and centreline mortise locksets without deadbolts. The CX-ED1959 Series models include a heavy gauge painted steel mounting box at no additional charge.

CX-ED1959-MB strikes are specifically designed for exposed perimeter doors and gates. The CX-ED1959RM-MB is a best in class outdoor gate strike, designed for doors equipped with RIM exit devices.

FEATURES

  • Grade 1 strike for exterior doors and gates
  • 7/8" latch projection
  • Selectable 12/24 VDC
  • Selectable fail safe/fail secure operation
  • Integrated ANSI square faceplate
  • Heavy-duty stainless steel construction
  • Metal mounting box included
  • Easy fit connectors
  • 5-year warranty
  • CX-ED1959-MB: For cylindrical and centreline mortise locksets (without deadbolts)
  • CX-ED1959RM-MB: Designed for RIM exit devices


See More


Specifications

SPECIFICATIONS
Voltage:12/24 VDC
Current Draw:280mA / 140mA
Static Strength:1,500 lbs.
Dynamic Strength:70 ft-lbs
Endurance:1,000,000 Cycles (Factory Tested)
250,00 Cycles (UL Certified)
Latch Operating:1-9/16" x 7/8"
(40mm x 22mm)
Modes:Selectable Fail Safe / Fail Secure
Duty:Continuous
Dimensions:4-7/8" x 1-5/8" x 1-5/8"
(124mm x 42mm x 42mm)
MODELS

Model

Description

CX-ED1959-MB

Outdoor rated Grade 1 strike for exterior doors and gates, designed for use with cylindrical & centreline mortise locksets. Supplied with metal mounting box. Selectable fail safe/fail secure operation, 12/24V DC

Dimensions: 10"L x 2"W x 1-3/4"H

Weight: 5lbs.

UPC:670454217622

Country of Origin:Taiwan

CX-ED1959RM-MB

Outdoor rated Grade 1 strike for use with with RIM exit devices, with standard or Pullman latches. Supplied with metal mounting box. Selectable fail safe/fail secure operation, 12/24V DC

Dimensions: 10"L x 2"W x 1-3/4""H

Weight: 5lbs.

UPC:670454220233

Country of Origin:Taiwan
