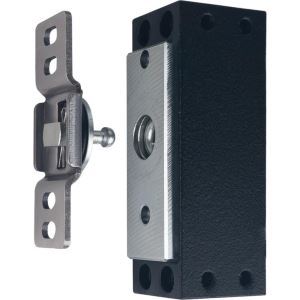

Camden Door Controls -CX-EPD0009 Magnetic Cabinet Lock

DOWNLOADS

Camden CX-EPD0009 Magnetic Cabinet Lock has an ultra-compact design and is an easily installed high-security lock for virtually any enclosure door, including computer cabinets, refrigerators, lockers, and retail display counters.


Category: cabinet accessories | commercial door hardware | electromagnetic locks...

MasterFormat: Architectural Woodwork | Cabinet and Drawer Hardware | Door Hardware...


View Product Details From Manufacturer


Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

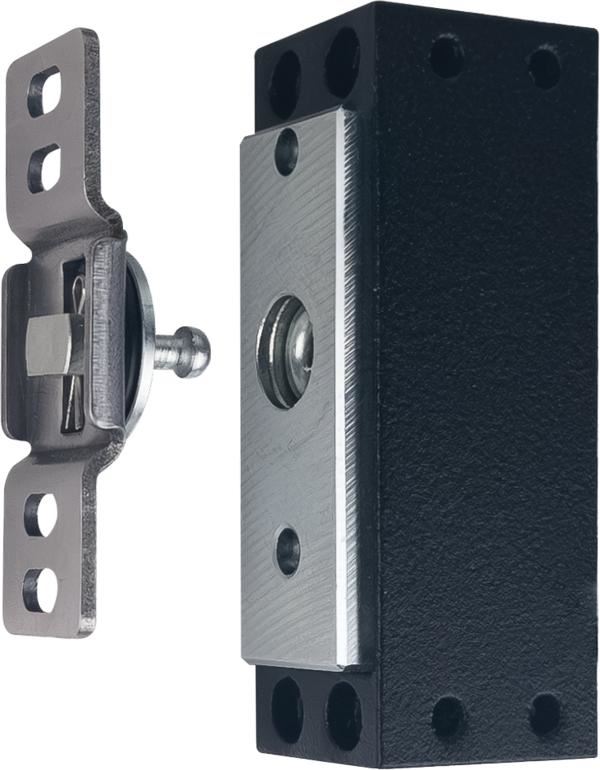

CX-EPD0009 Magnetic Cabinet Lock

Camden CX-EPD0009 Magnetic Cabinet Lock has an ultra-compact design and is an easily installed high-security lock for virtually any enclosure door, including computer cabinets, refrigerators, lockers, and retail display counters. This 12V or 24V magnetically operated lock has a holding force of 440 lbs. (200 kg) and is water-resistant, making it ideal for humid environments, including inside fridges and freezers.

FEATURES

  • CX-EPD0009:
    • Front or side mounting for use with swing or sliding doors and drawers
    • Armature plate adjusts to door alignment
    • Water resistant for indoor and outdoor use
    • Ultra-compact design
    • 440 lbs. (200 kg) holding force
    • 5 lbs. (2.3 kg) preload
    • 3 year warranty
  • CX-CL-LZBRK: High-Quality Camden accessory designed for CX-EPD0009 magnetic cabinet lock


See More


Specifications

SPECIFICATIONS
Power Input:12 / 24 VDC
Current Draw:60mA @ 12VDC, 110mA @ 24VDC
Endurance:250,000 Cycles
Static Strength:440 lbs. (200 kg) Holding Force
Preload:5 lbs. (2.3 kg)
Temperature Rating:-4°F to 140°F (-20°C to 60°C)
Operation Mode:Fail-Safe
Installation Options:Front Mount, Side Mount
Dimensions*:2-1/2"H x 27/32"W x 1-1/4"D (64mm x 21.5mm x 31.6mm)
*Dimensions are of assembled product
MODELS

Magnetic Cabinet Lock

CX-EPD0009

Magnetic Cabinet Lock

Dimensions: 4.5"L x 3"W x 1.5"H

Weight: 1.5lbs.

UPC:670454220080

Country of Origin:China

L&Z Bracket

CX-CL-LZBRK

L&Z Bracket for use with CX-EPD0009 Magnetic Cabinet Lock

Dimensions: 4.5"L x 3"W x 1.75"H

Weight: 1.6lbs.

Country of Origin:China
