Camden Door Controls -CX-ED2071/ED2079 'Universal' Low Profile Gr. 2 Electric Strike

Camden's new CX-ED2079 low profile 'Universal' grade 2 ANSI electric strike for cylindrical locksets provides exceptional value with 3 faceplates, and selectable 12/24V AC/DC voltage, fail safe/fail secure operation and horizontal adjustment of the strike body.

Category: 087100 | door hardware | electric strikes...

MasterFormat: Doors and Frames | Hardware | Door Hardware

View Product Details From Manufacturer

Camden Door Controls
2395 Skymark Ave
Mississauga, ON L4W 4Y6
Tel: (877) 226-3369

csr@camdencontrols.com

https://www.camdencontrols.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

CX-ED2071/ED2079 'Universal' Low Profile Gr. 2 Electric Strike

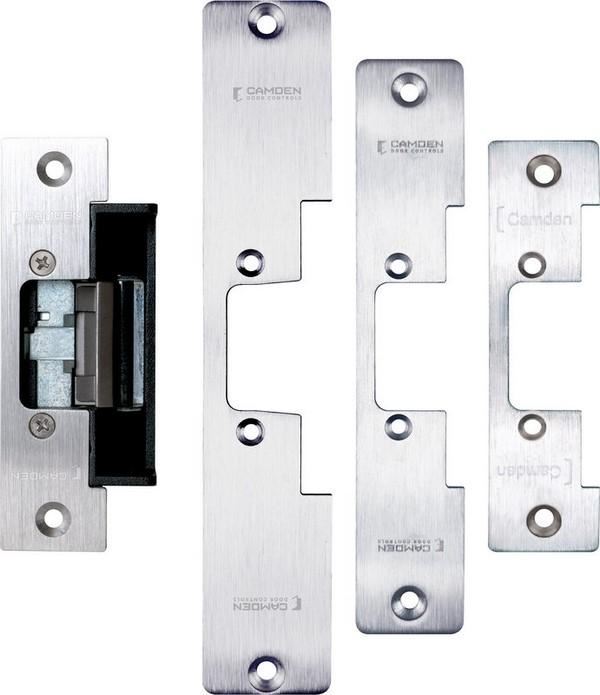

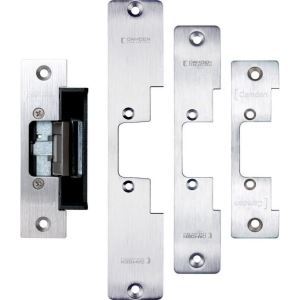

Camden's new CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value for installations that require 8-16V AC/DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe/fail secure operation and horizontal adjustment of the strike body.

FEATURES

Centerline latch entry for cylindrical locksets, 1/2" to 5/8" latch projection
Selectable fail safe/fail secure operation
Horizontal adjustibility of strike body
Low profile strike body
5 year warranty
CX-ED2079: (3) Stainless steel faceplates included
CX-ED2079-1: (1) ANSI Square faceplate included
CX-ED2071: 8-16V AC/DC

See More

See Less

Specifications

SPECIFICATIONS

Voltage:
CX-ED2079:	12/24V AC/DC
CX-ED2071:	8-16V AC/DC
Current Draw:
CX-ED2079:	300 mA @ 12 VDC,150 mA @ 24 VDC
CX-ED2071:	305 mA @ 8 VDC, 625 mA @ 16 VDC 190 mA @ 8 VAC, 460 mA @ 16 VAC
Static Strength:	1000 Lbs.
Dynamic Strength:	50 Ft. Lbs.
Endurance:
CX-ED2071, CX-ED2079:	700,000 cycles
CX-ED2079:	250,000 cycles (UL Verified)
Mode:	Selectable fail safe fail secure
Operation:	AC - Buzz DC- Silent
Duty:
CX-ED2079:	Continuous
CX-ED2071:	Intermittent
Mounting:	Non-handed
Dimensions:	3-3/8"H x 1-7/8"W x 1-7/32"D (86mm x 47mm x 31mm)

MODELS

Model		Description
	CX-ED2079	'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B) Dimensions: 3.25"L x 10.51"W x 2.25"H Weight: 1.25lbs. UPC:670454179395 Country of Origin:TWN
	CX-ED2079-1	'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 1 stainless steel ANSI square faceplate (CX-ESP1B) Dimensions: 3.25"L x 10.5"W x 2.25"H Weight: 1.25lbs. UPC:670454191052 Country of Origin:TWN
	CX-ED2071	'Universal' electric strike, 8-16V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B) Dimensions: 3.25"L x 10.5"W x 2.25"H Weight: 1.25lbs. UPC:670454184092 Country of Origin:TWN
Faceplates: Included
	CX-ESP1B	ANSI Square, 4 7/8" x 1 1/4", stainless steel Dimensions: "L x "W x "H Weight: lbs. UPC:670454180155 Country of Origin:TWN
	CX-ESP3B	Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel Dimensions: "L x "W x "H Weight: lbs. UPC:670454180179 Country of Origin:TWN
	CX-ESP4B	Wood Door, 7 15/16" x 1 7/16" , stainless steel Dimensions: "L x "W x "H Weight: lbs. UPC:670454180186 Country of Origin:TWN
Faceplate: Additional
	CX-ESP2B	ANSI Round, 4 7/8" x 1 1/4", stainless steel Dimensions: "L x "W x "H Weight: lbs. UPC:670454180162 Country of Origin:TWN
	CX-ESP1B-BK	ANSI Square, 4 7/8" x 1 1/4", all-black finish Dimensions: "L x "W x "H Weight: lbs. UPC:670454216755 Country of Origin:China
	CX-ESP2B-BK	ANSI Round, 4 7/8" x 1 1/4", all-black finish Dimensions: "L x "W x "H Weight: lbs. UPC:670454216762 Country of Origin:China
	CX-ESP3B-BK	Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish Dimensions: "L x "W x "H Weight: lbs. UPC:670454216779 Country of Origin:China
	CX-ESP4B-BK	Wood Door, 7 15/16" x 1 7/16" , all-black finish Dimensions: "L x "W x "H Weight: lbs. UPC:670454216786 Country of Origin:China
Lip Extension Brackets
	CX-ED-LIP1	1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes Dimensions: "L x "W x "H Weight: lbs. UPC:670454182432 Country of Origin:TWN
	CX-ED-LIP2	2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes Dimensions: "L x "W x "H Weight: lbs. UPC:670454182449 Country of Origin:TWN
Marking Templates
	CX-STR-TMPKIT	Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver Dimensions: 8"L x 4.5"W x 1.5"H Weight: .85lbs. UPC:670454222039 Country of Origin:China
