Overview


CX-DA100/200/300 Series Line Powered Door Monitors

The new range of Camden door alarms feature a rugged design with heavy duty stainless steel faceplates, and provide an easy to implement solution to the common issue of doors being used, propped or held open without alerting facility or security staff. CX-DA100, CX-DA200 and CX-DA300 models are designed to offer an affordable solution for stand alone applications.

FEATURES

  • Local audible alarm of door open status
  • Heavy duty stainless steel faceplate
  • 12-24 VDC and AC/DC models
  • Single and double gang models

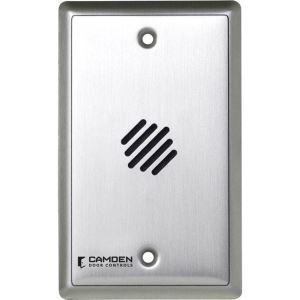

  • CX-DA100: Single gang sounder ideal for wide range of alarm applications
  • CX-DA200, CX-DA300: Feature adjustable 0 - 60 second alarm time delay and relay output
  • CX-DA300: Double gang door alarm features key switch for local reset or bypass


See More


Specifications

SPECIFICATIONS
CX-DA100CX-DA100
Voltage:12 - 24 VDC
Current Draw:18 mA
Sounder:95 db.
CX-DA200, CX-DA300CX-DA200, CX-DA300
Voltage:12/24V AC/DC
Current Draw:70mA
Input:(1) N/C
Output:(1) N/C SPST
Contact Rating:500 mA @ 30 VDC
Sounder:80 db.
Dimensions:
CX-DA100, CX-DA200:2-3/4" x 4-5/8" x 1-1/2" (70mm x 117mm x 38mm)
CX-DA300:4-5/8" x 4-5/8" x 1-1/2" (117mm x 117mm x 38mm)
MODELS

Model

Description

CX-DA100

Door alarm, sounder, single gang, 3-24 VDC

Dimensions: 2"L x 3"W x 5"H

Weight: 0.3lbs.

UPC:670454172273

Country of Origin:Canada

CX-DA200

Door alarm, with relay, single gang, 12/24V AC/DC

Dimensions: 3.75"L x 3.75"W x 6.14"H

Weight: 0.48lbs.

UPC:670454172969

Country of Origin:USA

CX-DA300

Door alarm, with relay and reset key, double gang, 12/24V AC/DC

Dimensions: 3.75"L x 3.75"W x 6.14"H

Weight: 0.79lbs.

UPC:670454172976

Country of Origin:USA
