Grille Wood Panels for Ceilings and Walls

Grille panels are excellent visual design elements for great-looking ceilings and walls. Grille ceiling installation is easy using our attachment clip system to 15/16″ HD T-Bar grid, and both backered and doweled panels are 100% accessible. Use screws for easy wall panel direct attach installation. Standard rail dimensions and spacings are available on our website. Grilles can be stained to match a control sample, and perimeter trim options are available. The system offers design flexibility with five grille styles available. Grilles may be paired with acoustical liner for enhanced acoustics.

Features:

APPEARANCE & COLOR

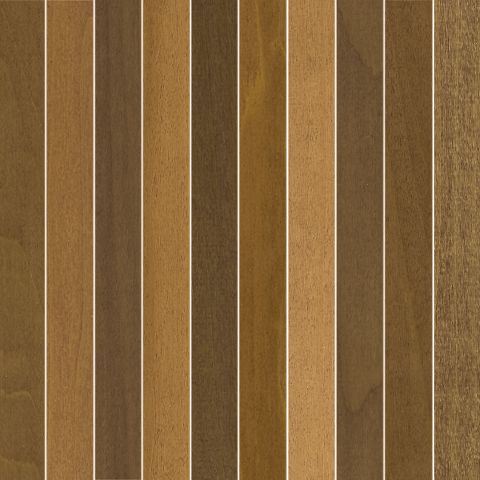

Available in solid wood & veneer in the species shown below*

Five styles available: Backer, Backer & Dowel, Dowel, Notched Backer, and Tegular

Backers and dowels are solid wood painted black as standard

Rail options: solid wood or veneer; on edge or laid flat

FSC available

May contribute to LEED®projects

Finishes: Clear lacquer top coat, Class-A varnish, or stained to match

CORE

Available core materials:

Solid Wood

Particle Board or MDF

Class A Fire Rated Particle Board or MDF

ACOUSTICAL ABSORPTION

NRC varies based on rail and reveal dimension

Optional features for sound control: Acoustical backer available in 1″ and 2″

SIZES

12″ Standard panel width; 8′ Standard panel length, with up to 10′ custom lengths

MOUNTING OPTIONS

Walls: Direct attach with screws

Ceilings: attachment to 15/16″ HD T-Bar grid with factory-supplied clips

Available options

Backer

Backer and Dowel

Dowel

Notched Backer

Tegular Lay In
