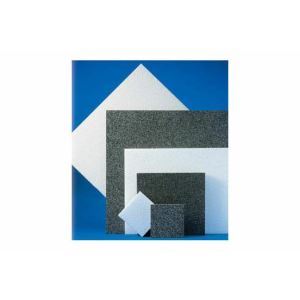

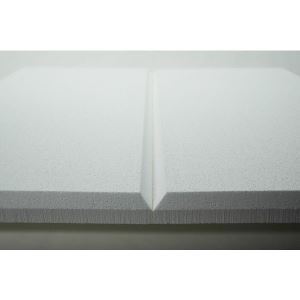

Sound Silencer™ Cleanable Acoustical Sound Panels

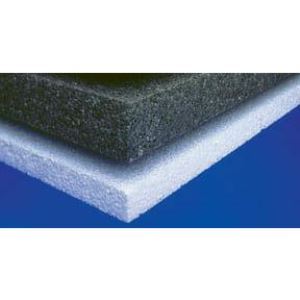

Rigid Porous ARPRO® Acoustical (P.E.P.P.) Ceiling and Wall Panels

Sound Silencer cleanable acoustical sound panels are unique - made from Rigid Porous ARPRO Acoustical (P.E.P.P.), these panels are Class A fire rated with STC and NRC values. Sound Silenc­er acoustical panels are great for gymnasiums, ice rinks, swimming pools, clean rooms, laboratories, food prep areas, firing ranges and anywhere else where noise control is important. The cleanable acoustical sound panels can be applied directly on wall and ceiling surfaces for attractive and effective sound control. Find out more here.

  • High performance - both STC & NRC ratings
  • Class A fire rated per ASTM E84
  • No fiberglass - non-fibrous
  • Water-resistant indoor
  • Non-abrasive surface
  • Indoor/outdoor usage
  • Tackable surface
  • Moisture-, impact-, bacteria- & fungi-resistant
  • Lightweight & cleanable
  • Low VOC Emissions - Passes CDPH V1.2 Test Standard and can contribute to LEED V4.1 EQ Credit: Low-Emitting Materials

See less

Product Specs

Applications

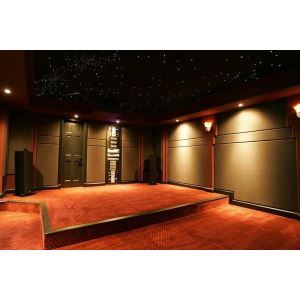

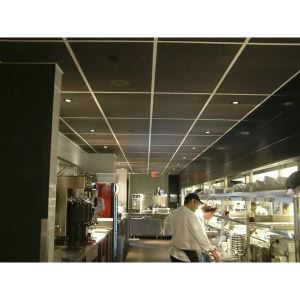

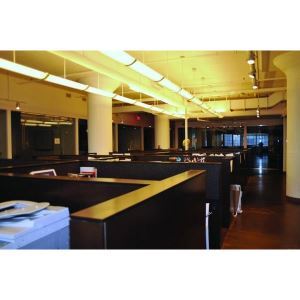

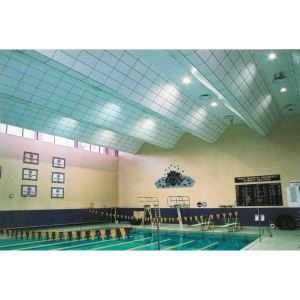

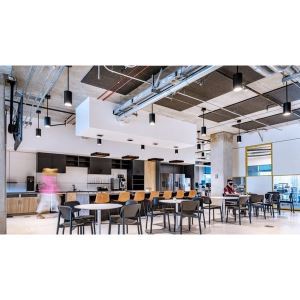

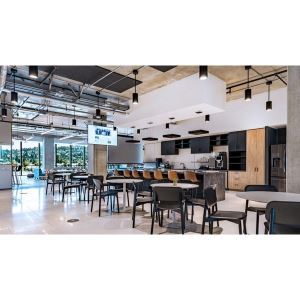

Gymnasiums, Auditoriums, Classrooms, Swimming Pools, Ice Arenas, Clean Rooms, Food Processing Plants, Food Prep Areas, Cafeterias & Restaurants, Manufacturing Plants, Car Washes, Rooftop and Machine Enclosures, Gun Ranges, Dog Kennels, Locker Rooms.

Thickness

1"
2"

Size

Standard Sizes
24" x 24"
24" x 48"
Custom Sizes
Up to 25" x 49"
Minimum quantities may apply. Inquire for details.

Color

Charcoal, White

Installation Method

Adhesive, Direct Attach

Note to Installers

Sound Silencer™ is a thermal-molded acoustical sound panel. Although tough to see, one side of the sound suppressor panel will have injection and mold release marks these are circular marks that range in size and indent depth. These marks denote the back side of the cleanable acoustical sound panel so panels should be installed with these marks facing the wall or ceiling for best possible aesthetical outcome.

Fire Performance

Class A Fire Rated per ASTM E84

Light Reflectance

White - 90

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)

Passes ASTM C1338, G21, G22 test (No fungal growth)


See More


Specifications

Color Options

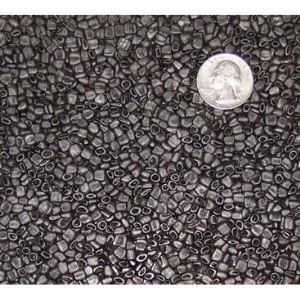

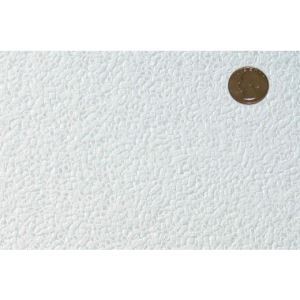

CharcoalWhite
Acoustical Specs
Sound Silencer Ceiling and Wall Panel - NRC Results
Panel Thickness/DensityTesting MountNRC Rating
1″A0.45
1″A - 12″ spacing between panels0.50
1″D-20 - 3/4″ airspace0.50
1″C-25 - 1″ Echo Eliminator backer0.80
2″A0.70
2″A - 12″ spacing between panels0.80
2″D-20 - 3/4″ airspace0.75
2″C-25 - 1″ Echo Eliminator backer0.90
Sound Silencer Ceiling and Wall Panel - Expanded Acoustical Absorption Data
ThicknessTesting Mount125 Hz250 Hz500 Hz1 kHz2 kHz4 kHzNRCSAA
1″A0.050.060.210.800.650.750.450.44
1″A - 12″ spacing between panels0.040.070.200.830.811.000.500.49
1″D-20 - 3/4″ airspace0.060.130.510.790.620.790.500.52
1″C-25 - 1″ Echo Eliminator backer0.110.581.070.710.740.720.800.77
2″A0.070.210.810.850.930.880.700.68
2″A - 12″ spacing between panels0.090.210.821.111.111.120.800.80
2″D-20 - 3/4″ airspace0.100.290.990.740.900.930.750.72
2″C-25 - 1″ Echo Eliminator backer0.170.810.970.850.890.920.900.88
Panel Thickness/DensitySTC RatingOITC Rating
1″98
2″1311
Sound Silencer Ceiling and Wall Panel - Expanded Transmission Loss Data
Thickness125 Hz250 Hz500 Hz1 kHz2 kHz4 kHzSTCOITC
1″657891698
2″98101017171311
