Overview

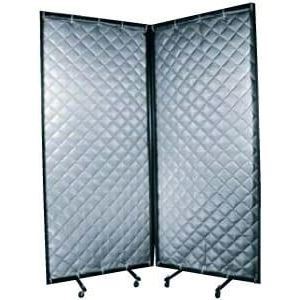

Quilted S.T.O.P Screen™

Portable Acoustical Enclosures and Screens

Quilted Curtain S.T.O.P. portable acoustical enclosures and screens create an acoustic barrier for noise reduction wherever you need it. This cost-effective and versatile solution is water and chemical-resistant for whatever situation arises. Utilize these quilted covers for commercial machinery applications or to create an impromptu room for interviewing or quiet. Some of the features of this product are:

  • For Unusual Conditions
  • Cost-Effective
  • Water & Chemical Resistant
  • Exterior Applications
Product Specs

Material

Foam or fiberglass core, faced with quilted aluminized fabric.

Pattern

Quilted pattern

Features

Effective and durable absorber with mass loaded vinyl barrier option.

Applications

These portable soundproof walls are an effective solution to a wide range of unusual problems. The sound screen curtains can be used for machinery and work area enclosures. Industrial absorbers, portable screens.

Thickness

1″, 2″

Sizes

BSC-25 Curtain - Quilting on Both Sides - Standard: 48″ Wide and Lengths up to 25′
BBC-13 Curtain - Quilting on One Side - Standard: 54″ Wide and Lengths up to 25′
Custom sizes also available.

Color

Silver (Other colors available upon request)

Flammability

ASTM E84, Class A. Flame Spread: 23; Smoke Developed: 30

Installation

Hook and loop fasteners, grommet hangers, curtain spanport hardware.


See More


Specifications

CURTAIN S.T.O.P. - Sound Transmission Loss - ASTM E90
Frequency125Hz250Hz500Hz1KHz2KHz4KHz STC
1″ Thick w/ Barrier11162430353527
2″ Thick w/ Barrier13202940505532
CURTAIN S.T.O.P. - Sound Transmission Loss - ASTM C423
Frequency125Hz250Hz500Hz1KHz2KHz4KHzNRC
1″ Thick w/ Barrier0.120.470.850.840.640.620.70
2″ Thick w/ Barrier0.190.990.960.800.570.330.85
1″ Thick w/o Barrier0.120.470.850.840.640.620.70
2″ Thick w/o Barrier0.190.990.960.800.570.330.85
