Overview


Poly Max Polyester Acoustical Panels

Polyester Acoustic Ceiling and Wall Panels

Poly Max polyester acoustical panels are non-allergenic, non-toxic, fungal-resistant, and do not contain chemical irritants or formaldehyde. Decorative and tackable, apply the acoustical panels to ceilings and walls to tame echo and reverberation. Available in a variety of colors or printed with custom graphics to blend into any decor. Material: 100% polyester (60% PET-recycled fiber, 40% PET-virgin fiber). Poly Max passes the CDPH V1.2 test standard for low VOC emissions and can contribute to LEED V4.1 EQ Credit: Low-Emitting Materials.

Product Specs

Applications

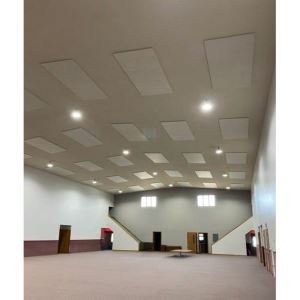

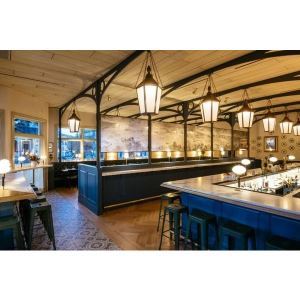

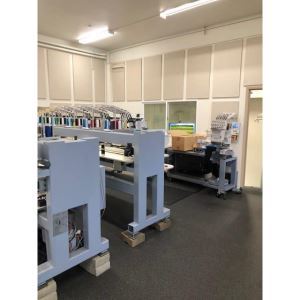

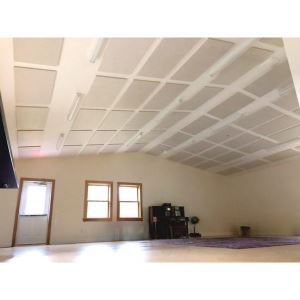

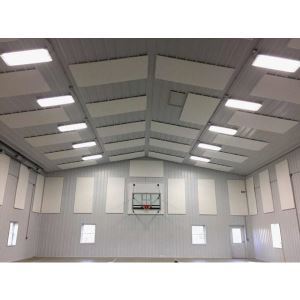

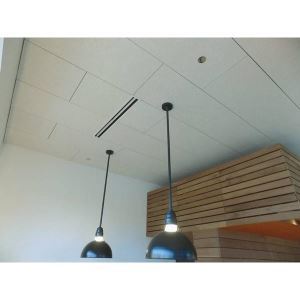

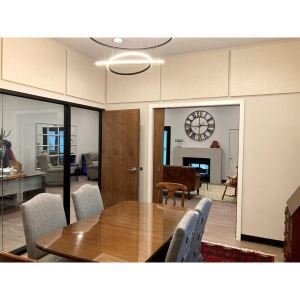

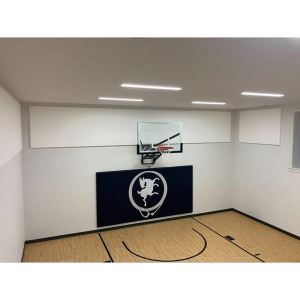

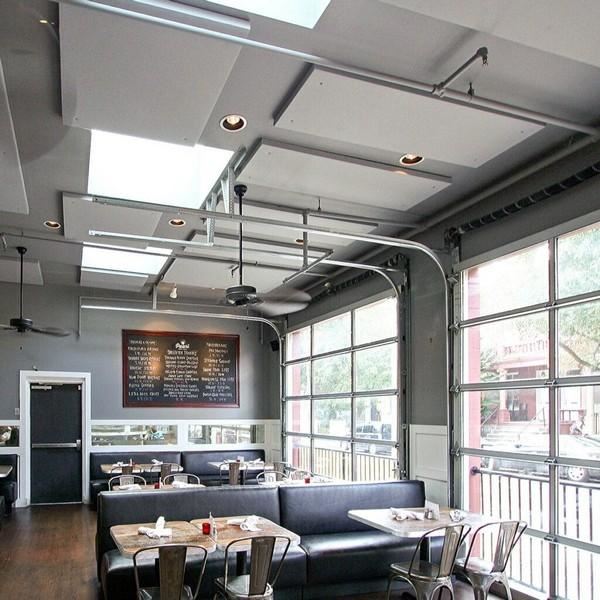

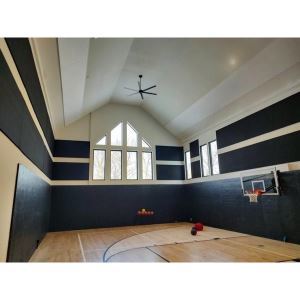

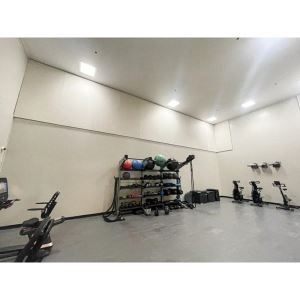

Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

Thickness

1/2"
1"
2"

Density

1/2": 12.5 lb. pcf
1": 7.5 lb. pcf
2": 5 lb. pcf

Size

Standard Sizes
24" x 48"
48" x 96"
Custom Sizes
Up to 48" x 96"

Color

See color options tab for full color availability.

Installation Method

Walls: Adhesives (Spray & Construction), Z-bars, RotoFast Snap-On Anchors, Direct Attach with Screws, Velcro, Double-Sided Tape, Grommets & Hooks, Stick Pins & Washers.

Ceilings: Stick Pins & Washers, RotoFast Snap-On Anchors, Direct Attach with Screws, Z-Bars (preferably with a bit of adhesive), Grommets with screw and washer.

Material Performance

Fire Performance

Class A Fire Rated per ASTM E84

Light Reflectance

1/2" White - 87
1" White - 83
2" White - 82

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM C1338 test (No fungal growth)


See More


Specifications

1" and 2" Color Options
WhiteBeigeBlack
SilverPrinted Graphics
1/2" Color Options
WhiteBeigeTan
BrownSilverGray
BlackBluePurple
RedOrangeLime
Printed Graphics
Acoustical Specs
Poly Max - Octave Band Absorption Coefficients
Panel ThicknessTesting Mount125 Hz250 Hz500 Hz1 kHz2 kHz4 kHzNRC Rating
1/2″A0.010.070.260.540.780.940.40
F60.010.050.240.610.890.990.45
D200.090.140.390.780.971.010.55
D400.090.250.680.941.000.860.70
1″A0.080.200.590.941.041.020.70
F60.030.220.640.950.991.010.70
D200.110.310.741.041.040.990.80
D400.110.410.911.061.020.990.85
2″A0.310.581.081.111.041.040.95
F60.170.540.971.161.071.110.95
D200.220.571.051.070.981.010.90
D400.240.681.071.061.030.970.95
Material Performance
Fire Performance

(Class A Fire Rated per ASTM E84

Light Reflectance

1/2" White - 87
1" White - 83
2" White - 82

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM C1338 test (No fungal growth)
