Echo Eliminator: Wall and Ceiling Panels

Bonded Acoustical Cotton Ceiling and Wall Panels

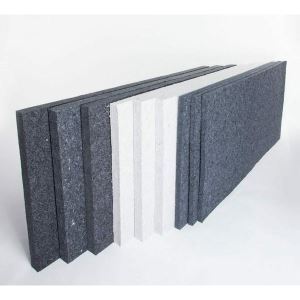

Echo Eliminator, made from bonded acoustical cotton (B.A.C.), is the most cost-effective acoustical absorbing material on the market. It is a high-performance acoustical panel manufactured from recycled cotton, and is ideal for any noise control application. Echo Eliminator Ceiling and Wall panels can be installed with a variety of methods to accommodate any space. Echo Eliminator Ceiling and Wall Panels may be eligible for LEED™ credits, are Class A fire rated, and 100% recyclable.

Product Specs

Applications

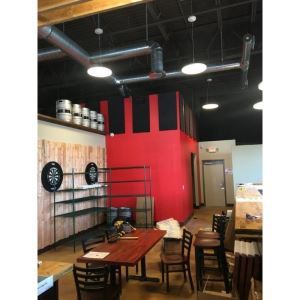

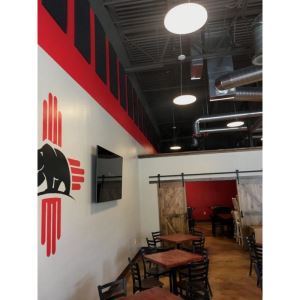

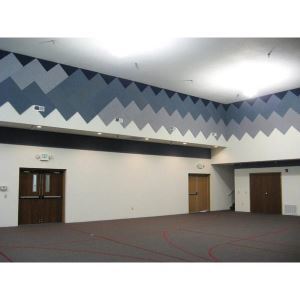

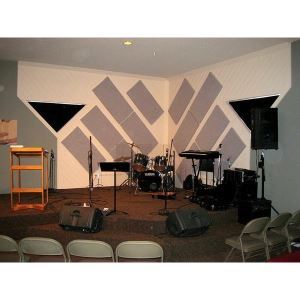

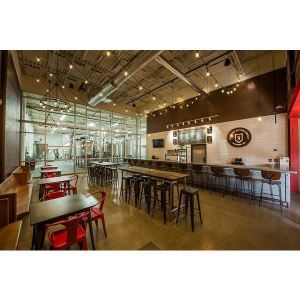

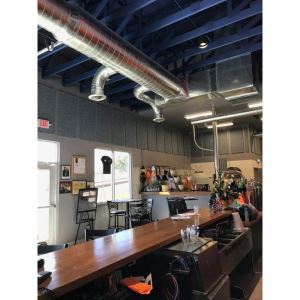

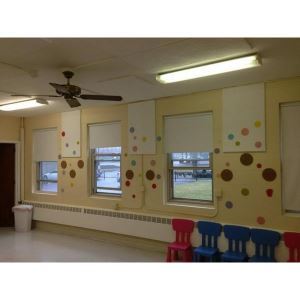

Residential, commercial, industrial; schools, restaurants, classrooms, houses of worship, community centers, offices, conference rooms, music rooms, recording studios, theaters, public spaces, medical facilities, auditoriums, arenas/stadiums, warehouses, manufacturing plants, and more.

Material Composition

Bonded acoustical cotton (B.A.C.) made from recycled fibers

Thickness

1"
2"

Density

1" 3 lb. pcf
1" 6 lb. pcf (Minimum quantities may apply)
2" 3 lb. pcf

Size

Standard Sizes
24" x 48"
Additional Sizes
12" x 12", 24" x 24", 48" x 48", 48" x 96"
Minimum quantities apply, please call for details.

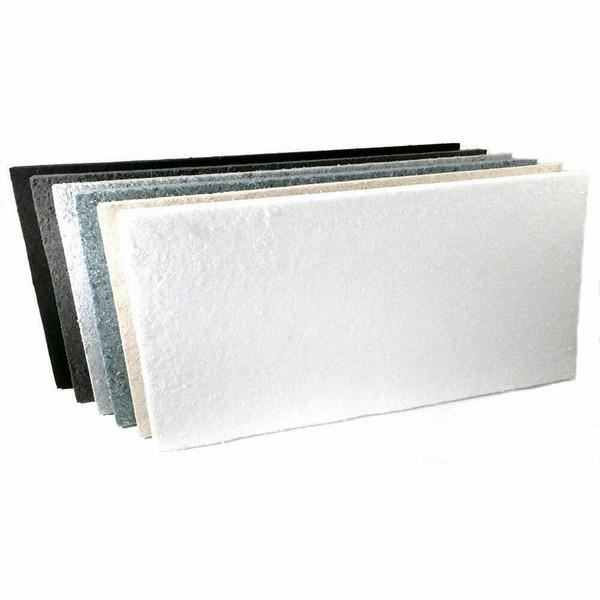

Color

White, Beige, Marble Blue, Gray, Charcoal, Black

Installation Method

Ceiling: Adhesive, Stick Pins
Wall: Adhesive

Material Performance

Fire Performance

Class A Fire Rated per ASTM E84

Thermal Resistance (R-Value)

1" 3 lb pcf - 3.8
1" 6 lb pcf - 3.8
2" 3 lb pcf - 7.5

Light Reflectance

White - 89
Light Gray - 37

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM C1338 test (No fungal growth)
