Envirocoustic™ Wood Wool Panel Designs & Patterns

Cementitious Wood-Fiber Engraved Design Acoustic Ceiling and Wall Panels

Envirocoustic™ Wood Wool Designs panels lead the acoustic panel products category with eco-friendliness, high-performance, and cost-effectiveness. Envirocoustic Wood Wool Designs panels are designed for sound absorption to tame echo and reverberation in spaces. Ecologically, the Designs Ceiling and Wall panels are simple to produce by combining water, Portland cement and wood fibers. Highly resistant to microbial and fungal growth, Envirocoustic Wood Wool Designs Ceiling and Wall panels are Class-A Fire Rated and pass the NFPA 286 fire test. The wood wool panels meet the California Department of Public Health VOC emissions standards, qualifying projects for LEED credits, and making Designs a sound choice for a variety of venues.

Wood Wool Designs panels are available as wall and ceiling acoustic board panels and in many design and color variations that can be customized to fit nearly any space or decor. Flexible, variable, and mixable, a wood wool acoustic panel is a practical solution to sound sensitive environments. Make big design statements, or keep it subtle, all while absorbing noise to make any space sound better.

Product Specs

Applications

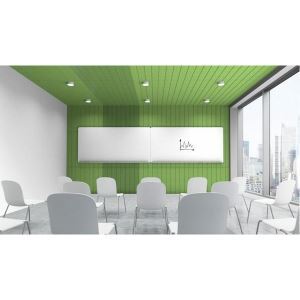

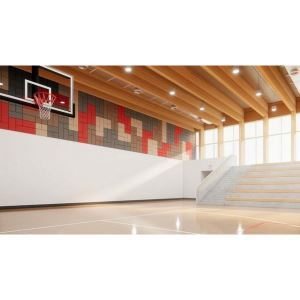

Schools and civic centers (gymnasiums, classrooms, auditoriums, music practice and band rooms), restaurants and bars, sports and entertainment venues, convention centers, houses of worship, shooting ranges, manufacturing and industrial facilities, parking garages, airports, and more.

Material Composition

Wood fiber, Portland cement, and water.
Wood fiber is a natural material, color variations may occur

Thickness

1"
1" (Microstrand)
1-3/8"
2"

Size

Standard Panel Sizes
24" x 24"
24" x 48"
Custom Panel Sizes
Up to 24" x 96"

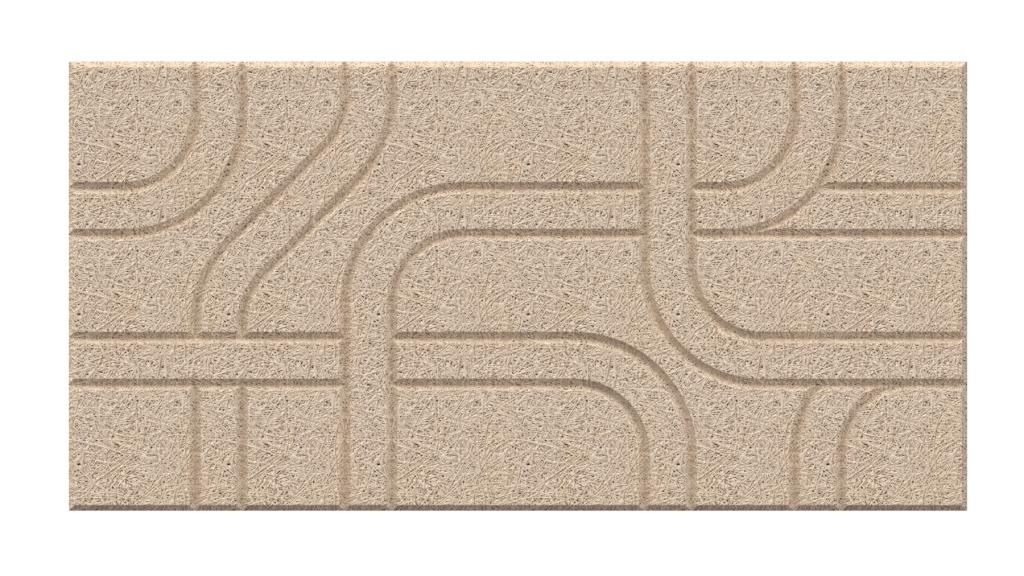

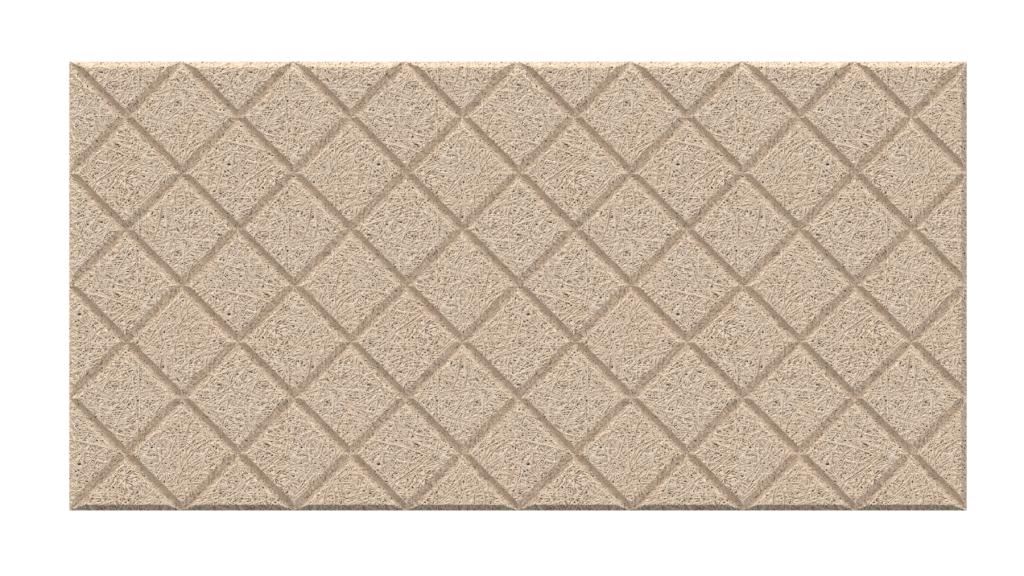

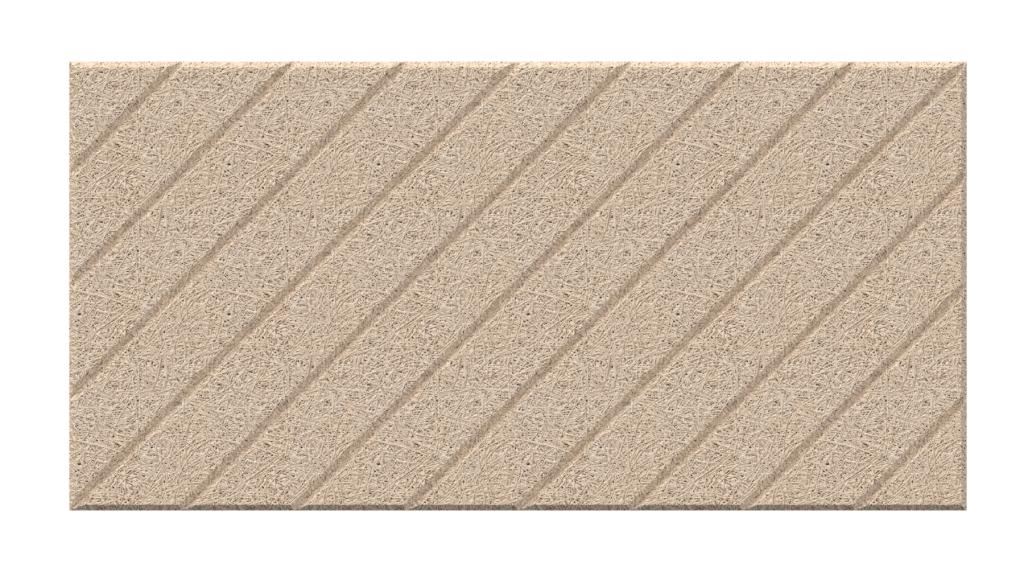

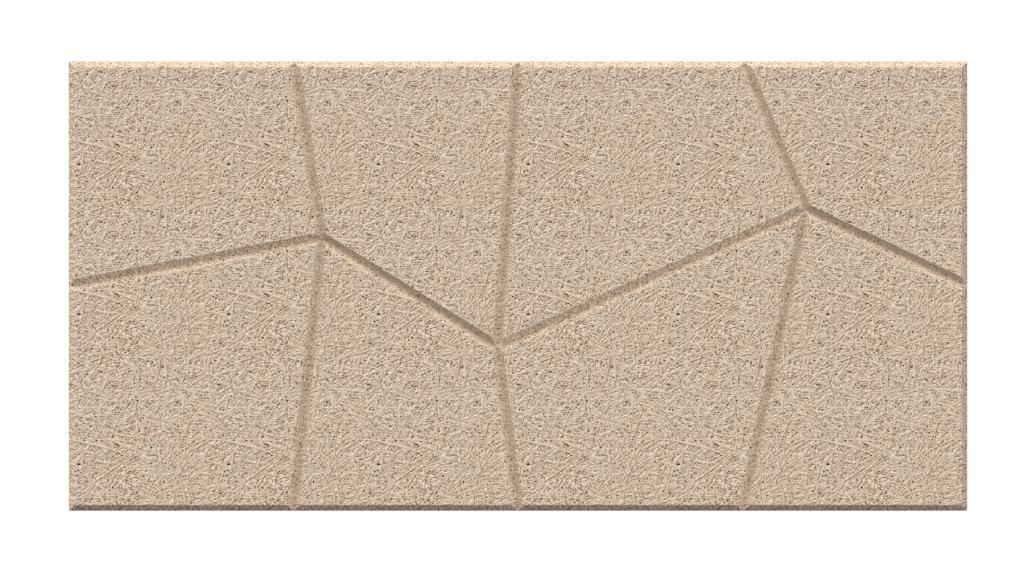

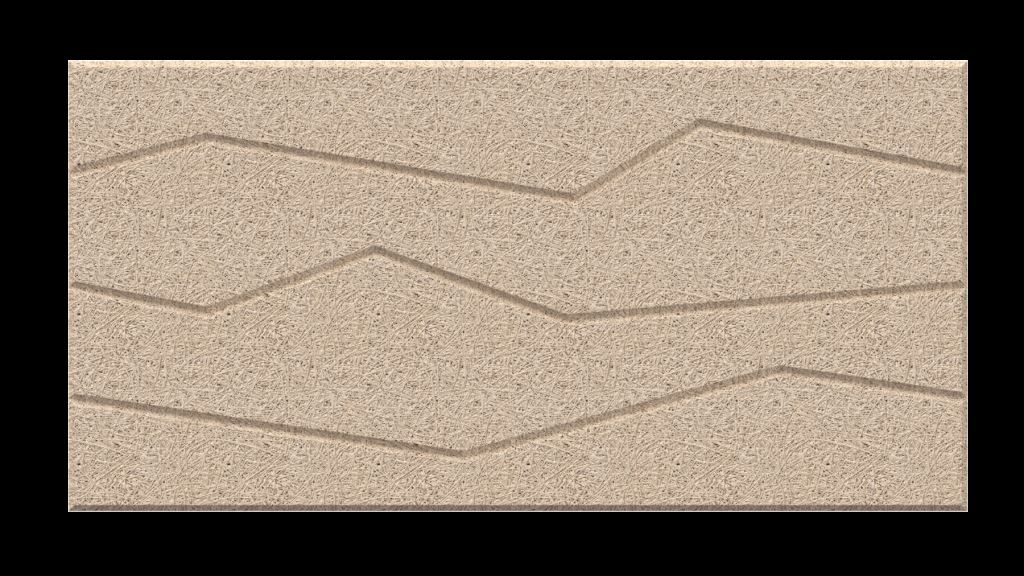

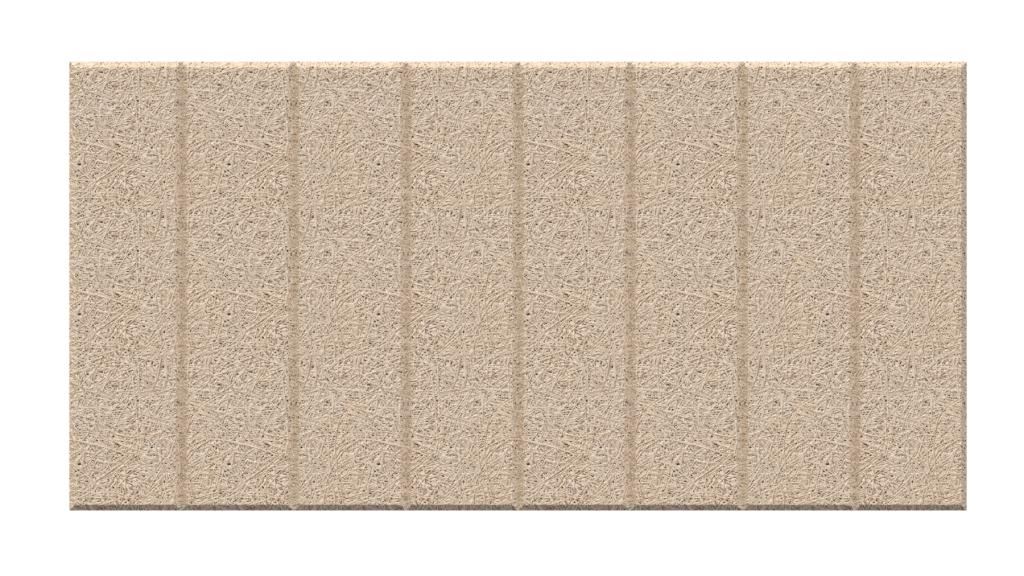

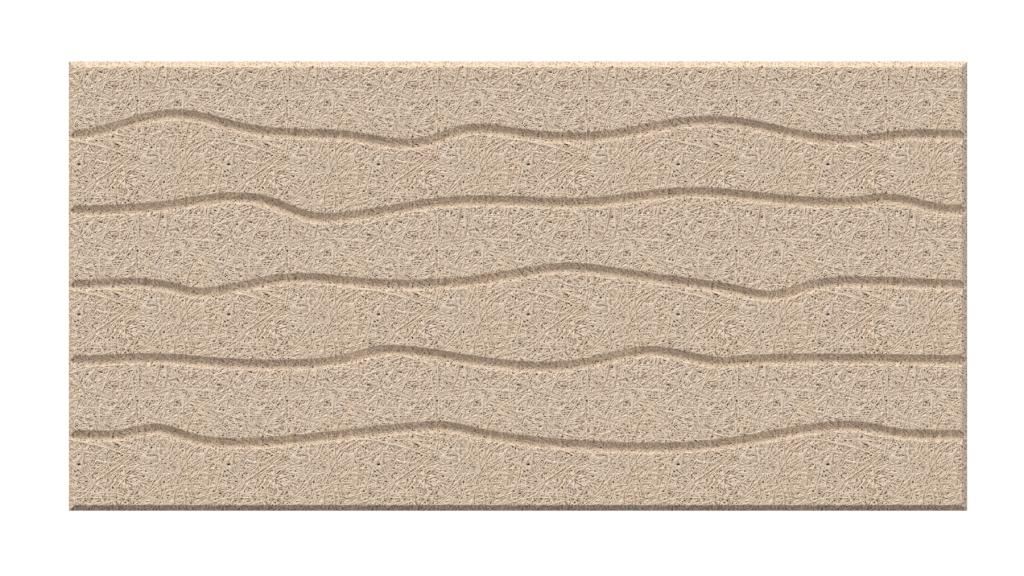

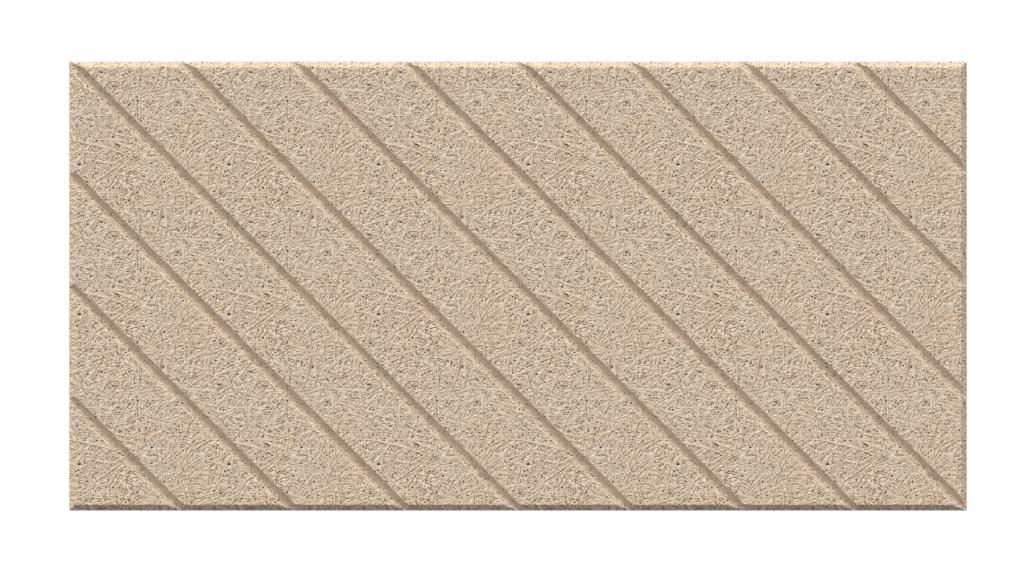

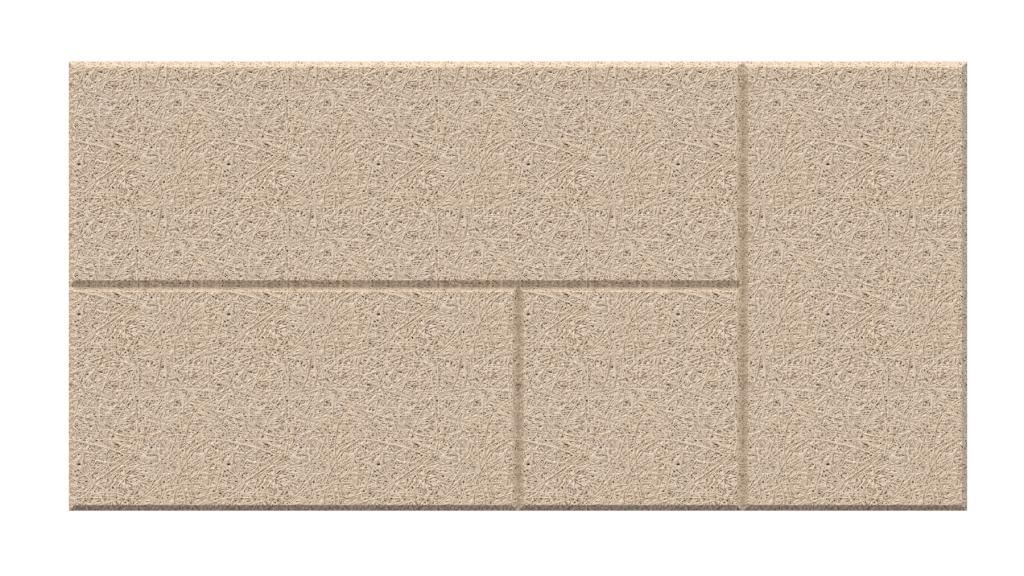

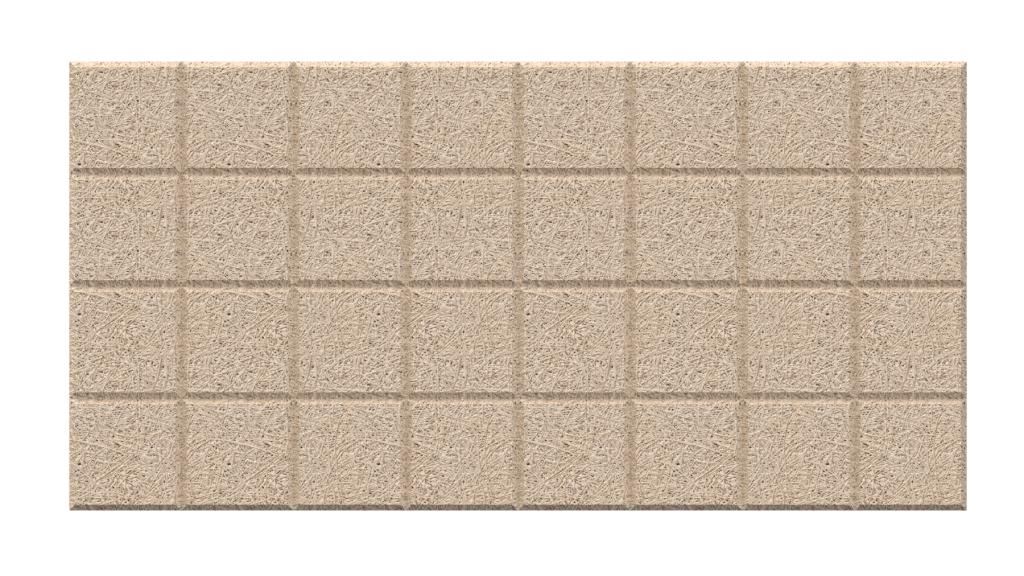

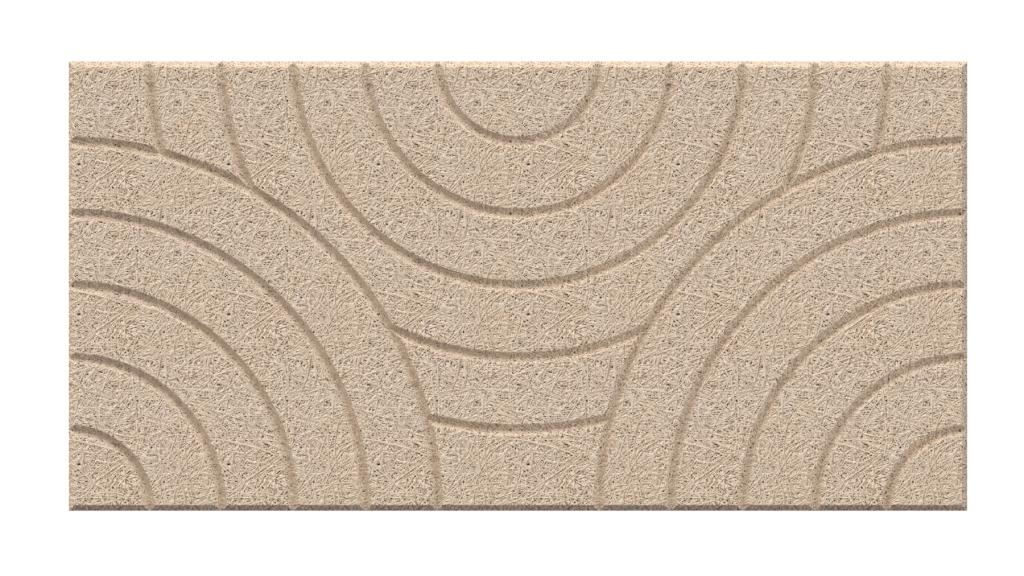

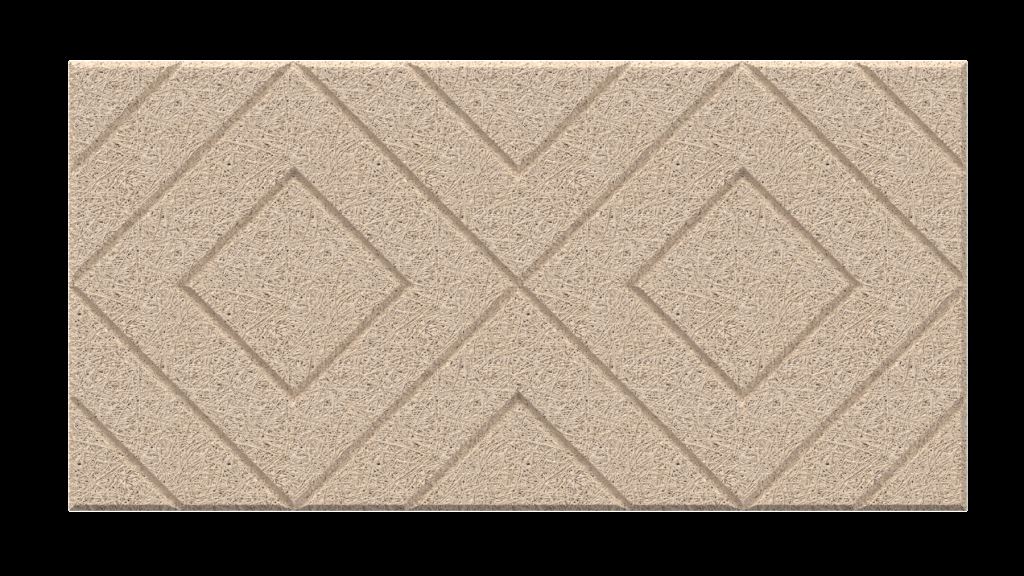

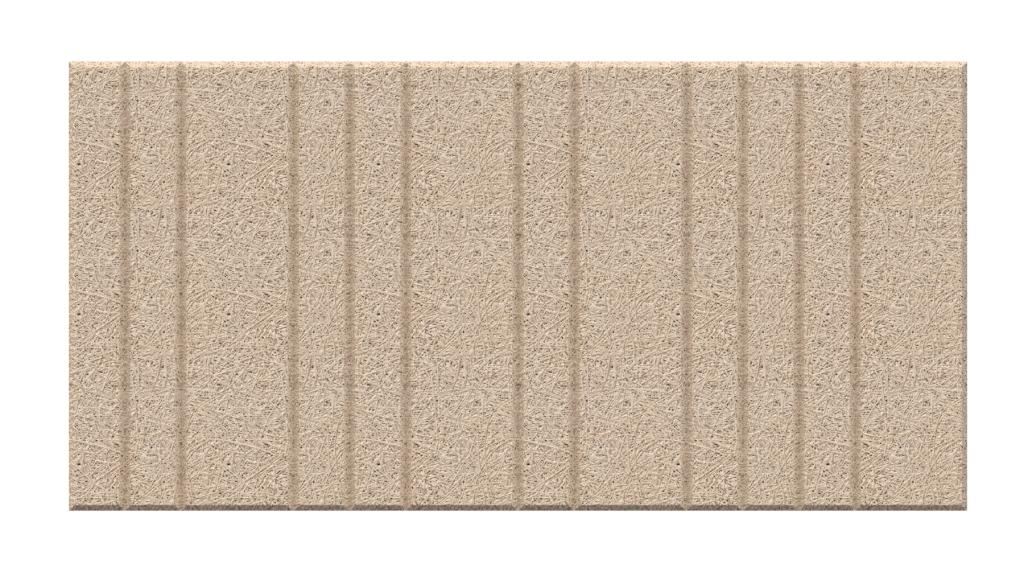

Designs

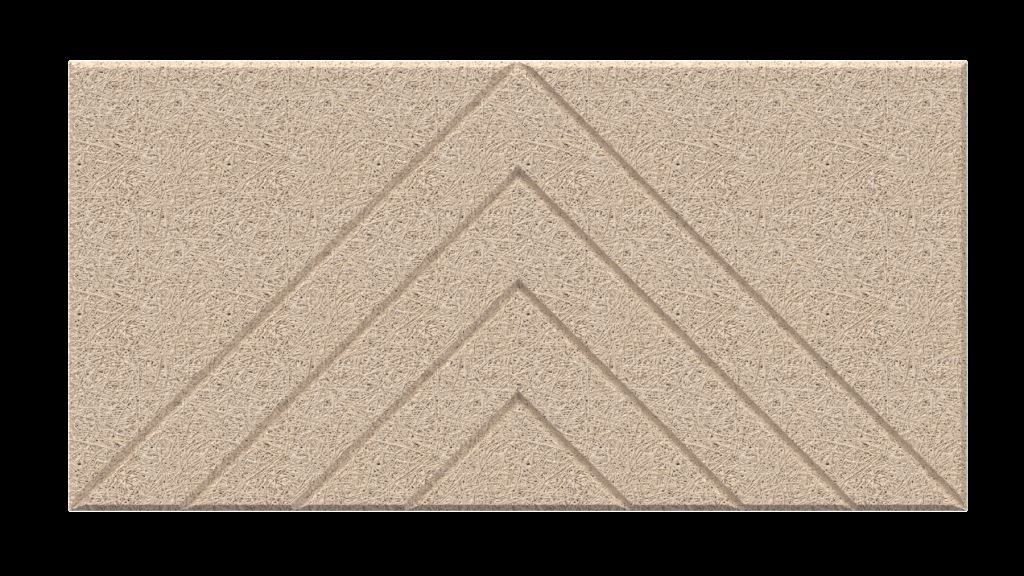

Arrow
Askew
Crackle
Crossed
Current
Downhill
Drizzle
Grid
Longitude
Latitude
Metro
Panes
Skew
Strata

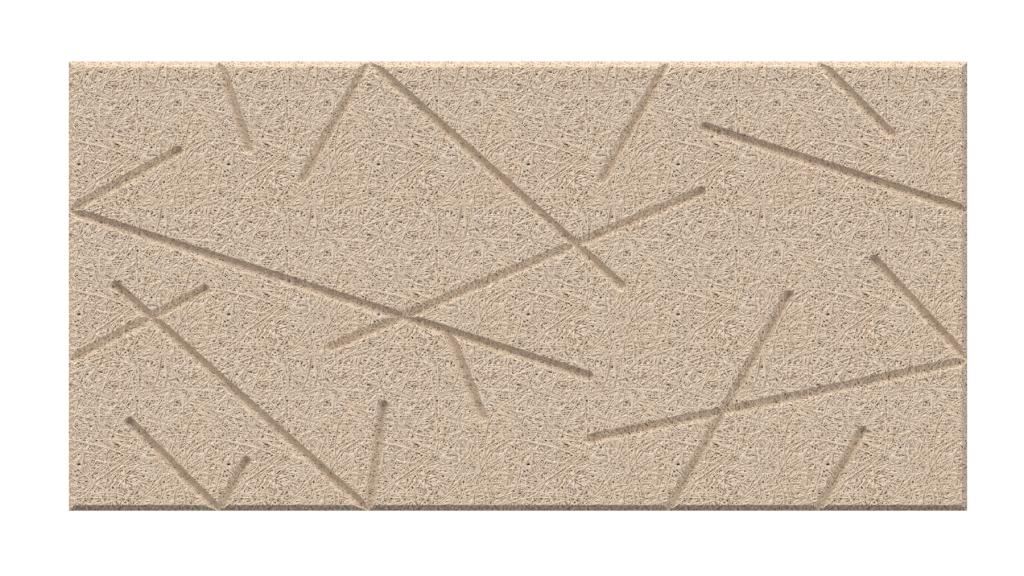

Twigs
Uphill

Edge Detail

Beveled

Finishes

Primed Clear
Primed White
Painted

Installation Method

Direct Attach

Material Performance

Fire Performance

Class A Fire Rated per ASTM E84
Passes NFPA 286 Contribution to Room Fire Growth Test

Light Reflectance

Primed Clear - 50
Primed White - 70

Environmental

Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
Passes ASTM D3273 test (100% clear of fungal growth)
Passes Mold Resistance test based on Greenguard Microbial Growth Test (Highly resistant to mold growth)

R-Value

1" R-Value: 2.32
2" R-Value: 3.74
