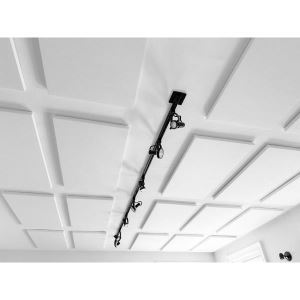

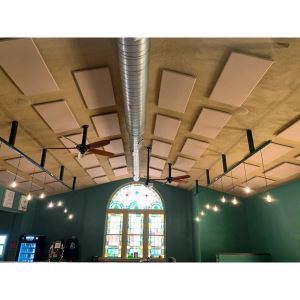

Fabrisorb™ decorative fabric wrapped acoustic panels provide high-performance noise and reverberation reduction. From movie theaters to home music production studios, Fabrisorb™ ceiling and wall panels help you create a space that is both visually and acoustically pleasing.

Category: absorbers | acoustic paneling | fire-resistant acoustic insulation...

MasterFormat: Rigid-Sheet Vinyl Wall Coverings | Fabric-Wrapped Panels | Interior Wall Paneling...

View Product Details From Manufacturer

Acoustical Surfaces, Inc.
123 Columbia Court North
Suite 201
Chaska, MN 55318
Tel: (800) 854-2948
Fax: (952) 448-2613

sales@acousticalsurfaces.com

https://www.acousticalsurfaces.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

Fabrisorb™ Fabric Wrapped Acoustic Panels

High Performance
Architecturally Decorative
Custom Engineered & Manufactured
Reduced Noise & Reverberation
100% Custom Colors and Sizes

Find out more about how Fabrisorb™ wall and ceiling panels can be utilized on your next project.

Order these custom decorative panels from Acoustical Surfaces today!

Product Specs

Material

6 lb. density glass fiber with woven fabric and micro-perforated vinyl facings.

Features

Fabric acoustic panels are custom designed and manufactured to meet every need. Soft or hard edges

Applications

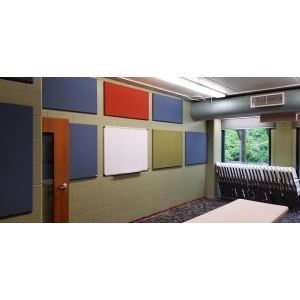

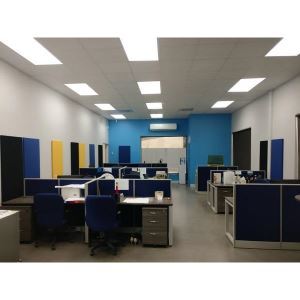

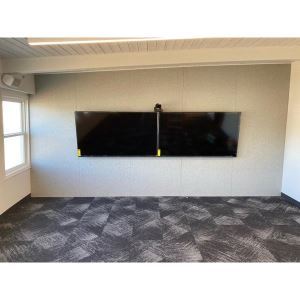

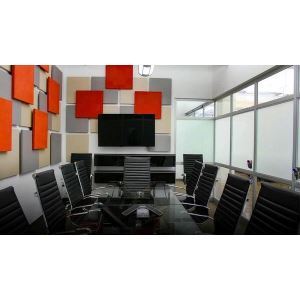

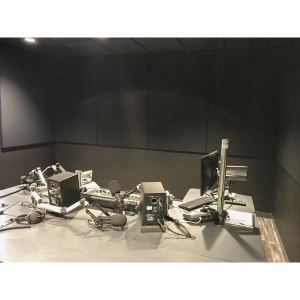

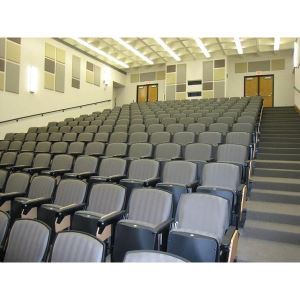

These decorative sound absorbing panels are great for offices, schools, meeting rooms, music rooms, hotels, auditoriums, recording studios, broadcasting studios. These acoustic wall panels are perfect for any space where good speech privacy or speech intelligibility is important.

Thickness

1″, 1-1/8″, 2″, 2-1/8″

Size

Custom Fabric Wall Panels Up to 4′ × 10′

Edge Detail

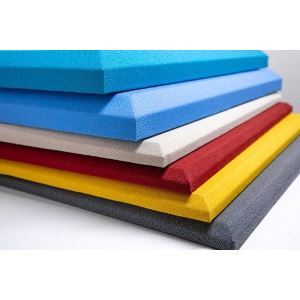

Square, Radius, Bevel, Half-Bevel

Colors

Acoustical fabric and micro-perforated vinyl facings available in a wide range of standard and custom colors. For a full list of acoustical fabric options, visit our Fabric Selection Webpage!

Flammability

Class A Fire Rated per ASTM E84

Installation

Adhesive, Hook & Loop Fasteners, Mechanical Clips, Impaling Clips, magnetic clips.

See More

See Less

Specifications

Custom Graphic Options for All Decorative Sound Absorbing Panels


High performance absorption.	Absorptive in high traffic areas.	For combined use in Studios for absorption and reflection.

Multi-purpose panel for absorption and sound blocking	For gymnasiums, absorption and abuse resistance.	For long lasting and effective tackability.

High absorption and tackability	Tackability where sound absorption is not necessary.	Barricade vinyl barrier, ideal for areas requiring high STC.

Fabrisorb™ Wall panel - Sound Absorption Coefficients

6-7 PCF Glass Fiber	125Hz	250Hz	500Hz	1KHz	2KHz	4KHz	NRC
1″	.14	.27	.80	1.11	1.14	1.14	.85
2″	.22	.81	1.24	1.30	1.21	1.16	1.15

Edge Details

Impaling Clips and Adhesive

One impaling clip is needed for each mounting locationImpaling clips are installed onto the wall to support the weight of the panels until a construction adhesive dries.

Install Location	Wall
Parts Included	(1) × Impaling Clip
Recommended Adhesive (sold separately)	Titebond Green Choice Adhesive (ASTSA28)
Part Number	HWIMP33

Fabric Wrapped Panel Hardware Pack - Impaling Clip

One hardware pack is needed for each mounting locationDrywall anchors are installed into the drywall and the screws hold the impaling clip to the anchor. Impaling clips are installed onto the wall to support the weight of the panels until a construction adhesive dries.

Install Location	Wall
Parts Included	(1) × Impaling Clip (2) × Drywall Anchors (2) × ¾″ Screws
Recommended Adhesive (sold separately)	Titebond Green Choice Adhesive (ASTSA28)
Part Number	HWFWPIMP

Fabric Wrapped Panel Hardware Pack 1

One hardware pack is needed for each mounting locationThe drywall anchors are installed onto the drywall and the screws hold one of the plastic clips to the wall. The remaining ¾″ screws are used to mount the remaining plastic clip to the mounting plate on the back of the panel. Adhesive can be used to hold the clips together to prevent the clips from detaching from one another.

Install Location	Wall or Ceiling
Parts Included	(1) × Mounting Plate (factory-installed on the back of the panel) (2) × 3″ Plastic Z-bars (2) × Drywall Anchors (4) × ¾″ Screws
Part Number	HWFWPHP1
Note	Plastic clips are also available in 21″, 47″, and 96″ lengths.

Fabric Wrapped Panel Rotofast Standard Anchor Kit

One hardware pack is needed for each mounting location. The Rotofast Standard Anchor is screwed to the wall. Mark anchor locations on panel. Push metal insert into anchor body. Position panel at pre-marked locations and push hex tool through panel face to engage anchor. Turn clockwise approximately two revolutions. Pull the driver out.For panels with tightly-woven fabric, leather, vinyl, or other specialty covering, the Rotofast Snap-On Anchor is recommended.

Install Location	Wall
Parts Included	(1) × Rotofast standard anchor (1) × Wall anchor (1) × 2″ #8 Screw (1) Rotofast standard hex tool (1) Rotofast standard driver tool
Note	Multiple kits ordered together will only include (1) Rotofast standard hex tool and (1) Rotofast standard driver tool.

Fabric Wrapped Panel Rotofast Snap-On Anchor Kit

One hardware pack is needed for each mounting location. The Rotofast Snap-On Anchor is screwed into the back of the panel. The marking plug is inserted into the anchor, then panel is pushed against wall to mark anchor locations. The ratchet is screwed into the wall at marked locations. Firmly push panels onto ratchets to complete installation.

Install Location	Wall or Ceiling
Parts Included	(1) × Rotofast snap-on anchor with ratchet (1) × Marking plug (1) × Wall anchor (1) × 2″ #8 Screw (1) Rotofast Snap-On Hex Tool
Note	Multiple kits ordered together will only include (1) Rotofast Snap-On Hex Tool and up to (6) Marking plugs.
