QFA Absorptive Exterior Grade Acoustic Curtains
QFA-2″ Quilted Fiberglass Absorbers

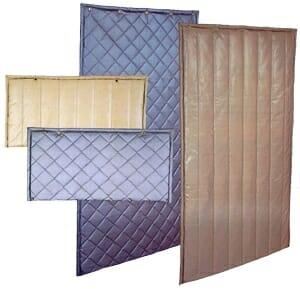

Exterior Grade Quilted Fiberglass Absorbers reduce the reflection of sound waves by covering reflective surfaces with a suitably UV-protected, porous, sound-absorbing product. The exterior Quilted Fiberglass Absorber consists of a heavy-duty vinyl-coated polyester facing on both sides of a 1” or 2″ thick quilted fiberglass. The outdoor sound barrier curtains are constructed with grommets across the top and bottom and are sewn with an exterior grade thread.
- Excellent acoustical performance
- Custom sizing
- Easy to install
- 1” or 2″ Thick Fiberglass Core
- NRC Rating .75
Product Specs Material
Fiberglass core with facings noted below
Pattern
Quilted Diamond Pattern
Features
Effective, Durable, UV Resistant, Weather Resistant, Sound Absorbing
Applications
Exterior Grade faced quilted fiberglass absorbers are used to reduce reverberant noise on permanent outdoor applications such as enclosing HVAC equipment, dust collectors or similar machinery behind a manufacturing plant where UV resistance is required. The sound reducing curtains are commonly installed over wood fencing or on brick or masonry walls of buildings adjacent to a job site or a noisy piece of machinery.
Thickness
Nominal 1”, 2”
Options
QFA-EXT-S: 1” thick fiberglass - EGV front/NPS back facings
QFA-EXT-D: 1” thick fiberglass - EGV on both sides
QFA-EXT-S-2: 2” thick fiberglass - EGV front/NPS back facings
QFA-EXT-D-2: 2” thick fiberglass - EGV on both sides
NOTE: For high-temperature conditions, a silicon impregnated vinyl is available. Please call a sales associate or email us at [email protected] for more information.
Facings
Exterior Grade Vinyl - EGV
Nonwoven Porous Scrim - NPS
Temperature Range
-40°F to +180°F
Roll Size
48″ Wide × 25′ Long
Weight
0.50 lb psf
Color
Gray, Tan, Black, Beige
Installation
Grommet Hangers
