Overview

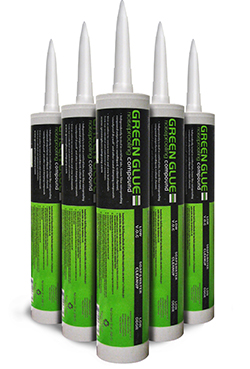

Green Glue Viscoelastic Damping Compound

Green Glue Viscoelastic Damping Compound

  1. Non-Toxic
  2. No Mixing Required
  3. Simple, Familiar, “Caulk Gun” Application
  4. Considerably Reduced Application Cost
  5. Light Material Squeezes from Tubes Easily – Low Worker Fatigue

Green Glue is a liquid, waterborne, viscoelastic damping compound which represents the highest performance product of its type. We are aware of no product available to the construction market which can deliver damping levels even 30% as high as those offered by Green Glue. It is also significantly lower in applied cost than competitive products, getting a better cost/performance ratio in the damping of normal construction materials such as drywall, wood products, etc. Finally, it is remarkably tolerant to real-world application conditions and carries almost none of the burden of precision required by many damping systems.

Product Specs


Size29 oz tube (12 tubes per case)
Active Content68% +/- 5%
Working Time>30 minutes*
Cure Time7 days
ViscosityLight Paste (65,000 cps)
OdorMild (Temporary)
VOC<2g/liter
Flash Point>200°F
Application Temperature40-90°F
Damping FactorTypically 0.50+ with 2 layers 5/8″ fire code drywall (3X higher than any competitive product we are aware of)
CoverageApproximately 16 sq ft per tube at full coverage

Walls and Ceiling:

  1. Improved Sound Isolation
  2. Constructions With Outstanding Low Frequency Isolation Are Possible
  3. Thoroughly Lab Tested
  4. Eliminates Short Circuit Risk in Resilient Channel Walls
  5. Allows Construction of the Highest Performance Walls Possible (In Combination With Double Stud Walls)
  6. Reduction in Structure-Borne Sound
  7. Low Cost Product – Great $$$/Performance

Floors:

  1. Reduced Impact Noise
  2. Improved Resistance to Airborne Sound
  3. Lower In Cost Than Most Floor Treatments
  4. Reduction In Structure-Borne Sound

Other Applications:

  1. Tremendous Performance in Risers, Equipment Platforms, Stages, and Other Unique Structures Found In Home Theaters
  2. DIY and OEM Loudspeaker Construction – More Inert Cabinets With Damping Factors Up To 20× Higher Than Raw MDF

Installation Tips:

  1. Standard Performance Requires (2) 29 oz Tubes of Green Glue per 4'×8' Sheet or Drywall
  2. For Enhanced Performance Use (3) 29 oz tubes per 4'×8' Sheet of Drywall
  3. Simply Apply Product Between 2 Layers of Drywall and Mount Drywall to Existing Wall
  4. Applying Acoustical Sealant Around The Perimeter Will Also Enhance Wall Assembly
