MS-995 Markers for Marine and Offshore

MS-995 Markers for Marine and Offshore

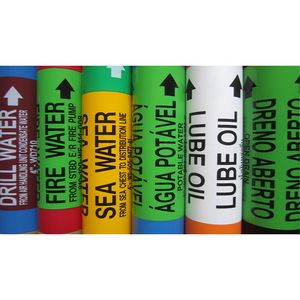

MS-995 pipe markers are manufactured for extended life in harsh surroundings involving marine and offshore environments. Use MS-995 markers to identify piping on production platforms, drill rigs, ships and FPSOs. MS-995 markers are tested and produced to withstand prolonged exposure to direct sunlight, salt water, harsh process chemicals, acids, caustics and hydrocarbons. This superior durability allows MSI to guarantee the marker for a minimum of five years or we will replace them at no charge.

  • Pre-coiled markers install easily by wrapping entirely around the pipe diameter and self-seal with a permanent lock down strip
  • Installation can be on either bare or insulated pipe, and requires no surface preparation for attachment since they bond to themselves, not the pipe surface
  • Can be removed and reinstalled
  • Service temperature range: -40°F to 250°F (-40°C to 121°C)
  • Custom pipe markers available to meet plant specific needs for color, pipe diameter and information (including From/To, P&ID numbers, line numbers, pipe contents, flow direction, etc.)
  • Comply with Regulatory and International Standards including "RECOMMENDED ISO 14726:2008 Ship and Marine Technology Identification Colors for the Content of Piping Systems" where outer bands (38mm) denote family colors (i.e. blue for fresh water, brown for fuel), and inner/center band (229mm) denotes specific services within the family (i.e. maroon for drill water, grey for distilled water).
Marker Style
Pipe Diameter
Text Height
Marker Type
A
20 mm (0.79") to 34mm (1.338")
12.70 mm (1/2")
Wrap around
B
35 mm (1.38") to 73mm (2.874")
19.05mm (3/4")
Wrap around
D
74 mm (2.91") to 121mm (4.763")
31.75mm (1 1/4")
Wrap around
E
122 mm (4.80") to 194mm (7.638")
31.75mm (1 1/4")
Wrap around
J
195 mm (7.68") to 275mm (10.827")
31.75mm (1 1/4")
Wrap around
K
276 mm (10.87") to 324mm (12.756")
31.75mm (1 1/4")
Wrap around
L
325 mm (12.80") to 396mm (15.591")
31.75mm (1 1/4")
Wrap around
N
397 mm (15.63") to 477mm (18.779")
31.75mm (1 1/4")
Wrap around
N24
478 mm (18.82") to 663mm (26.102")
31.75mm (1 1/4")
Wrap around
N30
664 mm (26.14") to 752mm (29.606")
31.75mm (1 1/4")
Wrap around
N36
753 mm (29.65") to 978mm (38.307")
31.75mm (1 1/4")
Wrap around
N44
979 mm (38.54") to 1172mm (46.142")
31.75mm (1 1/4")
Wrap around
N50
1173 mm (46.18") to 1285mm (50.590")
31.75mm (1 1/4")
Wrap around
