Overview

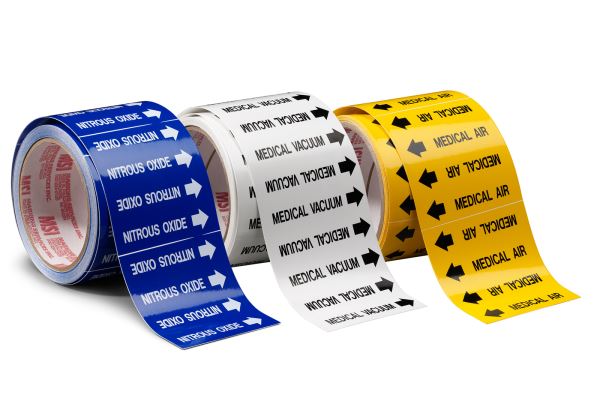

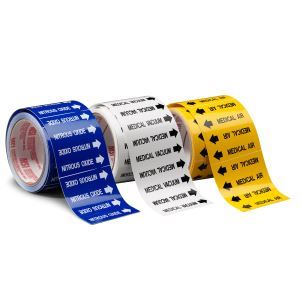

MS-900 Self-Adhesive Medical Gas Markers

MS-900 Self-Adhesive Medical Gas Markers are an economical way to mark medical gas pipes. The self-adhesive material is made with a pressure sensitive adhesive allowing for easy installation with limited surface preparation. Medical gas markers are suitable for line marking identification and system color coding.

Marker roll contains 100 labels (3" x 3").

Product Overview

  • Color, legend, and flow direction are printed on one marker.
  • Simply clean and dry the pipe prior to installation.
  • Contrast between legend and background ensures complete legibility of the contents of the pipe.
  • Manufactured per NFPA-99C; CGA C-9-2002 “Standard Industry Color Coding Recommendations for Medical Gases”.
  • Recommended for indoor use only.
  • See Technical Data Sheet for detailed specifications.

Benefits / Features

  • Self-Adhesive
  • Directional arrow and legend printed on marker
  • Wide variety of legends available
  • Custom options available upon request

Product Specifications

Base Material

Premium-grade Thermoplastic

Material Thickness

.004" (.1 mm)

Service Temperature

-50°F to 180°F (-45°C to 82°C)

Application Temperature

+50°F (10°C)

Chemical Resistance

Good

Water Resistance

Excellent

Expected Outdoor Durability

Indoor Use Only

Storage Durability

Up to 2 Years
