Overview

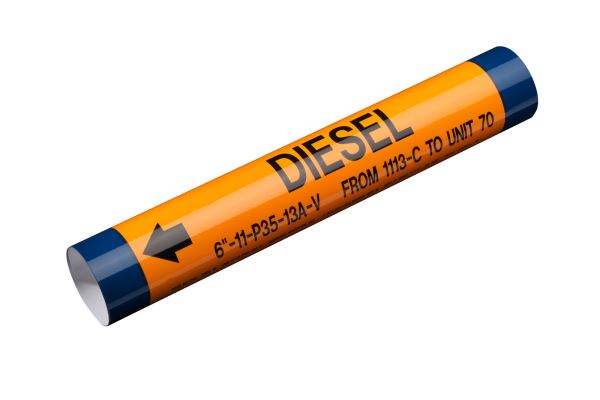

MS-995 Coiled Pipe Markers

MS-995 Coiled Pipe Markers are designed for extended life in harsh environments including exposure to direct sunlight, salt water, harsh process chemicals, acids, caustics hydrocarbons, and more. The pre-coiled design allows for easy installation by wrapping entirely around the pipe diameter and self-sealing with a lock-down strip and can be removed and re-installed. Installation can be on either bare or insulated pipe and requires no surface preparation for attachment.

Pre-Set MS-995 Markers comply with ASME A13.1, except styles J, K, L & N which do not comply with the ASME A13.1 standard regarding marker size and letter height.

Product Overview

  • Semi-rigid coiled design.
  • Adheres directly to itself.
  • Commonly used in environments involving process chemicals, food processing, pharmaceuticals, water treatment, and marine & offshore environments.
  • See Technical Data Sheet for detailed specifications.

Benefits / Features

  • Extremely durable material.
  • Excellent UV exposure resistance, making it an ideal choice for outdoor use.
  • Customizable legends and colors.
  • Easy installation with no surface preparation.
  • Can be removed and reinstalled.
  • Pre-set options comply with ASME A13.1*.

*See Technical Data Sheet for complete specifications.

Product Specifications

Base Material

Polyester w/ Protective Top Layer

Material Thickness

.006" (.152 mm)

Service Temperature

-40°F to +250°F (-40°C to 121°C)

Application Temperature

+50°F (10°C)

Water Resistance

Excellent

Chemical Resistance

Excellent

Expected Outdoor Durability

Excellent - 5+ Years

Storage Durability

Up to 2 Years
