Overview

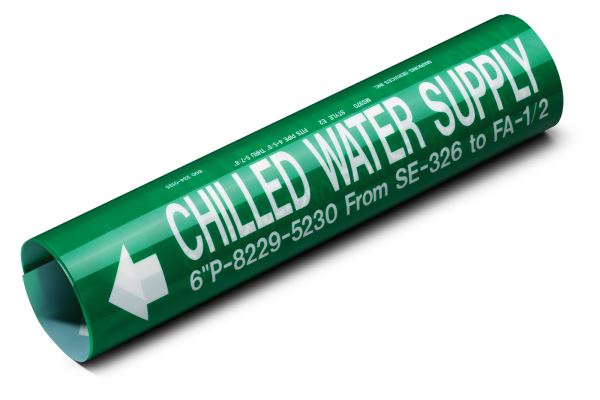

MS-970 Coiled Pipe Markers

MS-970 Coiled Pipe Markers are designed for indoor environments where high heat and harsh chemicals are not present. Constructed of a semi-rigid material, they are designed to identify piping in a wide variety of environments, including rough, oily, or wet surfaces. They stay in place on pipes due to the memory of the coiling process, and therefore do not rely on adhesives.

Pre-Set options comply with ASME A 13.1 "Scheme for the Identification of Piping Systems" regarding label colors, overall size, and text height.

Product Overview

  • Able to be installed on rough, wet, or oily surfaces
  • Indoor use only recommended
  • Not ideal for harsh environments
  • Able to be removed and reinstalled
  • Pre-set options comply with ASME A13.1
  • View Tech Data Sheet for detailed specifications

Benefits / Features

  • Semi-rigid coiled design snaps around pipe
  • No surface preparation required
  • Adheres directly to itself
  • Wide variety of pre-set options
  • Customizable

Product Specifications

Base Material

Premium-grade Thermoplastic

Material Thickness

.020” (.508 mm) - .015" (.38 mm)

Service Temperature

40°F to 160°F (4°C to 71°C)

Application Temperature

+50°F (10°C)

Chemical Resistance

Excellent

Water Resistance

Excellent

Expected Outdoor Durability

Indoor Use Only

Storage Durability

Up to 2 Years


See More
