Overview

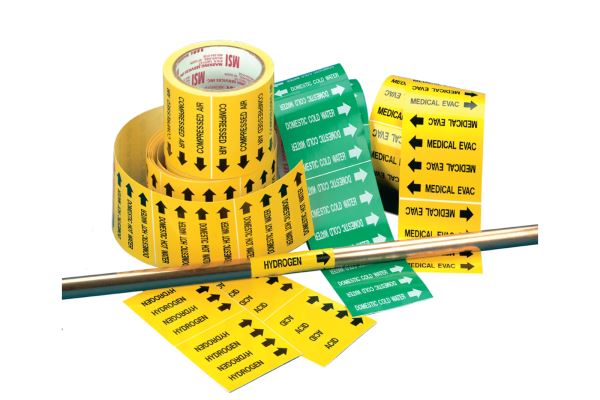

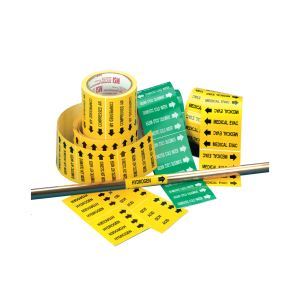

MS-900 Small Bore Markers

MS-900 Self-Adhesive Small-Bore Pipe Markers are printed on a premium quality durable material and are used to provide line service designations, system color-coding, or various other labeling requirements on piping less than 1” in diameter. Legend and flow direction arrows are combined onto 1 marker. Roll contains 100 markers (3" x 3").

Pre-set MS-900 Markers comply with ASME A 13.1.

Add UV Overlaminate for outdoor use.

Product Overview

  • Self-adhesive
  • Simply clean and dry the surface prior to installation
  • For use on piping less than 1" in diameter
  • Roll contains 100 markers (3" x 3")
  • Add UV Overlaminate for outdoor use
  • See Technical Data Sheet for detailed specifications

Benefits / Features

  • Legend and directional arrow are combined onto the marker
  • Easy installation with minimal surface preparation
  • UV Overlaminate provides excellent outdoor durability
  • Customizable

Product Specifications

Base Material

Premium-grade Thermoplastic

Material Thickness

w/o UV Overlaminate: .004" (.1 mm) - w/ UV Overlaminate: .005" (.127 mm)

Service Temperature

-50°F through 180°F (-45°C through 82°C)

Application Temperature

+50°F (10°C)

Chemical Resistance

w/o UV Overlaminate: Good - w/ UV Overlaminate: Excellent

Water Resistance

Excellent

Expected Outdoor Durability

w/o UV Overlaminate: Indoor Use Only - w/ UV Overlaminate: Very Good (Up to 5 Years)

Storage Durability

Up to 2 Years
