Overview


MS-995 Carrier Pipe Markers

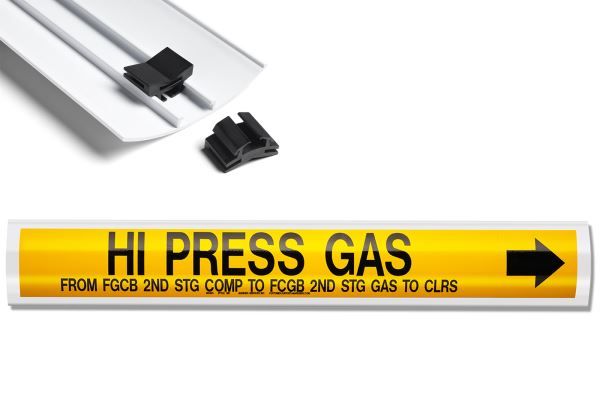

MS-995 Curved Carrier Markers are a strap-on type pipe marker consisting of a MS-995 pipe label applied to a rigid curved carrier. It may be used in all applications where the pipe outside diameter is ¾" or greater. Carriers are furnished with two nylon feet which may be installed onto the pipe prior to attaching the carrier or installed onto the carrier assembly before mounting on the pipe allowing for maximum installation flexibility. The pre-applied carrier label is furnished with a durable laminate providing maximum protection against ultraviolet light hydrocarbons, acids, bases and most solvents.

Pre-set options comply with ANSI 13.1.

Product Overview

  • Comes with 2 nylon slotted feet
  • Feet allows the carrier to sit off of the pipe surface
  • Stainless steel strapping recommended for mounting
  • For pipes ¾" or bigger
  • For indoor & outdoor use
  • See Technical Data Sheet for detailed specifications

Benefits / Features

  • Curved surface allows for less UV exposure and maximum legibility
  • Excellent chemical and water resistance
  • An ideal option for harsh environments
  • Customizable legends and sizes

Product Specifications

Base Material

Carrier: Thick co-extruded material w/UV resistant coating - Label: Polyester

Material Thickness

Carrier: .100" (2.54mm) - Label: .003" (.076 mm)

Service Temperature

-40°F to 200°F (-40°C to 94°C)

Application Temperature

n/a

Chemical Resistance

Excellent

Water Resistance

Excellent

Expected Outdoor Durability

Excellent (5+ Years)

Storage Durability

Up to 2 Years
