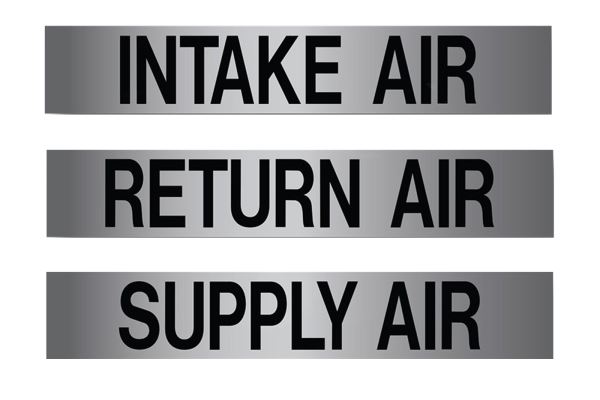

MS-900 Plenum Duct Markers

Plenum rated duct markers are metalized self-adhesive labels tested to meet the requirements of E-84-03 “Standard Test Method” for surface burning characteristics of building materials. They are designed for use in plenums to help prevent the spread of smoke and gases in the event of a fire. The self-adhesive material allows them to be easily installed with minimal surface preparation.

Product Overview

• Arrows must be added separately
• Simply clean and dry the surface prior to installation
• Indoor use only recommended
• See Technical Data Sheet for detailed specifications

Benefits / Features

• Plenum rated
• Self-adhesive
• Prevents the spread of smoke and gases in the event of a fire
• Durable material

Product Specifications

Base Material

Soft Aluminum Film

Material Thickness

.002" (.051 mm)

Service Temperature

-50°F to 350°F (-45°C to 177°C)

Application Temperature

+50°F (10°C)

Chemical Resistance

Good

Water Resistance

Excellent

Expected Outdoor Durability

Indoor Use Only

Storage Durability

Up to 2 Years
