Overview


Loading Dock Safety Barriers - Dok-Guardian

Help prevent loading dock accidents

  • Helps prevent fork trucks, pallet jacks, and pedestrians from falling off a loading dock.

  • Helps protect the dangerous 4-foot drop off at the loading dock that can result in serious injuries that are sometimes fatal.

Dok-Guardian™ is designed to withstand impact

  • Designed to stop up to 30,000 lbs. (13,636 kg). Consult the Dok-Guardian BLAST Impact Rating Chart for complete weight and speed ratings.

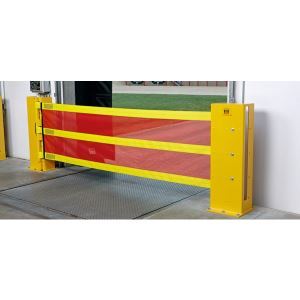

  • 44" (1120 mm) high bright red PVC-coated fiberglass mesh curtain with three bright yellow heavy-duty restraint straps.

  • Serves as a highly visible warning sign.

Flexible design

  • Operated manually and easily fits across openings up to 16'5" (5000 mm) wide.

  • Anchored on either side by 48” (1220 mm) tall yellow safety Warden guards, which provide excellent door track protection.

  • Retracts into one of the Wardens when loading or unloading trailer

  • Can be used inside a facility to separatepeople from production and material handling equipment

  • Designed to integrate with Rite-Hite's powerful Dok-Commander interlock system to ensure full time loading dock safety

  • The red light on the Dok-Lok control box indicates that the Dok-Guardian's curtain is safely locked across the opening

  • When the lock button on the Dok-Lok is pressed and the inside light turns green, the Dok-Guardian interlock releases, allowing for loading and unloading of trailer

This product may not be sold in all countries. Contact your local Rite-Hite representative for availability.
