Overview

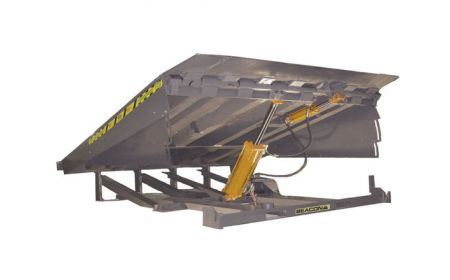

Hydraulic Dock Levelers - RHH-5000 High Capacity

The RHH-5000 High Capacity Hydraulic Dock Leveler offers the maximum safety stop and performance for heavy loads - with the smoothest transitions in the industry.

RHH-5000 Features and Benefits

  • Vacant dock drop-off protection - Exclusive Safe-T-Lip barrier helps keep forklifts from running off an open dock and can stop 10,000 lb (4535 kg) forklifts traveling at 4 mph (6.4 kg/hr). Barrier is easily removed for safe access to endloads.

  • Smooth transition - Constant-radius rear hinge, two-point crown control on the front lip hinge, and an optimized chamfer help provide the smoothest transitions for your operators, forklifts and products as they move in and out of a trailer.

  • Infinite lip control allows operator to stop platform or lip any time during leveler travel.

  • Full range free-float helps prevent safety leg interference or "stump out."

  • Velocity fuse free-fall protection stops rapid platform drop within 3" (76 mm).

  • Exclusive Safe-T-Strut™ offers a unique, through-the-lip design that supports the leveler platform and lip, keeping the strut in place even when the leveler is raised to the highest position or impacted by a forklift. Safe-T-Strut also provides lockout/tagout capability.

  • Environmentally friendly - Hydraulic fluid is biodegradable and out performs traditional industrial-grade fluid.

  • 12-month money-back satisfaction guarantee standard with all Rite-Hite products.

  • Up to 20 year money back warranty based on the Dock Leveler Investment Guide.

This product may not be sold in all countries. Contact your local Rite-Hite representative for availability.
