Wayne-Dalton -Model 800C Insulated Rolling Service Doors

DOWNLOADS

Wayne Dalton’s ThermoTite® 800C Rolling Service Door is designed to meet the tough requirements of virtually any commercial or industrial application, with the added advantage of energy efficiency.


Category: exterior coiling doors | wind rated doors | wind resistant doors...

MasterFormat: Coiling Doors and Grilles | Overhead Coiling Doors | Special Function Doors...


Related Products

Overview

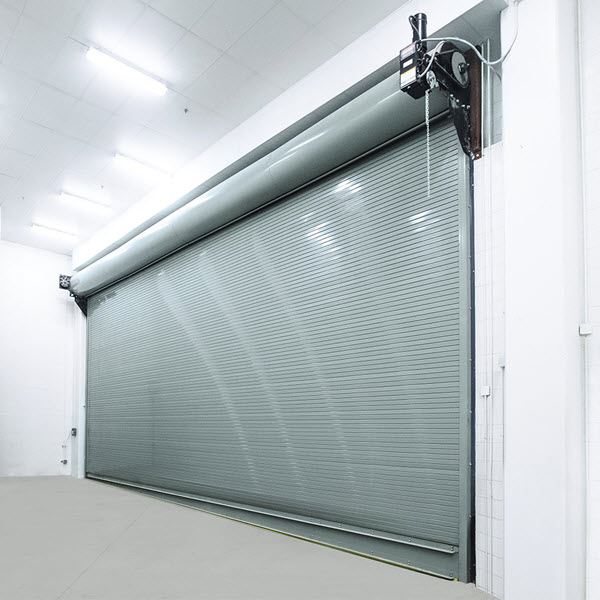

Model 800C Insulated Rolling Service Doors

Wayne Dalton’s ThermoTite® 800C Rolling Service Door is designed to meet the tough requirements of virtually any commercial or industrial application, with the added advantage of energy efficiency. The ThermoTite® 800C offers flexibility in substrate materials with choices of galvanized or primed steel, stainless steel or aluminum. This door is designed to withstand wind loads of up to ±20 psf standard, with optional wind load ratings of up to ±55 psf.

These insulated rolling service doors are composed of flat slats that provide a natural watershed, helping to reduce corrosion. Foamed-in-place polyurethane insulation with an R-value* of 7.7 fills the slat to enhance a building’s thermal efficiency. The slats are designed with free-acting interlocking joints that permit easy articulation when the door coils.

Model 800C features a strong double-angle bottom bar designed for easy installation and does not require fasteners in the guide openings, so the bottom bar does not interfere with door operation.

Features
Key Product Features
  • Model 800C
  • Max Width*: 42’
  • Max Height*: 40'
  • Max Steel Gauge: 16
  • Construction: Steel, Aluminum or Stainless steel
  • Slats: Heavy-duty 3" flat or curved
  • Wind load Options: ±20 psf standard; options up to ±55 psf
  • Bottom Bar: Double-angle bottom bar reinforces the lower edge of the curtain

*Larger sizes may be available. Maximum height and maximum width are independent of each other and may vary based on slat profile, material and gauge.

Enhancements
Options & Accessories
  • Curtain: steel, stainless steel, aluminum, G-90 galvanized
  • Locking: slide bolts, cylinder, best lock, thumb turns
  • Bottom bar: stainless steel double angle, structural steel angle construction (galvanized steel only), extruded aluminum, sloped
  • Bottom edge: astragal, pneumatic or electric sensing edge
  • Spring: up to 200k cycle, options available dependent on door size and weight
  • Perimeter seals: angled guide brush seal, clip-on vinyl guide seal, exterior lintel weather seal, interior weather baffle
  • End covers
  • Fascia
  • Drop stop device
  • Pass door
  • Vision slat
Operation Options
  • Manual push up
  • Crank (awning, wall)
  • Chain hoist
  • Motor
  • Through wall
Wind Load Options
  • Wind locks alternating or continuous with windbar
  • Articulating Windlocks for Operational wind load
  • Options available to meet up to Dade County - Florida Building Commission High Velocity Hurricane Zone (FBC HVHZ)
