Rolling Shutters - Model 523

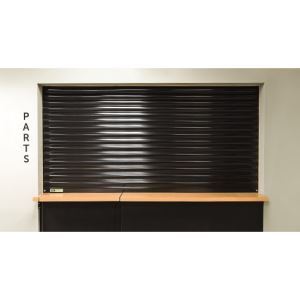

Wayne Dalton’s Model 523 are attractive security shutter doors for areas where aesthetics are a valued premium. These security shutters doors have a compact design and come pre-assembled for easy installation in areas with low headroom and sideroom requirements. Model 523 is perfect for pharmacies, hospitals, offices, schools and other retail facilities.

The design of Model 523 allows for visibility and air flow with perforation and fenestration options, ideal for retail applications. Made with extruded aluminum, the curtain has interlocking slats constructed of .05” aluminum and comes pre-assembled for easy installation. Its compact design accommodates minimal headroom requirements. To add to the aesthetics of any facility, These security shutter doors are available in four standard powder coat colors and almost 200 RAL finishes to complement the exterior of any building.

Features

Key Product Features
  • Max Width: 20' (6,096 mm)
  • Max Height: 14’ (4,267 mm)
  • Mounting: Face-of-wall or between jambs
  • Material: Aluminum
  • Curtain: Interlocking extruded aluminum slats constructed of .05 " aluminum
  • Brackets: Steel plates powder coated to match curtain color
  • Counterbalance: steel barrel; housing spring assembly
  • Hood: Aluminum square hood; powser coated to match curtain
  • Bottom Bar: Compact aluminum with vinyl bulb seal power coated to match curtain
  • Guides: Extruded aluminum channels with continuous wear strips. Powder coated to match curtain.
  • Locking: Slide bolts; interior coiling side, both left and right
  • Operation: manual push up

Door Options

Options & Accessories
  • Perforation or fenestration; full-curtain or partial
  • Interior crank or tube motor with crank for emergency egress manual override
  • Approximately 200 RAL powder coat colors or custom color to match architect specifications
  • Cylinder lock (if motor operated requires interlock microswitches)
  • Padlockable slide botls (padlock not included)
  • Interlock microswitch
  • Bottom bar step angle attachment

Perforation pattern offers 22% open area.
1" x 1" fenestrations with uniform spacing. Offers 24% open area.


See More


Specifications

Slat Styles
Standard
Perforated
Fenestrated
Finishes Options Standard Powder Coat
WhiteAlmondSilver*Bronze*

*Silver and bronze powder coat made to mimic anodized aluminum.
