Overview



Wallmate® - Stretched Fabric Acoustical Wall System


Wallmate® - Stretched Fabric Acoustical Wall System

The most user friendly, do it yourself, high tension fabric acoustical wall system in the industry.

Product Features:

  • Covers Any Size Wall
  • No Wall Preparation
  • No Lath
  • No Staples
  • No Welting/Gimp
  • Excellent Acoustical Control Finish
  • Flexible Choice of Fabrics
  • Choice of Installer or Do It Yourself
  • Removable & Replaceable Fabric
  • System is Reusable

Why Wallmate? It’s the only stretch wall system you don’t have to hire an exclusive contractor. Wallmate is great for sound control applications. You can create almost any panel size and there are hundreds of fabric options available. One benefit over traditional fabric wall panels is that the fabric can be replaced.

You no longer need to hire an exclusive local contractor to install their specified proprietary stretch fabric wall system. Wallmate® can be approved as an equal to all specified systems and has many advantages over the competition. Its unique, user friendly, hinged track system allows almost anyone to install a professional looking, high tension, stretchable fabric acoustical wall system with nearly unlimited panel sizes.

Creating Sound environments & Beautiful Walls

In this digitized, amplified, surround sound world, traditional building methods fail to provide for acoustical control of sound.

The twin problems of reflection and reverberation may require that surfaces be acoustically treated and covered with fabric as a decorative finish.

Acoustically treating walls has become as much a necessity for helping one listen to sound as quality speakers and systems are to transmitting sound.

Acoustical Surfaces Inc, presents WALLMATE®, high tension fabric mounting system that revolutionizes the way fabric can be applied to walls as both a decorative and acoustical wall finish.

Wallmate® departs from the traditional method of wall upholstery which still uses wood lath, staples, gimp and welting … a method which has become expensive and specialized. Wallmate® removes the barriers of expense and expertise and exchanges them from simplicity at an affordable cost.

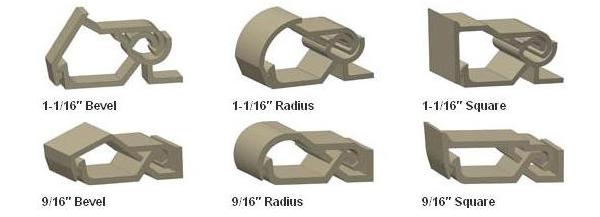

Wallmate Profiles: All Models Available in 102" (8.5 ft.) Lengths


Wallmate® - Stretched Fabric Acoustical Wall System


Echo Eliminator Panel – Sound Absorption Coefficients
  Mount 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1" 3lb/cfA.08.31.791.011.00.99.80
2" 3lb/cfA.35.941.321.221.061.031.15
1" 6lb/cfA.07.30.861.101.051.03.85


ACOUSTICAL BACKING MATERIAL: Echo Eliminator
PATTERN: Standard Guilford FR 701 Fabric Facings or any decorative fabric of choice
FEATURES: Economical, Multi-Purpose, High Performance, Durable, Easy to install
APPLICATIONS: Offices, Residences, Meeting Rooms, Apartments, Condominiums, Board Rooms, Auditoriums
THICKNESS: 1", 2"
SIZES: Custom to fit your needs
