Overview

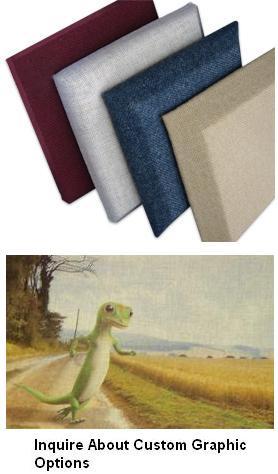

Fabric Wrapped Custom Acoustical Wall Panels

Fabric Wrapped Custom Acoustical Wall Panels

NOISE S.T.O.P. FABRISORB

Decorative Fabric Wrapped Custom Acoustical Wall Panels

  • High Performance
  • Architecturally Decorative
  • Custom Engineered & Manufactured
  • Reduced Noise & Reverberation
  • 100% Custom Colors and Sizes

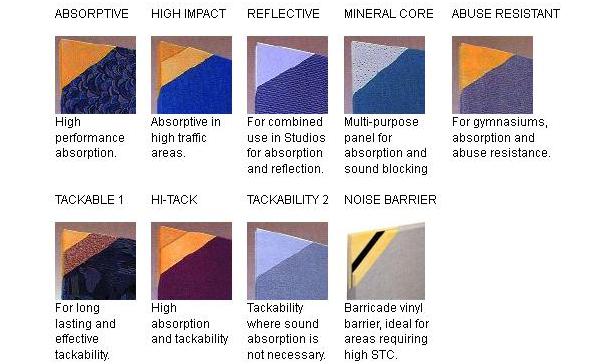

MATERIAL: 6 lb. density glass fiber with woven fabric and micro-perforated vinyl facings.
PATTERN: Flat-faced with square or radiused corners, beveled, radiused or mitered edges.
FEATURES: Custom designed and manufactured to meet every need. Flat or curved panels. Soft or hard edges
APPLICATIONS: Offices, schools, meeting rooms, music rooms, hotels, auditoriums, recording studios, broadcasting studios. Any space where good speech privacy or speech intelligibility is important.
THICKNESS: 1", 1-1/8", 2", 2-1/8"
SIZES: Custom Up to 4' × 10'
COLORS: A wide range of standard colors and custom colors are available for woven fabrics and perforated vinyls.
FLAMMABILITY: ASTM E84, Class A. Flame Spread: 15; Smoke Developed: 40
INSTALLATION: Adhesive, Hook & Loop Fasteners, Mechanical Clips, Impaling Clips, magnetic clips, splines.
Note: If using E.C. clips to mount these panels to the ceiling, the installer must use construction adhesive on each clip so the clips do not slide apart. It is also advised to toe-nail the panel into place, or use trim around the perimeter to make sure that the clips adhere together correctly.


Fabric Wrapped Custom Acoustical Wall Panels


Fabrisorb Wall panel – Sound Absorption Coefficients
6-7 PCF Glass Fiber 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1".14.27.801.111.141.14.85
2".22.811.241.301.211.161.15

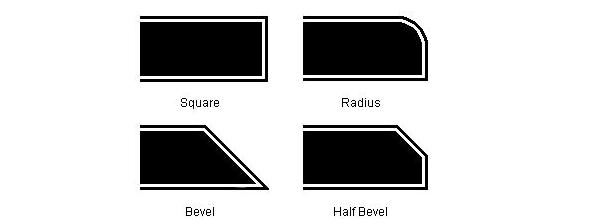

EDGE DETAILS


Fabric Wrapped Custom Acoustical Wall Panels

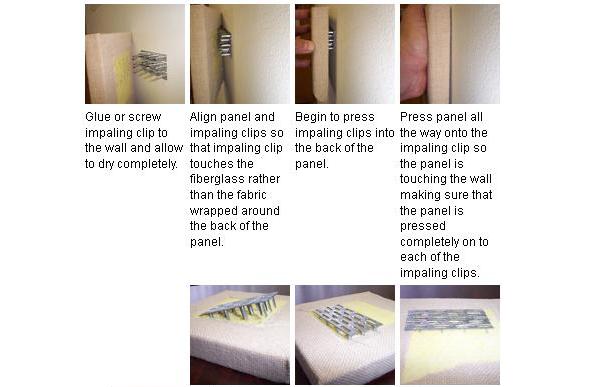

Impaling Clip Installation

Note: In the pictures below, the adhesive necessary for permanent installation is not shown.

Put a bead of PSA-29 panel adhesive around the perimeter of the back of the panel – approx ¼" bead, as well as a few locations on the back of the panel that will touch the wall between the impaling clips.


Fabric Wrapped Custom Acoustical Wall Panels

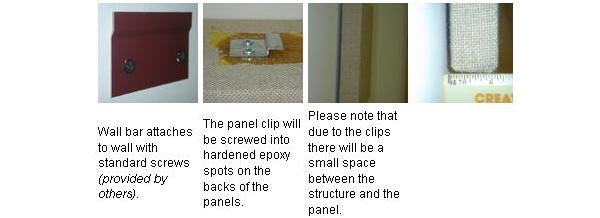

Mechanical Clip (E.C. Clips/E.Z. Clips) Installation


Fabric Wrapped Custom Acoustical Wall Panels


Note: If panels are being installed overhead, it is advised to use PSA29 adhesive to ensure that the clips do not slide apart.
