Ecoustic® Timbre Point Panel

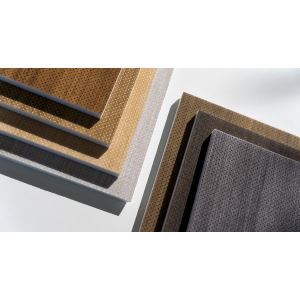

Ecoustic® Timbre Point Panel is an elegant acoustic printed panel available in 7 woodgrain printed finishes with a perforated look for improved acoustic performance. Ecoustic® Timbre Point Panels are available in three thicknesses and two sizes.
Additional Features
Designer Instyle Studio
Content 100% PET
Environment Cradle to Cradle Bronze Certified®, Declare Compliant, EPD, ISO 14001-certified EMS, Low VOC, No HAPs, Oeko-Tex® Certified, Ozone Free, Printing Ink US Greenguard Gold-certified + Ecologo certified, Prop 65 Compliant, Published with mindful MATERIALS, Rapidly Renewable Content, Red List Compliant
Performance
- NRC for the 0.35″ panel with a direct fix: 0.30
- NRC for the 0.47″ panel with a direct fix: 0.40
- NRC for the 0.47″ panel with a 2″ airgap: 0.70
- NRC for the 0.94″ panel with a direct fix: 0.65
Additional Information
- Print extends to the full panel once trimmed with no obvious repeat
- Similar to genuine wood products there may be color variations from batch to batch and across the three thicknesses
- Timbre Point Panel 0.47″ achieves a Class A for ASTM E84
- Timbre Point Panel 0.35″ and 0.94″* achieve a Class C for ASTM E84
*0.94″ panels are available in Class A upon request with minimum order requirements.
NRC Rating 0.30 - 0.95 (depending on thickness used and whether an air gap is used - See specification pages for complete details)
Dimensions 0.35” Panel: 48" x 96.1" - 0.47” Panel: 48" x 110.24" - 0.94” Panel: 49.2" x 108.24" - Refer to specifications for complete breakdown on print sizes
Flammability AS/ISO 9705 BCA Group 1, AS/NZS 1530.3, ASTM E84
