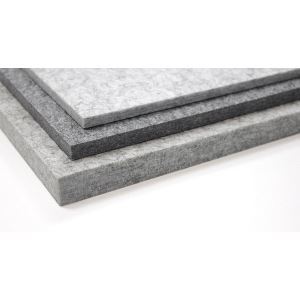

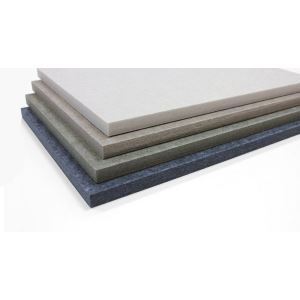

Ecoustic® Solid Color Core
An acoustic panel characterized by a solid color profile, well-suited for installations with exposed edges like workstations and partitions. Available in two thickness options for sound absorption: .47″ and .94″.
Additional Features
Designer Instyle Studio
Content 100% PET
Environment California 01350 Emissions Compliant, Cradle to Cradle Bronze Certified®, Declare Compliant, EPD, HPD, ISO 14001-certified EMS, Low VOC, No Conflict Minerals, No Fire Retardant Additives, Oeko-Tex® Certified, Prop 65 Compliant, Published with mindful MATERIALS, Rapidly Renewable Content, Red List Compliant
Performance
- 0.47″ SCC Panel achieves a 0.40 NRC with a direct fix
- 0.47″ SCC Panel achieves a 0.70 NRC with a 2″ airgap
- 0.47″ SCC Panel achieves a 0.85 NRC with a 7.9″ airgap
- 0.94″ SCC Panel achieves a 0.65 NRC with a direct fix
- 0.94″ SCC Panel achieves a 0.95 NRC with a 7.9″ airgap
Flammability Ratings - 0.47″ Cores achieve ASTM E84 Class A
- 0.94″ Cores achieve ASTM E84 Class C, Class A is available with minimum order requirements upon request.
Green Star + LEED
- Please refer to the specifications page for information on Green Star, LEED, and WELL
Additional Information
- Onsite trimming to square each panel is essential. Variation in thickness, fiber mix, color, as well as flecks and surface blemishes are an inherent and unavoidable feature. Variations from panel to panel can occur, panel joins may be obvious upon installation creating a paneling effect. Installation may require onsite adjustment by the contractor to achieve a professional finish and minimal variation Results from performance tests are guidelines only.
- Interior products must be protected from direct heat + sunlight
NRC Rating 0.40 - 0.95 depending on thickness and application
Dimensions 0.47" Panel: 110" x 48" - 0.94" Panel: 107.1" x 47.6"
Sold In Box of 4 or 5 depending on thickness
Flammability AS/ISO 9705 group 1, AS/NZS 1530.3, ASTM E84
