Ecoustic® Chamfer Wall Panel

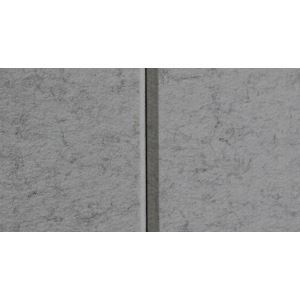

Crafted for both form and function, the Ecoustic® Chamfer Panel features a smooth, solid color core with precisely angled chamfered edges that create refined, shadowed joins, adding depth and definition to the installation. Produced using Cradle to Cradle Certified® PET, the panel’s dense yet soft-to-the-touch surface delivers warmth and sophistication while enhancing acoustic comfort. Available in two sound-absorbing thicknesses, 0.47″ (offered in 27 versatile colorways) and 0.94″ (available in 6 rich tones), each panel can be custom-sized to bring visual continuity and performance to any interior.

Designer
Instyle Design Studio

Content
100% PET (60% Recycled PET)

Environment
Cradle to Cradle Bronze Certified®, Declare Compliant, EPD, HPD, ISO 14001-certified EMS, Low VOC, No Conflict Minerals, No Fire Retardant Additives, Oeko-Tex® Certified, Prop 65 Compliant, Published with Ecomedes, Published with mindful MATERIALS, Recycled Content, Red List Compliant

Performance

• 0.47″ Chamfer Panel achieves a 0.40 NRC with a direct fix
• 0.47″ Chamfer Panel achieves a 0.85 NRC with a 7.9″ airgap
• 0.94″ Chamfer Panel achieves a 0.65 NRC with a direct fix
• 0.94″ Chamfer Panel achieves a 0.95 NRC with a 7.9″ airgap

Flammability Ratings

• 0.47″ Chamfer Panel achieves ASTM E84 Class A
• 0.94″ Chamfer Panel achieves ASTM E84 Class C. Class A is available with minimum order requirements upon request.

Published with Ecomedes

Green Star + LEED

• Please refer to the specifications page for information on Green Star, LEED, and WELL

Additional Information

• On-site trimming of non-chamfered edges is recommended to ensure panels are square. Variations in thickness, fiber composition, color, flecks, and minor surface imperfections are inherent to the material and may occur between panels. Installation may require on-site adjustments by the contractor to achieve a professional finish with minimal variation.
• Acoustic performance test results are provided as guidelines only.
• Interior products must be protected from direct heat + sunlight
• The 0.47″ Chamfer Panel has a thickness variance of +/- 0.04″ (1mm)
• The 0.94″ Chamfer Panel has a thickness variance of +/- 0.08″ (2mm)

NRC Rating
0.40 - 0.95 depending on thickness and application

Dimensions
0.47" Panel: 47.25” (W) x 106.3” (H) 0.47" (D) - 0.94" Panel: 47.25” (W) x 106.3” (H) x 0.94" (D)

Flammability
AS/ISO 9705, AS/NZS 1530.3, ASTM E84
