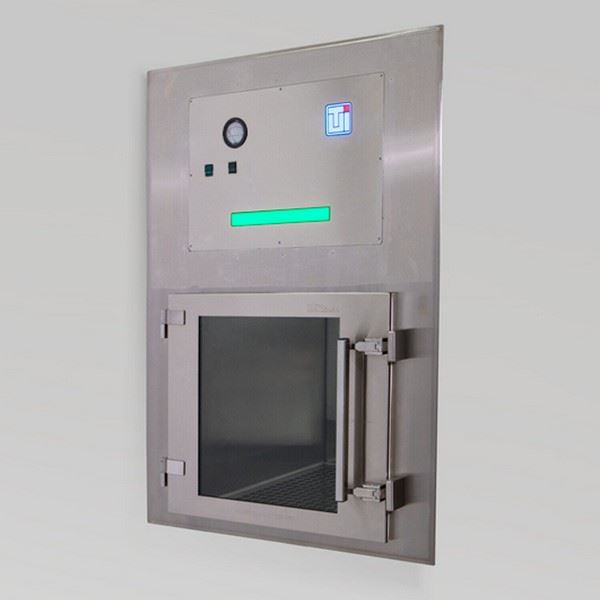

Recirculating ULPA Filtration,CleanMount CleanSeam,24x26x24 ID,Flush Wall Mount,12
- Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
- Vertical laminar flow of ULPA-filtered air removes airborne particles from the chamber
- Vents along the bottom of the chamber recirculate air back to the filtration module
- Electronic interlock with visual and audible door status alerts
- CleanMount design allows for installation without drilling and prevents cleanroom shutdown for rapid servicing or replacement
- Unit includes double-wall construction, which triples product lifespan and totally eliminates cleaning of accessories
- Blower controls include an on/off switch and infinitely variable speed control
- Includes Minihelic pressure gauge for monitoring backpressure at the ULPA filter
- Lift-off doors can be removed for thorough cleaning and sterilization
- Doors are leak-rated by UL for tight seal to maintain cleanroom pressure gradients
- WhisperFlow FFU built with quiet, low vibration design: less than 50 dBA, measured 30" from filter face at 90 FPM
- Smooth interior surfaces, with seamless radius corners and lipless access, simplify cleaning and sterilization for critical bio/pharmaceutical use
- Customer must determine if filter system leakage testing is required for their application. If a filter leak test is required, full-seam welded filter housing is optionally available, tested to meet ISO 14644-3
- Integral clean-side bracket hugs cleanroom wall without fasteners or caulking to eliminate gaps that collect germs, other contaminants
- Opposing “dirty-side” bracket snaps in place and features smooth, easy-clean surface with no visible fasteners
- Door status alerts prevent door damage that results when users exert excess force on an engaged interlock
- Smart® control system allows add-on capabilities: recessed LED or UV disinfection lamps, intercom, load presence sensors and camera, hands-free automatic door, access security system and more (order separately)
- Stainless steel-reinforced, removable doors with static-dissipative PVC viewing windows
- Stainless steel latches and hinges eliminate corrosion and contamination common with plated hardware
- Power cord included and should be hardwired to power supply onsite per local code by a licensed electrician
- Special Door Configuration: Leak-Rated
- Material: 304 or 316 Stainless Steel
- Mounting Position: Flush Wall
- Inside Width: 24"
- Inside Depth: 26"
- Inside Height: 24"
- Expand System Capabilities: 90° Corner Placement, Access Control System, Access Panel, Air Speed Sensor, Electronic Pass-Through Upgrade, Message Panel, Slide-Up Doors, UV Sanitizer, LED Lighting, HEPA-Filtration, Automatic Door, ULPA Air Shower, Intercom, Iris Scanner, Keycard Reader, Fingerprint Scanner, Video Recording, Power Outlet, Load Presence Sensor
- HEPA/ULPA Filtration: Yes
- Unit of Measure: EA
- Marks & Listings: UL, ULC
- Electrical Specifications: 120 V, 15 A, 1 Ph, 50/60 Hz
- Weight, Product: 320 lb
- Dimensions, Product: 31" W x 26" D x 45" H
- Weight, Shipping: 505 lb
- Dimensions, Shipping: 38" W x 40" D x 57" H
- Package Type: Crate
Features and Benefits Durable Double Wall Construction BioSafe double-wall construction triples unit lifespan and totally eliminates cleaning of accessories
Lift-Off, Non-Shedding Door Hinges Non-shedding, barrel-type door hinges allow the doors to lift off for thorough cleaning and decontamination (no tools required). Unlike industry standard continuous designs, these hinges comply with strict ISO levels.
All Stainless Steel FFU with Removable Filter Replacement Screen The pass through includes an all-stainless steel filter fan unit with a screen for easy HEPA filter replacement. The screen is held in place by double roller catches, which allow the screen to be easily popped out of the ceiling to access the HEPA filter.
Recirculating HEPA Filtration Diagram By recirculating the interior air, airborne particles are rapidly removed by successive passes through the HEPA filter. Recirculation also minimizes pressure buildup that can cause leakage into an adjacent positive-pressure cleanroom.
Smart® Cleanroom Pass-Through with Full-Glass Doors Hygienic and damage resistant full tempered glass doors are specifically designed for healthcare, pharmaceutical, and GMP manufacturing applications to help achieve FDA compliance. The outside surface of the tempered glass door is frameless to minimize cracks and crevices where particulates or microbes can colonize.
Air Return Slots for Recirculating HEPA Filtration Air return slots along bottom interior of the cleanroom passthrough cabinet circulate air back through the built-in fan and HEPA filter to remove airborne particles inside the chamber.
