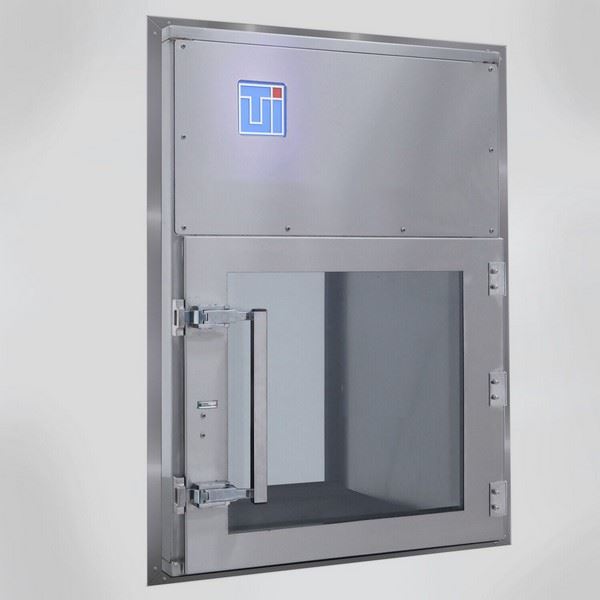

Recirculating HEPA Filtration,18x18x18 ID,Standard Wall Mount,304 Stainless Steel,240 V
- Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8

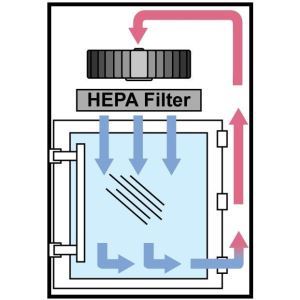

- Recirculating HEPA-filtration version adds another layer of protection against contamination for materials being transferred
- HEPA filter removes contaminating particles of 0.3 um or larger at 99.99% efficiency
- Air return slots along bottom interior of the chamber circulate air back through the HEPA filter
- Blower provides continuous operation when switched on
- Speed control knob allows adjustment of the blower RPM, increasing the airflow and pressure within the chamber
- Brushless DC fan motor is clean, quiet and energy-efficient
- Fool-proof automatic interlock mechanism prevents cross-contamination, is reliable and maintenance-free
- Upgrade to Smart® models for electronic interlock or motion sensor activation
- Doors are leak-rated by UL for tight seal to maintain cleanroom pressure gradients
- Customer must determine if filter system leakage testing is required for their application. If a filter leak test is required, full-seam welded filter housing is optionally available, tested to meet ISO 14644-3
- Inside Depth: 18"
- Inside Height: 18"
- Inside Width: 18"
- Concealed Interlock: No
- Continuous-Seam Welds: No
- HEPA/ULPA Filtration: Yes
- Material: 304 Stainless Steel
- Model: Recirculating HEPA Filtration
- Mounting Position: Standard Wall
- Special Door Configuration: Leak-Rated
- Unit of Measure: EA
- Electrical Specifications: 240 V
- Marks & Listings: UL, ULC
Features and Benefits Top-Tier Clients Terra’s key customers include some of the largest research labs, production facilities and universities in the world
Long-Standing Industry Experience For 45 years, Terra has served the life science, academic research, pharmaceutical, biotechnology, medical device, semiconductor and aerospace markets
Wide Selection of Global Shipping Options Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.
Terra's QuickBuild Program Build your system using in-stock components and accessories. We’ll assemble your system, package and ship your order in 6 business days.
Products Compliant With Your ISO Rating Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
