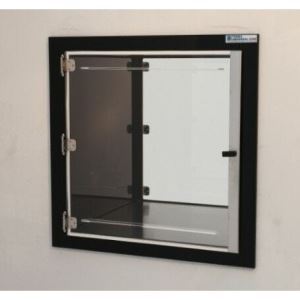

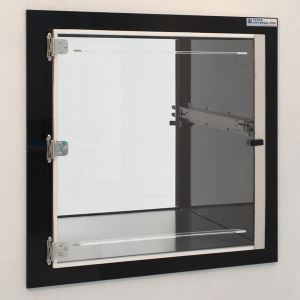

Pass-Through; ValuLine™, 18Wx18Dx18H ID, Standard Wall Mount, Black Acrylic
- ISO Rating: ISO 7, ISO 8
- Includes two sets of black acrylic mounting brackets
- Standard bracket mounting is flush on the front on the cleanroom side
- Access doors feature a stainless steel stiffener and closed-cell non-contaminating gasket
- Stainless steel work surface prevents scratching
- Dual expansion latches provide firm door closure without generating particles
- 304 stainless steel mechanical interlock automatically engages when a door is opened to prevent cross-contamination
- Self-closing 316L stainless steel hinges help both hold open and tightly close doors, plus eliminate corrosion, flaking, and contamination that commonly occur with ordinary chrome-plated hinges
- CAUTION: Acrylic is damaged by alcohol and many other cleaning agents. Use only water and mild detergent.
- Inside Depth: 18"
- Inside Height: 18"
- Inside Width: 18"
- Concealed Interlock: No
- Continuous-Seam Welds: No
- HEPA/ULPA Filtration: No
- Material: Black Acrylic
- Model: ValuLine™
- Mounting Position: Standard Wall
- Opening Dimensions: 17"W x 22"H
- Special Door Configuration: None
- Window Material: Acrylic
- Unit of Measure: EA
- Dimensions, Product: 20.25" W x 21.5" D x 23.5" H
- Dimensions, Shipping: 25" W x 23" D x 31" H
- Marks & Listings: CE
- Package Type: Crate
- Weight, Product: 49 lb
- Weight, Shipping: 110 lb
Features and Benefits Automatic Mechanical Interlock The mechanical interlock eliminates the chance of cross-contamination by ensuring that only one door at a time can open. This no-maintenance, all-stainless steel mechanism automatically engages the moment a door opens.
Stainless Steel Shield The stainless steel shield protects the chamber floor from scratches and any other damage to the plastic surfaces.
Transparent Door Transparent pass through doors with clear acrylic and static dissipative PVC options are offered in these ValuLine Pass Throughs. Compression latch and steel reinforcements provides stability to the pass-through door.
Dual Expansion Latches Swell-type latches provide a firm grip via smooth compression that does not scrape any surfaces, particularly when compared to rotary latches. The rubber collar ensures a quiet closure that also dampens vibrations.
Stainless Steel Door Guard A stainless steel stiffener reinforces the door's leading edge to provide a better seal and protect against damage. These bars also provide additional support to the door latches.
Flush Mounted Chamber The pass-through chamber mounts flush against the cleanroom-side wall to minimize horizontal surfaces where particles can collect. The main body of the pass-through extends outside of the cleanroom.
Continuous Product Improvement At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Comprehensive Product Portfolio Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.
Long-Term Customers Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers
Catalog of CE-Marked Products Terra offers over 1,700 CE-marked products configured for international voltage requirements
Products Compliant With Your ISO Rating Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
