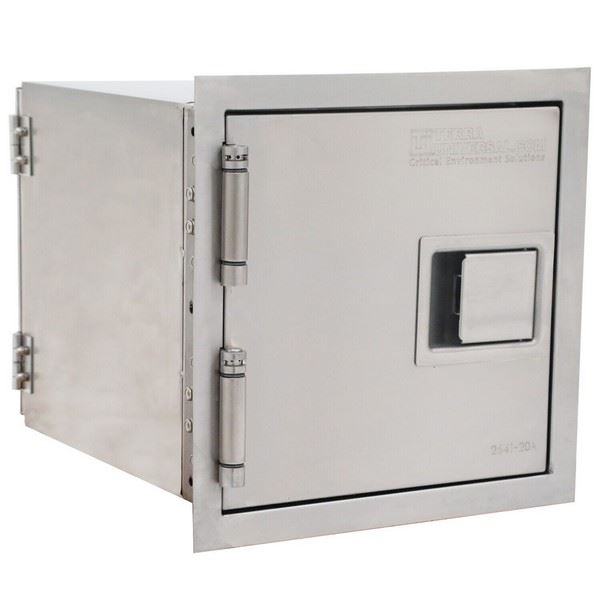

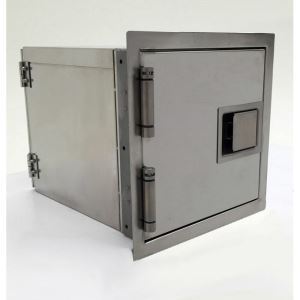

Pass-Through; Fire-Rated, 12Wx12Dx12H ID, Flush Wall Mount, 304 Stainless Steel
- Available ISO Ratings: ISO 7, ISO 8
- Interlock minimizes contamination exposure while materials are transferred to and from cleanroom.
- Stainless Steel LiftLatches don't strain to hinges and eliminates corrosion with plated hardware.
- Non-fire rated door includes static-dissipative PVC viewing window.
- Uses partial seam welds--NOT SUITABLE for biological applications

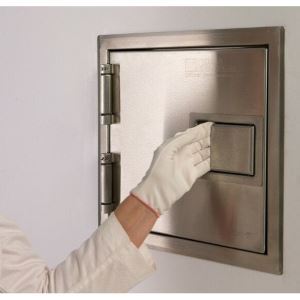

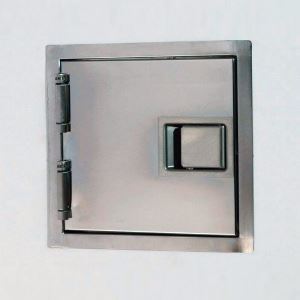

- Fire-rated access panel (door) on cleanroom side includes spring-loaded door closer
- Carries 90-minute UL and Warnock-Hersey certification for fire resistance (suitable for use on a cleanroom wall with a 2-hour rating)
- Does not include window (view light)
- Includes mounting bracket
- Inside Depth: 12"
- Inside Height: 12"
- Inside Width: 12"
- Concealed Interlock: No
- Continuous-Seam Welds: No
- Electropolished: Optional
- HEPA/ULPA Filtration: No
- Material: 304 Stainless Steel
- Model: Fire-Rated
- Mounting Position: Flush Wall
- Opening Dimensions: 10" W x 10" H
- Special Door Configuration: Fire-Rated
- Viewing Window: No
- Unit of Measure: EA
- Dimensions, Product: 15" W x 15" D x 15" H
- Dimensions, Shipping: 22.75" W x 20.25" D x 22" H
- Marks & Listings: UL, ULC, ASTME-152, NFPA 252, UL 10b, UL 26
- Package Type: Crate
- Weight, Product: 40 lb
- Weight, Shipping: 82 lb
Features and Benefits Fire-Rated Pass-Through Glass Window The wire-free glass-ceramic incorporate a surface-applied, fire-rated film and is impact rated for additional safety. These windows feature a high level of clarity and offer protection from either side.
Pass-Through Chamber Interlock Terra’s automatic mechanical interlock prevents cross-contamination by allowing one door to be open at a time. Encased in stainless steel, the mechanism is rated for millions of operations, more than enough to last the lifetime of the pass-through.
High Caliber Hardware Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Stainless Steel Reinforced Doors and Handles Doors on professional-grade pass-through chambers are reinforced with stainless steel frames, which lend rigidity, improve the seal, and extend the service life of the doors.
One Piece Elastomer Gasket The white, “e”-shaped gasket provides a flexible seal that will not creep or deform over time. The gasket is made of a non-outgassing, thermoplastic elastomer that is resistant to harsh chemicals and extreme temperatures.
Spring-Loaded Fire-Rated Passthrough Hinge Spring-loaded hinges provide the self-closing capability required in a fire-rated wall. Automatic closing doors also simplify operation for operators with hands full.
Insulated Fire-Rated Pass-Through Door Terra’s fire-rated door meets UL 10B requirements for 90-minute fire exposure, including hose-stream testing. The inside of the door is lined with 2”-thick SuperWool® Plus insulation to reduce heat transfer from elevated room temperatures.
High Caliber Hardware Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
UL-Listed Fire-Rated Doors and Windows for Highest Safety and Quality Ensuring the safety of your personnel, equipment, and facility is essential. UL is recognized around the world as the leader in product safety testing and certification. Terra's UL-listed fire-rated doors and windows are manufactured to the highest standards to maintain the integrity of your facility’s certified fire-rated wall.
Continuous Product Improvement At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Long-Term Customers Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers
Comprehensive Product Portfolio Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.
Products Compliant With Your ISO Rating Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
