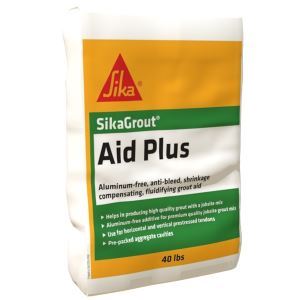

Grout Aids - SikaGrout® Aid Plus

Aluminum-free, anti-bleed, shrinkage compensating, fluidizing grout aid

SikaGrout® Aid Plus is a balanced blend of fluidizing, water reducing, shrinkage compensating and bleed reducing admixture for portland-cement grouts.

• Help in producing high quality grout with a job site mix.
• Pre-packed aggregate cavities.

Usage

• Use for horizontal and vertical prestressed tendons.
• Pre-packed aggregate cavities.

Advantages

• Help in producing high quality grout with a job site mix.
• Pre-packed aggregate cavities.

Packaging

40 lb (18.1 kg) bag

Color

Gray powder

Product Details

Product Information

6 months from date of production if stored properly in original, unopened and undamaged sealed packaging

Store dry at 40-95 °F (4-35 °C)

Protect from moisture. If damp, discard material.

Application

Application Information

3-4 % of SikaGrout® Aid Plus per 100 lb. of cementitious material.

SikaGrout® Aid Plus shall be placed within 60 minutes of mixing.

Application Steps

Mix Design

• The following typical mix design shall only serve as a guide.
• Pretesting of the admixture with the local cement is a must.
• Product performance shall be established and monitored to ensure compliance with the requirements.
• Variance in cement can produce a shift in expected results.

Mixing

• Mixing should be in accordance with the PTI Guidelines as stated in section 5.6.1 (Second edition).
• The following order should be followed for adding the ingredients: Water, Approx. 50 % cement, SikaGrout® Aid Plus, and remaining cement.
• The water to powder ratio should be targeted around 0.28-0.30.
• Mixing shall be of such duration so as to obtain a uniform homogenous mixture without excessive temperature increase. Typical mixing time range from 4-6 minutes.
• Optimum performance of the admixture in a grout shall be obtained by using high speed drill with a 2,000-2,500 rpm drill a or colloidal mixer like ChemGrout CG 600.
• Method of mixing may significantly effect the grout properties, particularly flow.

• All pumps and hose fittings should be absolutely watertight to prevent loss of water and subsequent clogging.
• Be sure your batches are limited in size so that placement can be completed approximately in one hour.
