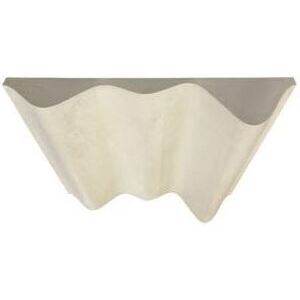

Waveform® Spline G3 Panel

The Waveform^® Spline G3 Panel represents the continuing evolution in architectural acoustics toward quantifiable, organic shapes. Developed using RPG’s powerful shape optimization and aperiodic modulation technology, they are designed to blend the direct and reflected sound to increase intelligibility and enhance musical clarity and intimacy in performance spaces such as auditoriums, band rooms and choral rooms. One of the most powerful one-dimensional sound diffusers available today, the asymmetric Waveform^® Spline G3 Panel is constructed of non-combustible glass fiber reinforced gypsum (GFRG). They can be arrayed to reduce periodicity effects and be installed on walls or ceilings.

Available in a natural/raw GFRG finish to be painted on-site or factory color-matched to any paint color specification.

Glass Fiber Reinforced Gypsum (GFRG)

Diffusion

Non-Combustible

3.00

Overhead mounting of the Waveform^® Spline G3 Panel is achieved by suspending units from integrated hairpin loops using RPG-supplied engineered cables and hardware. Each panel can be hung as a “cloud” or screwed together to create a canopy. Units can also be mounted directly onto walls using RPG-provided integrated cleats.

Features

• Offers an attractive, acoustically optimized canopy and wall treatment for large, performance driven spaces for music, theater and lecture.
• Broad bandwidth sound diffusion can be arrayed into very large areas.
• Standard sizes available are nominal 4″ W x 4″ L x 9-3/4″ D.
• Choose from any commercially available paint color.
• Stable, non-combustible glass reinforced gypsum is an excellent choice for commercial projects and offers LEED points.
• Asymmetric by design and patented, the Waveform Spline G3 can be array optimized to reduce periodicity effects.
• Canopy layouts can be sequence optimized, along the length of the hall for both height and tilt, for further improvement in coverage and scattering.
