3000 Series Operable Walls

  • Premium sound control - Up to 56 STC.
  • 4” panel thickness.
  • Welded steel frames, steel skins.
  • Superior panel durability.

Category: 102000 | ecclesiastical furnishings | gymnasium dividers...

MasterFormat: Interior Specialties | Partitions | Operable Partitions...



Kwik-Wall
4650 Industrial Ave.
Springfield, IL 62703
Tel: (800) 280-5945

info@kwik-wall.com

https://kwik-wall.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


3000 Series Operable Walls

3000 Series Operable Walls

  • Premium sound control - Up to 56 STC.
  • 4” panel thickness.
  • Welded steel frames, steel skins.
  • Superior panel durability.
  • ADA pass doors.
  • Multiple panel storage options.
  • Panel heights to 30 feet *.
  • Unlimited opening widths.
  • Unlimited panel finish options
  • Invisible Hinges - (optional).
  • Insulated glass unit panel inserts (optional)

The industry’s premium performance steel panel operable wall, engineered at 4” panel thickness and manufactured for rugged durability to fit openings up to 30’ tall, and in unlimited opening widths. Series 3000 steel panels are certified by independent acoustical laboratory testing to achieve the industry’s best-in-class acoustic performance up to 56 STC.

Series 3000 steel panel operable walls from Kwik-Wall provide maximum versatility for complex layout and panel storage challenges in large conference rooms, multi-purpose facilities, hospitality meeting spaces, and convention centers.

Performance-proven in high-use facilities around the world, when your project demands the best, Kwik-Wall Series 3000 operable walls deliver.


See More


Specifications

Kwik-Wall 3000 Series Operable Walls Panel Configuration Options
Individual Panels – Model 3010

  • Decision-free radius curve and diverter track, with pre-programmed carriers.

Individual Panels – Model 3020

  • Multi-directional track with 90-degree X- L- T track Intersections.

Paired Panels – Model 3030

  • Panels hinged together in pairs of two for fast and easy setup.

Continuously-Hinged Panels – Model 3050

  • Centerline, automated electric operation, all panels hinged together.

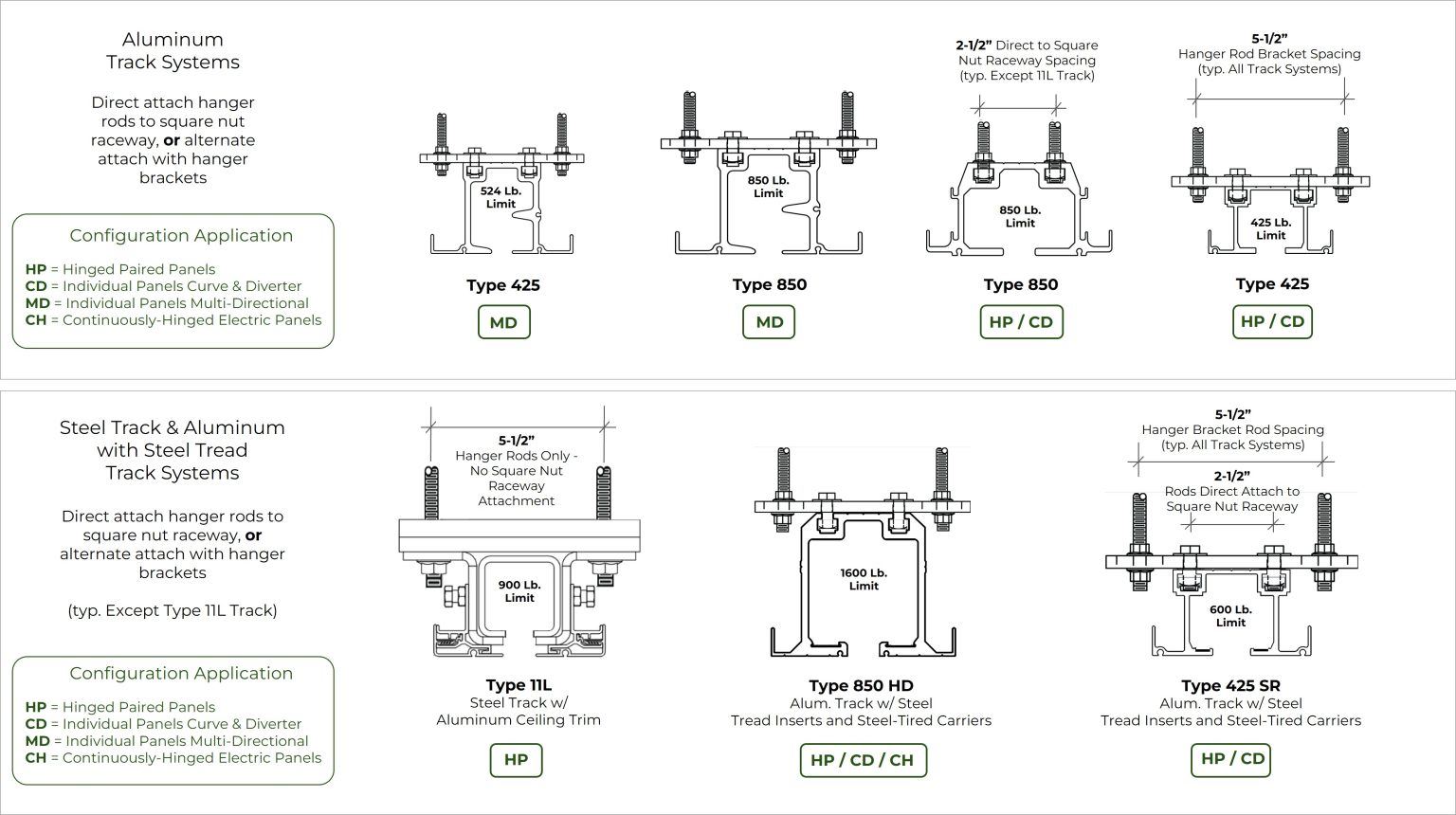

Kwik-Wall track and carrier systems are precision-engineered to support panel weights based on the STC panel construction and partition height, facilitating smooth, quiet panel operation across track joints. Type 425 and 850 clear anodized aluminum track extrusions and Type 425 and 850 Steel Track [aluminum extrusions with steel tread liner and steel wheel carriers] deliver clean, crisp lines at your track and ceiling interface.

Kwik-Wall backs all of our track and carrier systems with an industry-best 10-year warranty, so you can be confident they will provide continuous service for your operable walls!

* Paired Panel Max. Height 24’-2”

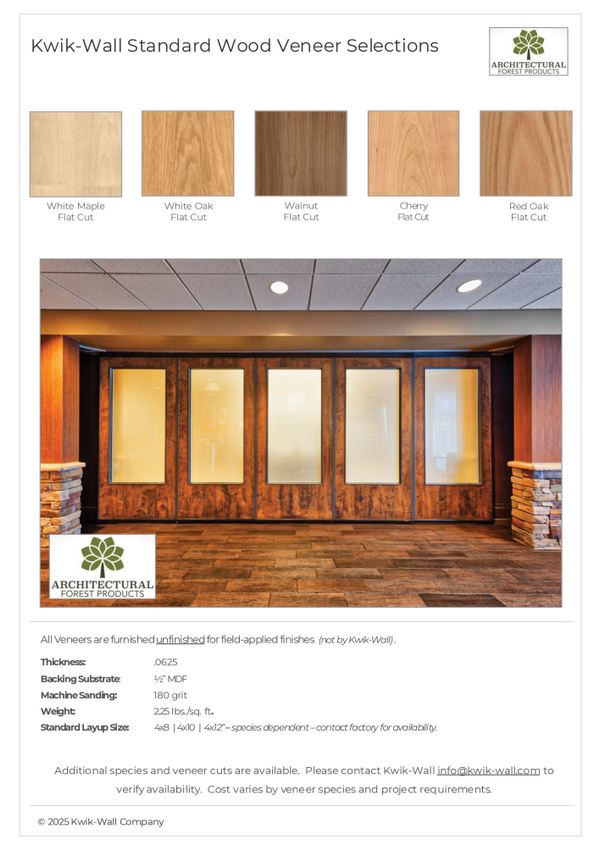

Note: HPL and Veneer Finishes require acoustic substrate application which affects STC options.
