Kwik-Wall -2000 Series Operable Walls

DOWNLOADS

The industry’s most versatile 3” performance operable wall, engineered and manufactured for rugged durability, 2000 Series Operable Walls from Kwik-Wall


Category: 102000 | ecclesiastical furnishings | gymnasium dividers...

MasterFormat: Interior Specialties | Partitions | Operable Partitions...


View Product Details From Manufacturer


Kwik-Wall
4650 Industrial Ave.
Springfield, IL 62703
Tel: (800) 280-5945

info@kwik-wall.com

https://kwik-wall.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

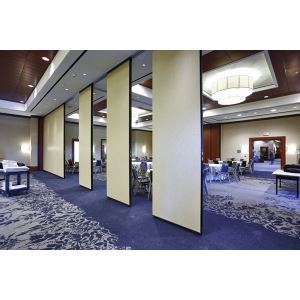

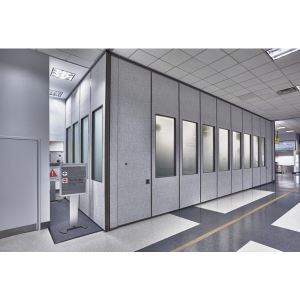

2000 Series Operable Walls

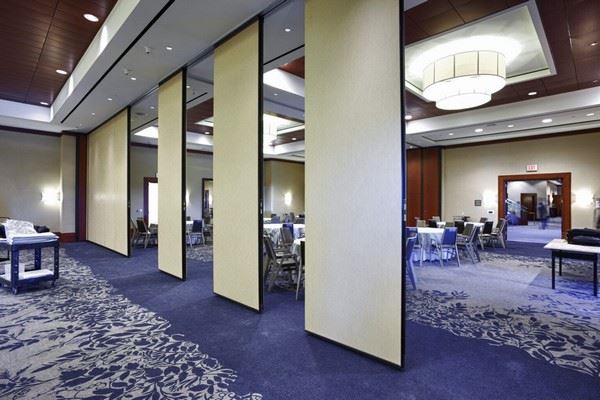

The industry’s most versatile 3” performance operable wall, engineered and manufactured for rugged durability, 2000 Series Operable Walls from Kwik-Wall are available in a nearly unlimited variety of designer finishes in multiple laboratory-certified STC sound control ratings. With single panel, paired panel and continuously-hinged electric panel configurations, 2000 Series operable walls combine a vibrant designer aesthetic with the versatility to fit even the most complex layout requirement.

2000 Series Operable Walls

  • Exceptional sound control - Certified 42-52 STC.
  • 3” panel thickness provides the most compact storage footprint, and matches legacy operable wall installations, eliminating the need for storage pocket alterations on panel replacement projects.
  • Welded steel frames with structural acoustic substrate or steel panel skins.
  • Superior durability - panel heights to 16 feet*.
  • ADA pass doors, marker boards & tackable surfaces.
  • Multiple panel storage options.
  • Unlimited opening widths & panel finishes.
  • Vertical protective trim, or untrimmed for clean-line vertical panel joints.
  • Insulated glass unit inserts (optional)


See More


Specifications

Kwik-Wall 2000 Series Operable Walls Panel Configuration Options
Individual Panels - Model 2010

  • Decision-free radius curve and diverter Track, with pre-programmed carriers.

Individual Panels - Model 2020

  • Multi-directional track with 90-degree X- L- T track Intersections.

Paired Panels - Model 2030

  • Panels hinged together in pairs of two for fast and easy setup.

Continuously-Hinged Panels - Model 2050

  • Centerline, automated electric operation, all panels hinged together.

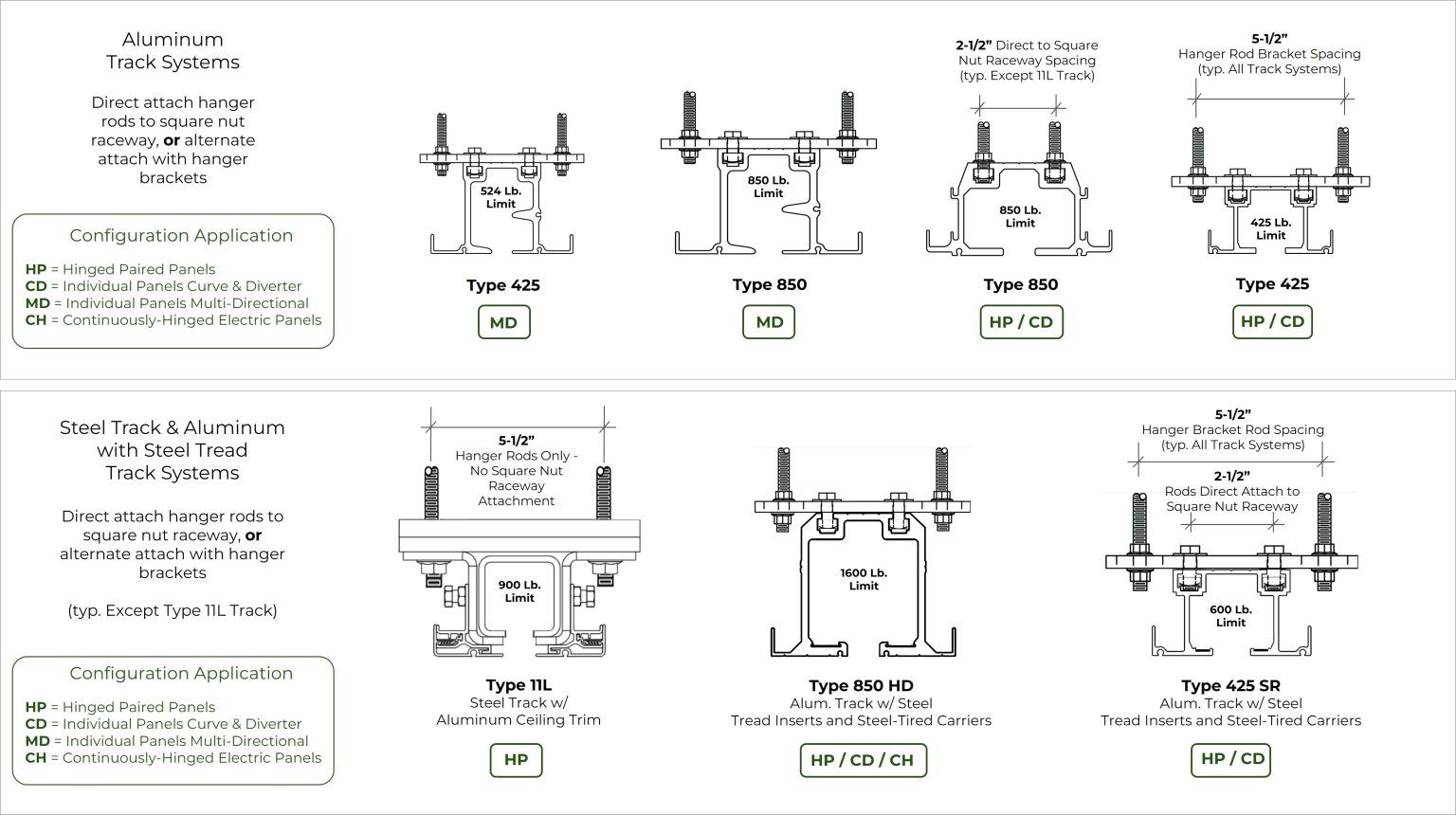

Kwik-Wall track and carrier systems are precision-engineered to support panel weights based on the STC panel construction and partition height, facilitating smooth, quiet panel operation across track joints. Type 425 and 850 clear anodized aluminum track extrusions and Type 425 and 850 Steel Track [aluminum extrusions with steel tread liner and steel wheel carriers] deliver clean, crisp lines at your track and ceiling interface.

Kwik-Wall backs all of our track and carrier systems with an industry-best 10-year warranty, so you can be confident they will provide continuous service for your operable walls!

* Paired Panel Max. Height 14’2”

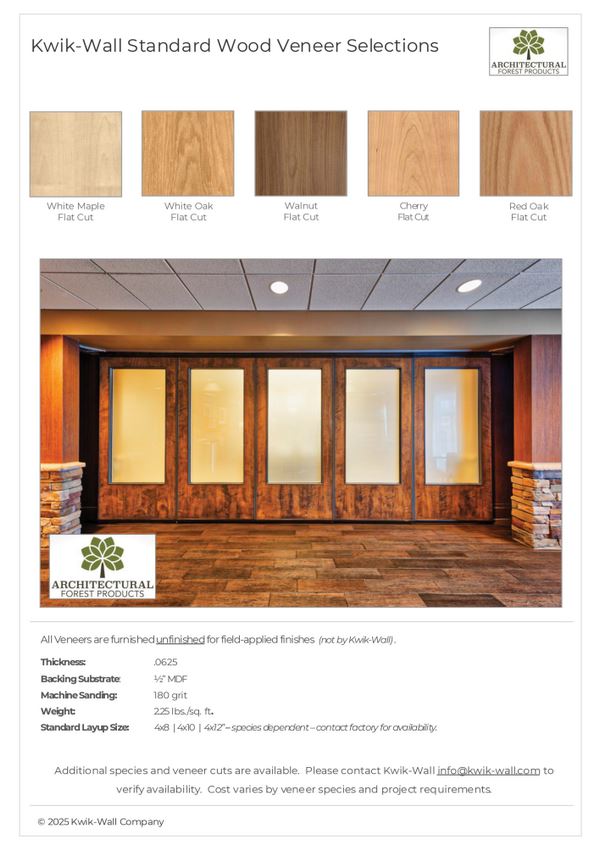

Note: HPL and Veneer Finishes require acoustic substrate application which affects STC options.
