Individual Panels - Operable Walls

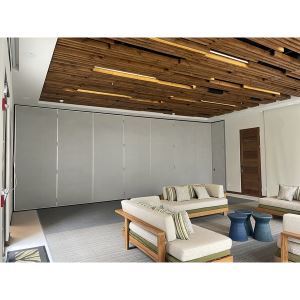

Advanced Equipment's individual panel system offers maximum configuration flexibility - move any panel to any position along the track for precise room division in any venue.

Every individual panel system is engineered to AEC's exacting standards for performance, longevity, and ease of use.

• Single-panel manual operation
• All-welded, all-steel construction (ALPHA & SIGMA)
• STC ratings up to 54
• Panel heights up to 60 feet (ALPHA series)
• Custom widths and finishes available
• Compatible with curved track configurations
• LEED qualifying construction
• Up to 20-year limited panel warranty (ALPHA)
• Field-tested NIC 42 ASTM E 336
• Acoustically absorptive options available (NRC 0.65)
• Customized remote panel storage

Individual panels enable customized remote storage for virtually any layout, providing maximum flexibility for complex and frequently changing room configurations. Panels are top-supported, manually operated, and independently suspended, each equipped with dual trolleys for smooth, reliable movement.

• Each panel moves independently for total layout flexibility
• Available in ALPHA, SIGMA, and GAMMA panel series
• Custom finish options including fabric, vinyl, wood veneer, and more

Precision placement and a panel series for every project type.

Individually movable panels enable customized remote storage for virtually any layout, providing maximum flexibility for complex and frequently changing room configurations.

Choose from ALPHA, SIGMA, or GAMMA panel construction to match your project's performance requirements and budget - all built to AEC's exacting standards.

All-welded steel construction means no loose fasteners, no panel flex, and a service life that matches the building itself - backed by industry-leading warranties.

Three distinct panel series - choose the right construction for your project's performance requirements and budget.

The all-welded, all-steel construction with heavy steel (16 or 14 gauge) faces robotically fusion welded every 8 inches to perimeter frame members.

• Best obtainable rigidity and life expectancy
• Low maintenance and ease of operation
• One piece panels to 60 feet high
• Panel widths to 60 inches
• 10 or 20 year limited panel warranty
• STC to 54, field tested NIC 42 ASTM E 336
• Available acoustically absorptive NRC 0.65
• Qualifies for LEED Credit MR 4.1 & MR 4.2

The cost-effective version of our ALPHA series panels. All-welded steel construction with face sheet thickness ranging from 20 ga. to 16 ga.

• Cost effective solution to durability
• One piece panels to 25 feet high
• Panel width to 54 inches
• 5 year limited warranty
• STC to 53, NIC to 42 E-336
• Qualifies for LEED Credit MR 4.1 & MR 4.2

AEC's most cost-effective panel construction. Panel face sheets are gypsum board or particle board. Structural aluminum frame members are mechanically fastened.

• Economical solution to space division needs
• One piece panels to 12 ft high
• Maximum panel height is 16 ft
• Panel widths to 48 inches
• STC from 45 to 52, NIC to 38 E-336
• Field replaceable face sheets
